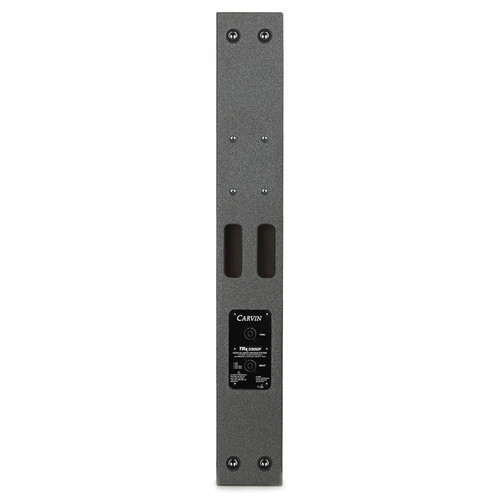

Carvin TRX3900F 3.5" x 9 Column Array Speakers with Fly Points - Pair

Part #:
TRX3900F
Model #:
TRX3900F
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Carvin Audio TRx3900F column array is a high-output, easy-to-carry sound reinforcement loudspeaker providing enhanced coverage with superb fidelity. Exclusively equipped with (9) 3.5" transducers, it’s designed for all genres of music and venues, ranging from small to large events.

Description

Carvin TRX3900F Column Array Speakers

The TRx3900F column array is a high output, easy to carry sound reinforcement loudspeaker providing enhanced coverage with superb fidelity. Exclusively equipped with 9 Carvin Audio 3.5-inch transducers, it’s designed for all genres of music and venues, ranging from small to large events. The Constant Delivery Dispersion “CDD™” projects to the rear of the venue while averaging levels up front and its wide 120º dispersion covers larger audiences. The 10º vertical dispersion substantially minimizes feedback in reverberant environments. The TRx3900F power is supplied by the TRx3118A subwoofer delivering 1000W, 500W into each TRx3900F, or by your own amplifier system. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™ finish, a polyurethane outer skin, provides UV and moisture protection. Projecting far into your audience, the TRx3900F delivers the most pleasant, unfatigued listening experience, and offers high intelligibility from a compact column

Features

  • System Type: 15" 2-way, Active Bass Reflex
  • Frequency Response: 54Hz - 18kHz (-10dB); 62Hz - 16kHz (-3dB)
  • Power: 1000W Program
  • Coverage Pattern: Main 90x60 Monitor 60x90
  • Sensitivity (1W/1m): 98dB
  • Maximum SPL: 130dB
  • Maximum Input Signal: +12dBu
  • LF: 15" Woofer 4 Ohms
  • HF: 1.74" 8 Ohms
  • Enclosure: Virgin polypropylene
  • Color: Black
  • Grill: Black powder coated 16-ga steel with cloth backing
  • Transport: 2 Recessed handles
  • Pole Mount: 1.38" pole mount cup with thumb screw
  • Suspension points: 3 points using M8-1.25 x 30mm
  • AC Mains Input: 100V-230V (50 - 60Hz)

Specifications

Dimensions (H x W x D) 35" (889 mm) x 5" (127 mm) x 5.5" (139.7 mm)
Net Weight (ea) 25 lbs (11.34 kg)
