K-Array KX12 Coaxial Passive Point Source/Linearray Speaker

Part #:
KX12
Model #:
KX12
Availability: Currently Unavailable.
Contact Us for Comparable Solutions. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Designed to be consistently unique like all the unique K-array products, the KX12 is a radical reinterpretation of a traditional coaxial 12” speaker.

Description

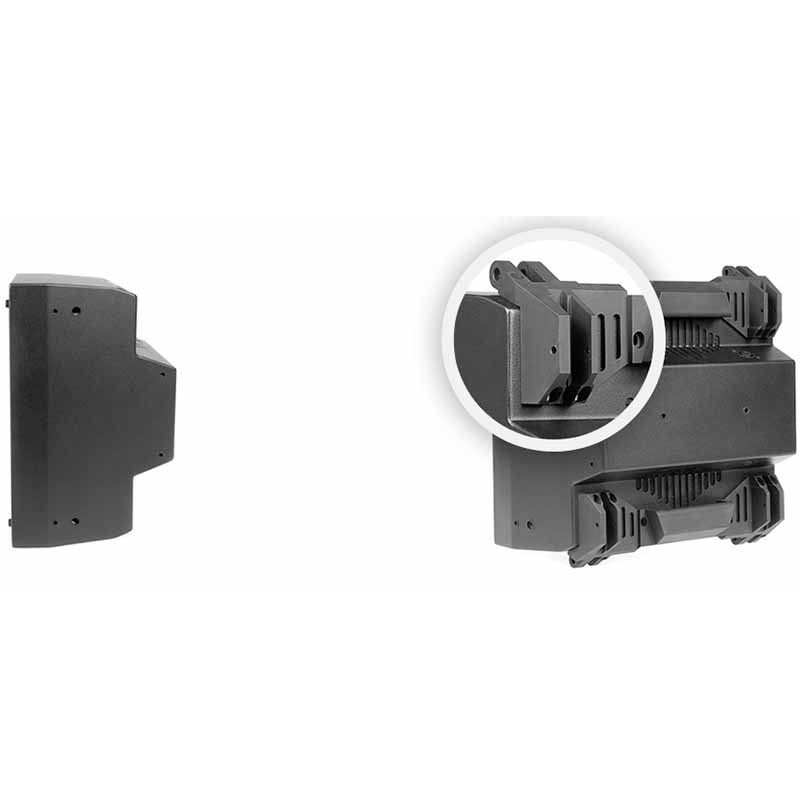

Designed to be consistently unique like all the unique K-array products, the KX12 is a radical reinterpretation of a traditional coaxial 12” speaker. Its compact shape and different accessories allow the KX12 to perform as a powerful audio point source or as part of a line array. When high pressure is needed in the foreground with a rapid depreciation once distanced from the source, the KX12 can meet this demand to become one of the most useful tools for an installer. Similar to the Firenze KH7, an asymmetric 100° by 30° horn with an adjustable orientation gives to the speaker an added value providing two modes of coverage to choose from to meet the needs of different installations. Additionally, dedicated accessories assist in the set up of joining, flying and stacking the speaker, making it a perfect line array component. Its steel chassis offers maximum rigidity in a minimum size. The speaker delivers a continuous SPL of 127 dB and has a frequency range of 120 Hz to 18 kHz. It is compatible with all K-array KMT subwoofers. All KX12’s components are designed by the K-array R&D department and custom-made under the K-array quality control system.

Features

  • Asymmetrical Horizontal and Vertical Coverage
  • Variable Angle Array Design
  • Stainless Steel Chassis
  • Customized Colors (Only Under Specific Request)

Specifications

Acoustics
Power Handling 800 + 200 W
Max Power 1200 W
Frequency Range (-3 dB) 120 Hz – 19 kHz
Impedance 8 Ω
SPL 1W/1mt 102 dB
Maximum SPL 127 dB (Cont.) – 133 dB (Peak)
Coverage
Horizontal 100°/30° (Depending on Horn Orientation)
Vertical 30°/100° (Depending on Horn Orientation)
Crossover
Type External Crossover Required
Frequency High Pass @ 120 Hz, 24 dB/oct Suggested Minimum
Transducers
Type 12” Neodymiun Magnet Woofer with 3” Voice Coil Neodymium Magnet Compression Driver with 2” Voice Coil
Power Audio Input/Output
Connector 2 x 4-Pin Speakon
Wiring 1+ 1- (Signal IN & Link ) 2+ 2- (Through)
Recommended Amplifiers
Type KMT18, KMT21, KMT218, KA84
Certification
IP 21
Physical
Dimensions (H x W x D) 13.4" (340.36 mm) x 12.6" (320.04 mm) x 7.9" (200.66 mm)
Net Weight 26.9 lbs (12.2 kg)
