CHAUVET DJ 4PLAY DMX LED Beam Effect System (Discontinued)

Description

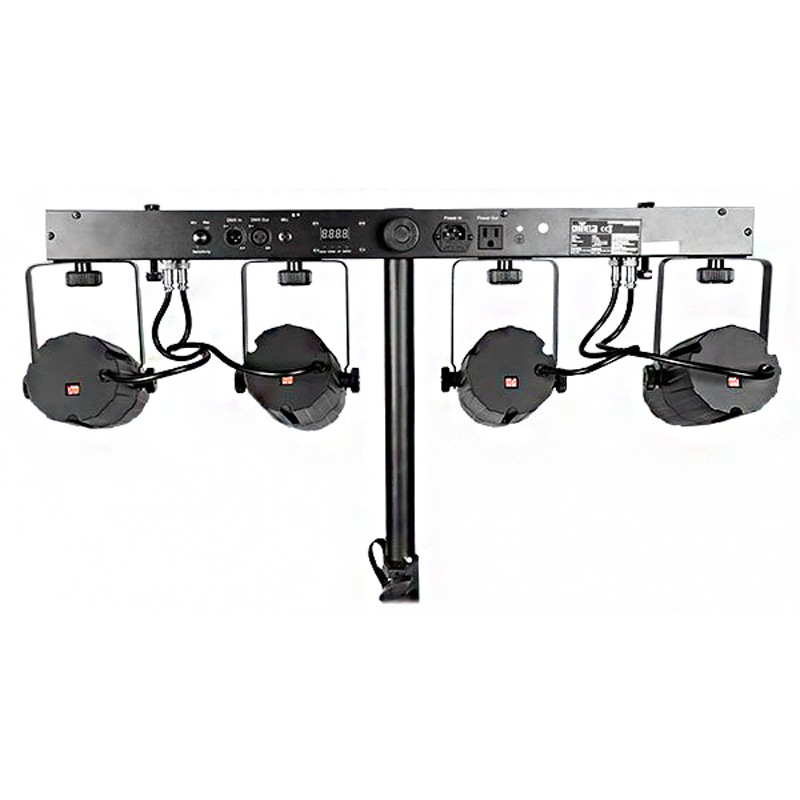

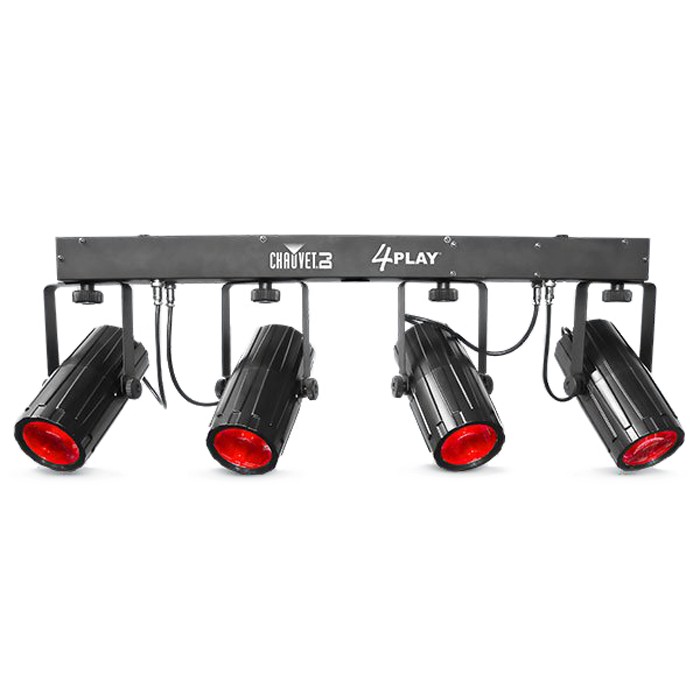

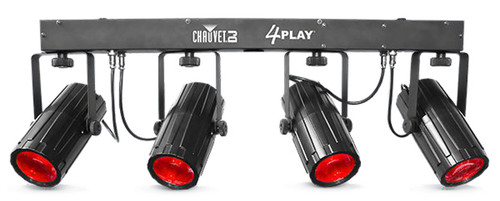

The 4PLAY provides a ready-to-go light bar for the entertainer on the go. The bar is fitted with four LED moonflowers each containing red, green, blue and white LEDs to produce razor-sharp rotating beams. The unit features 6-channels of DMX control with built-in automated and sound-activated programs. The 4PLAY fits onto most standard tripods, including speaker stands and the 4BAR tripod. And, it comes with a free travel bag. (Optional stand sold separately.)

Features

• Portable, RGBW LED effect light floods the room with beams
• Rotating, razor-sharp beams penetrate the air with no moving parts

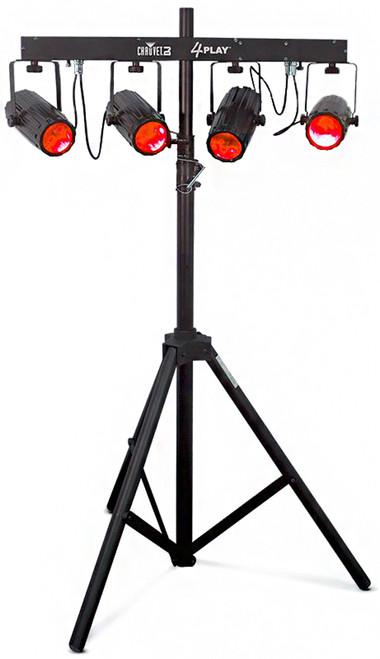

• Safely mounts to 4BAR™ as well as most tripods and speaker stands
• Save floor space by using the included bolts for truss mounting
• Achieve maximum room coverage by positioning each head independently
• Save time running cables and extension cords by power linking multiple units
• Sound-activated programs dance to the beat of the music
• Generate a synchronized show with easy-access to built-in automated programs in Master/Slave mode

Specifications

DMX Channels	6
DMX Connectors	3-pin XLR
Light Source	228 LEDs (48 red, 72 green, 72 blue, 36 white) 0.25 W (20 mA), 100,000 hours life expectancy
Strobe Rate	0 to 20 Hz
Coverage Angle	25° (per light)
Fits Tripod Size	1.3 to 1.5 in (33 to 38) mm
Power Linking	30 units @ 120 V; 46 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	12 W, 0.2 A @ 120 V, 60 Hz 19 W, 0.2 A @ 230 V, 50 Hz
Approvals	CE
Dimensions (H x W x L)	12.5" (318 mm) x 3.5" (89 mm) x 33" (838 mm)
Weight	12.7 lbs (5.7 kg)

DOCUMENTS

In The Box

• (1) 4PLAY

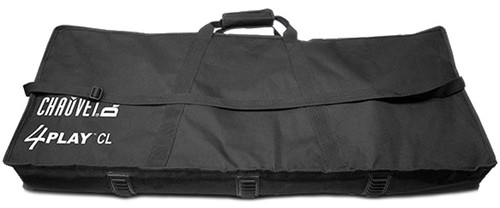

• (1) Transport Bag
• (1) Power Cable
• (1) Warranty Card
• (1) Quick Reference Guide
