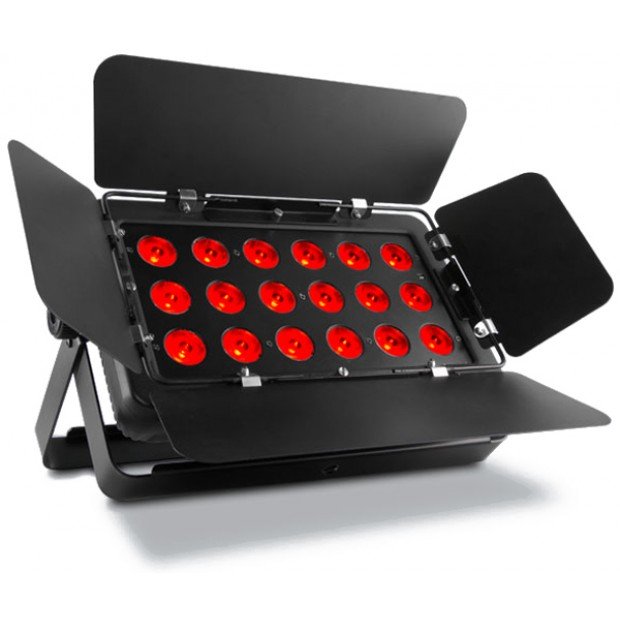

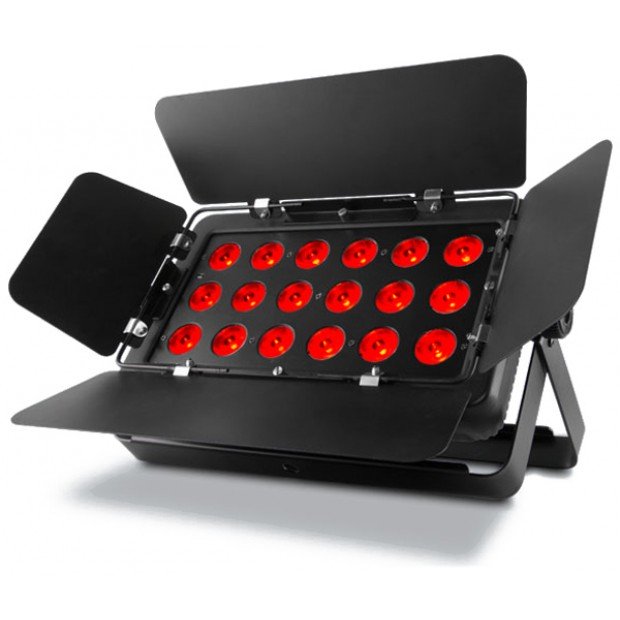

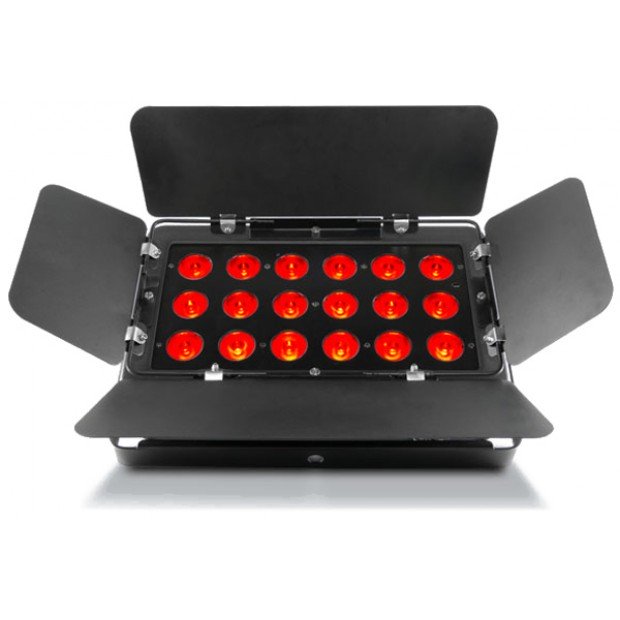

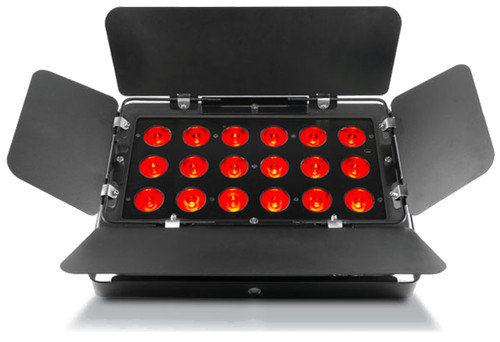

CHAUVET DJ SlimBANK T18 USB DMX LED Wash Light (Discontinued)

Description

SlimBANK T18 USB is a powerful wash light with 18 tri-color (RGB) LEDs that achieve smooth color mixing. Adjustable barn doors help direct and focus the light. Convenient control options include auto and sound-activation programs as well as DMX. USB compatibility provides fast and easy wireless options.

Features

• Versatile tri-color LED wash light with brilliant eye candy effects
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Direct light where it’s needed using the included and removable barn doors
• Generate complex looks easily with built-in, eye-catching auto programs with sectional control
• Access built-in automated programs via IRC-6 remote, Master/Slave or DMX
• Achieve smooth LED fading with built-in dimming curves
• Ideal for sound-sensitive environments due to the radiant cooling design
• Save time running extension cords by power linking multiple units
• Easily transports in the CHS-40 VIP Gear Bag

Specifications

Series	SlimBANK
Primary Use	DJ/Mobile, Bands/Stages, Events, Clubs, Party
DMX Channels	3, 5, 9 or 13
DMX Connectors	3-pin XLR
Light Source	18 LEDs (Tri-Color RGB) 3 W (1050 mA), 50,000 hours life expectancy
Strobe Rate	0 to 22 Hz
PWM Frequency	1.2 kHz
Beam Angle	17°
Field Angle	32°
Illuminance	4,120 lux @ 2 m
Power Linking	13 units @ 120 V; 24 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	53 W, 0.7 A @ 120 V, 60 Hz 51 W, 0.3 A @ 230 V, 50 Hz
Optional Controllers	IRC – 6, D-Fi USB
Approvals	CE
Dimensions (H x W x L)	10.2" (260 mm) x 2.1" (55 mm) x 15.5" (395 mm)
Weight	7.8 lbs (3.6 kg)

DOCUMENTS

In The Box

• (1) SlimBANK T18 USB DMX LED Wash Light
• (1) Barn Doors Set
• (1) Power Cord
• (1) Warranty Card
• (1) Quick Reference Guide
