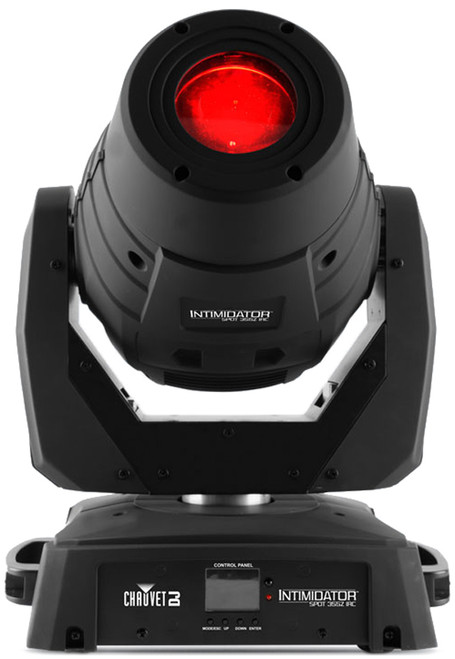

CHAUVET DJ Intimidator Spot 355Z IRC LED Moving Head Spot (Discontinued)

Description

The Intimidator Spot 355Z IRC is a brilliantly bright moving-head light with motorized focus and zoom for crisp gobo and beam changing effects. Seven already installed gobos plus the wedding 6-pack give you plenty of options for creating a unique look for every event. Master/Slave mode lets you create a beautiful light show quickly and easily. Built-in automatic programs along with move-in-black capability make programming with a CHAUVET® DJ DMX controller as easy as can be.

Features

• Exceptionally bright, 90W LED moving head spot designed for large events
• Motorized zoom for short-throw or long-throw applications
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Simple navigation and full text readout with the high-contrast, full-color LCD display
• Includes a FREE wedding-ready gobo pack that can be installed quickly and easily
• Works with the IRC-6 for wireless control and triggering
• Power link multiple units to save time running extension cords
• Easy-access gobo door allows for quick gobo changes without opening the fixture
• Emit crisp projections at almost any distance using the motorized focus
• 3-Facet rotating prism splits the beam for great effects and to cover a larger area
• Built-in effect macros and move-in-black feature minimizes programming time
• Activate built-in, automated and sound-activated programs, or control in DMX or Master/Slave mode
• Project light where you want it with user-selectable pan and tilt ranges
• Fits best in the CHS-50 VIP Gear Bag

Specifications

DMX Channels	9 or 15
DMX Connectors	3-pin XLR
Pan and Tilt	540° / 270°
Pan and Tilt Ranges	540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors	8 + white, split colors, continuous scroll at variable speeds
Gobos	7 + open (5 metal + 2 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Light Source	1 LED (white) 90W (3.2 A), 50,000 hours life expectancy
Strobe Rate	0 to 23 Hz
PWM Frequency	2 kHz
Illuminance	(10°): 35,225 lux @ 2 m (17°): 11,800 lux @ 2 m
Power Linking	4 units @ 120 V; 7 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	309W, 3.2 A @ 120 V, 60 Hz 283W, 1.6 A @ 230 V, 50 Hz
Gobo Size	24 mm outside, 20 mm image, 1.1 mm max thickness
Zoom Angle	10° to 17° (motorized)
Approvals	CE
Optional Controllers	IRC-6
Prism	3-facet round, static, bidirectional rotation at variable speeds
Dimensions (H x W x L)	18" (456 mm) x 9.7" (248 mm) x 13.4" (340 mm)
Net Weight	27.4 lbs (12.4 kg)

DOCUMENTS

In The Box

• (1) Intimidator Spot 355Z IRC LED Moving Head Spot
• (1) Wedding-Ready Gobo Pack
• (1) Hanging Bracket with Mounting Hardware
• (1) Power Cord
• Warranty Card
• Quick Reference Guide
