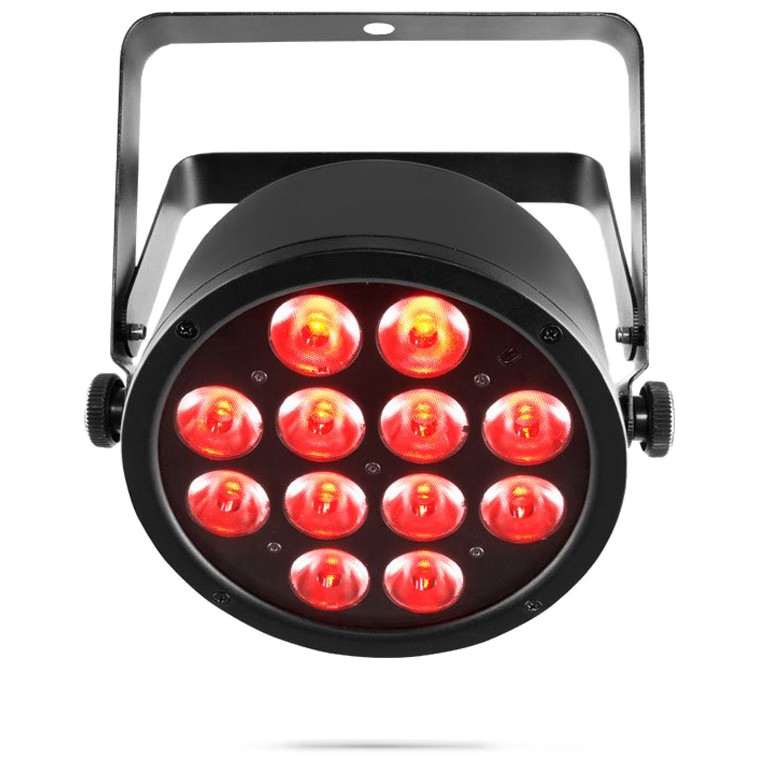

CHAUVET DJ SlimPAR T12 USB RGB LED PAR Wash Light

The CHAUVET DJ SlimPAR T12 USB is a high output tri-color (RBG) LED wash light with built-in D-FI USB compatibility to allow instant wireless control in DMX or master/slave mode. Tri-color LEDs virtually eliminate distractive multicolored shadows. The even, flicker-free output of this fixture makes it ideal for front light applications and use in video productions. The optional IRC-6 remote can be used to access automated programs, and control static colors.

Compact enough to fit inside truss sticks, SlimPAR T12 USB is best transported in the CHS-30 VIP Gear Bag.

Features

Features

Low-profile, high-output tri-color (RGB) LED Par
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
Slaves perfectly with other tri-color USB-series products including the 4BAR™ Tri USB
Nearly eliminate multicolored shadows with high-power, tri-color LEDs
Convenient access to RGB color mixing and static colors with or without DMX
Flicker-free operation suitable for on-camera use
Save time running cables and extension cords by power linking multiple units
Access built-in automated programs via IRC-6 remote, Master/Slave or DMX
Easily control static colors and automated programs with the optional IRC-6 remote
Fits best in the CHS-30 VIP Gear Bag
Compact design easily fits inside sticks of TRUSST®

Specification

DMX Channels	3 or 8
DMX Connectors	3-pin XLR
Light Source	12 LEDs (tri-color RGB) 3W (1 A), 50,000 hours life expectancy
Strobe Rate	0 to 20 Hz
PWM Frequency	1,200 Hz
Beam Angle	15°
Field Angle	29°
Illuminance	3,801 lux @ 2 m
Power Linking	14 units @ 120 V; 25 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	39 W, 0.6 A @ 120 V, 60 Hz 39 W, 0.3 A @ 230 V, 50 Hz
Approvals	CE
Optional Controllers	IRC-6, D-Fi™ USB
Dimensions (H x W x L)	9.9" (252 mm) x 3.3" (84 mm) x 8.9" (227 mm)
Weight	4.0 lbs (1.8 kg)
