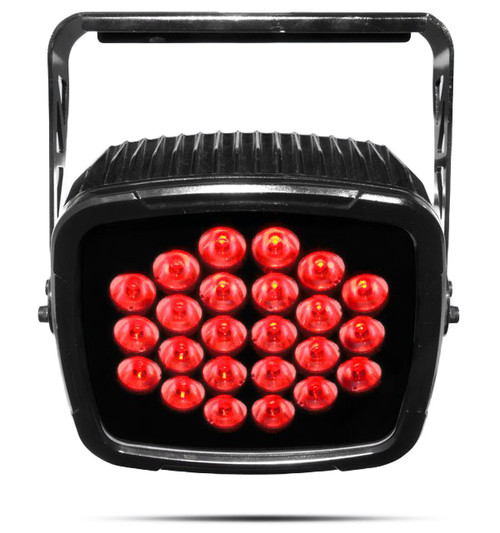

CHAUVET DJ SlimPANEL Tri 24 IP Indoor/Outdoor Tri Color LED Wash Light (Discontinued)

Description

Designed for worry-free lighting at indoor and outdoor events, SlimPANEL Tri 24 IP provides vibrant, saturated color wherever it is needed. This IP65-rated fixture is at home in just about any environment and can withstand the strongest rainstorms without having to be covered or brought inside out of the elements. Powered by 24 tri-colored LEDs, SlimPANEL Tri 24 IP projects a smooth, even wash onto nearly any surface and almost completely eliminates multi-colored shadows.

Features

• Outdoor-rated, tri-color LED wash light designed for any temporary outdoor event
• Weatherproof fixture perfect for outdoor parties or behind wet bars
• Alleviate the rush to set up and tear down in the rain
• Innovative, touch-sensitive digital display
• Eliminate internal humidity and pressure with the integrated GORE valve
• Reduce the need for extra extension cords with power and data linking outputs
• Robust housing repels water, snow, dirt, sand and salt for all-weather applications
• Flicker-free operation suitable for on-camera use
• Provides smooth and even coverage while nearly eliminating multicolored shadows
• Fits best in the CHS-40 VIP Gear Bag

Specifications

DMX Channels	3, 4, 5 or 9
DMX Connectors	3-pin XLR
Light Source	24 LEDs (tri-color RGB) 3W, (1,050 mA), 50,000 hours life expectancy
Strobe Rate	0 to 27 Hz
PWM Frequency	300 Hz
Beam Angle	20°
Field Angle	34°
Illuminance	5,850 lux @ 2 m
IP Rating	IP65
Power Linking	6 units @ 120 V; 12 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	82W, 1.2 A @ 120 V, 60 Hz 81W, 0.7 A @ 230 V, 50 Hz
Approvals	CE, MET
Startup Temperature	-4 °F to 113 °F (-20 to 45) °C
Operating Temperature	-22 °F to 113 °F (-30 to 45) °C
Dimensions (H x W x D)	10.5" (268 mm) x 11.9" (301 mm) x 5.3" (134 mm)
Weight	13.8 lbs (6.2 kg)

DOCUMENTS

In The Box

• (1) SlimPANEL Tri 24 IP Light
• (1) Power Cord
• (1) DMX (in) Adaptor
• (1) DMX (out) Adaptor
• (1) Quick Reference Guide
• (1) Warranty Card
