Church Fellowship Hall Sound System with 6 SP8 SoundPlane Ceiling Speakers, 240W Bluetooth Mixer Amplifier and Volume Control

Part #:
CHSS-6SP8RMA240BT
Model #:
CHSS-6SP8RMA240BT
Availability: Some Components are Backordered - Contact Us for Comparable Solutions Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This church fellowship hall sound system features six Pure Resonance Audio SP8 SoundPlane drop ceiling tile speakers, a 240W Bluetooth mixer amplifier, and a Lowell 200W wall-mounted volume control. Ideal for fellowship halls, dining areas, church kitchens, cafeterias, and multipurpose rooms, it provides distributed background music, clear speech reproduction, wireless audio streaming, and convenient volume adjustments.

Description

Inside the Design

This system provides clear, evenly distributed background music and speech reproduction throughout church fellowship halls, dining areas, cafeterias, church kitchens, banquet rooms, and multipurpose gathering spaces. Featuring six Pure Resonance Audio SP8 SoundPlane low-profile 8" ceiling tile speakers, the Pure Resonance Audio RMA240BT 240W Bluetooth mixer amplifier, and a Lowell 200LVC wall-mounted volume control, this system offers a practical solution for everyday church activities, fellowship events, meetings, and announcements. The amplifier's built-in Bluetooth allows convenient wireless music streaming from compatible devices, while the wall volume control makes it easy to adjust listening levels without accessing the amplifier.

This system uses a 70V distributed audio configuration to power all six ceiling speakers from a single amplifier. Each SP8 fits directly into standard 2' x 2' suspended ceiling grids and features selectable transformer taps for flexible output adjustment. Setting all six speakers to 10W creates a combined 60W load on the 240W amplifier, while 5W taps provide a lower-output option for quieter background music applications. The Lowell 200LVC controls the volume of the entire connected speaker zone, and the amplifier's additional audio inputs allow integration with compatible microphones or an existing church sound system using appropriate connections. Speaker wire and safety cables are included for installation. Final speaker placement and tap settings should be determined based on room size, ceiling height, and desired listening levels.

Key System Features

  • Complete church fellowship hall sound system for background music, speech, and announcements in dining halls, cafeterias, banquet rooms, and multipurpose spaces
  • Six Pure Resonance Audio SP8 SoundPlane ceiling tile speakers provide distributed sound coverage throughout the listening area
  • Each SP8 features an 8" full-range driver with a secondary high-frequency cone for clear music and speech reproduction
  • Ultra-low-profile 3.9" speaker design fits standard 2' x 2' suspended ceiling grids without cutting existing ceiling tiles
  • Selectable 70V transformer taps of 1.3W, 2.5W, 5W, and 10W allow flexible speaker output adjustment
  • Six speakers set to 10W create a combined 60W load on the 240W amplifier, with 5W taps available for lower-output applications
  • Pure Resonance Audio RMA240BT 240W Class D mixer amplifier delivers reliable power for commercial 70V speaker installations
  • Built-in Bluetooth streaming, USB and TF card playback, FM tuner, and included IR remote provide convenient music source options
  • Four microphone inputs, two AUX inputs, and a priority emergency input support additional audio sources and future paging applications
  • Lowell 200LVC 200W wall-mounted volume control provides convenient listening level adjustments for the entire connected speaker zone
  • Suitable for standalone use or integration with an existing church audio system through compatible line-level connections

About the System Components

Pure Resonance Audio SP8 SoundPlane 2x2 Low-Profile 8" Ceiling Tile Speaker

The Pure Resonance Audio SP8 SoundPlane is a low-profile, full-range ceiling tile speaker designed for background music, speech reinforcement, and paging in churches, offices, schools, and commercial environments. Featuring an 8" treated paper cone driver with a secondary high-frequency cone, the SP8 delivers clear, balanced audio for distributed speaker applications. Its fully enclosed steel backbox, white frameless front panel, and perforated grille provide a discreet appearance that blends naturally into suspended ceilings. With a mounting depth of only 3.9", the speaker drops directly into standard 2' x 2' ceiling grids without cutting existing tiles, making it suitable for spaces with limited overhead clearance. The SP8 offers 20W RMS power handling at 8Ω, 92 dB sensitivity, and a frequency response of 200 Hz to 16 kHz. A built-in transformer provides selectable 70V taps of 1.3W, 2.5W, 5W, and 10W, along with 100V operation and an 8Ω bypass option. A Phoenix-style pluggable terminal connection and included safety cable support convenient, secure installation.

Pure Resonance Audio RMA240BT 240W Commercial Rack Mount Mixer Amplifier with Bluetooth

The Pure Resonance Audio RMA240BT is a versatile 240W Class D commercial rack mount mixer amplifier designed for background music, paging, and public address applications in churches, schools, restaurants, and other commercial environments. Offering selectable 4-16Ω and 70V speaker output operation, the amplifier provides flexible compatibility with distributed ceiling speaker systems. Its built-in multimedia player supports Bluetooth wireless audio streaming, USB and TF card playback, and FM radio, while the included IR remote allows convenient control of playback functions. Four microphone inputs, two AUX inputs, and a priority emergency input provide flexible connectivity for microphones, music sources, and compatible external audio equipment. Individual channel volume controls, master volume adjustment, and bass and treble controls allow users to tailor sound levels to different activities. The compact 1U rack-mountable chassis features variable-speed fan cooling and protection against overheating, overload, and short circuits. Line-level inputs also support integration with an existing church mixer or audio distribution system using appropriate external signal connections.

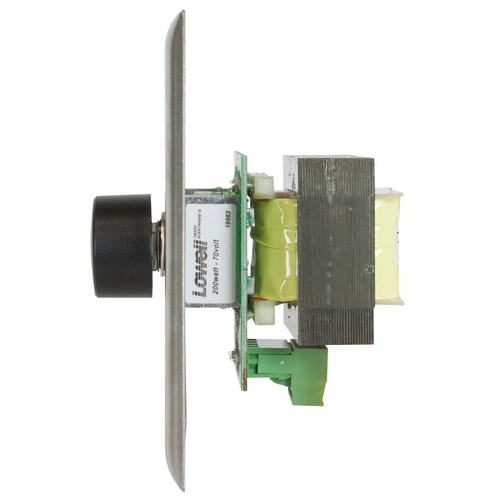

Lowell 200LVC 200W Stainless Steel 2-Gang 70V Volume Control

The Lowell 200LVC is a 200W wall-mounted mono autoformer volume control designed for 70V distributed speaker systems in churches, schools, offices, and commercial facilities. It provides convenient local volume adjustment for a connected speaker zone without requiring access to the amplifier. The rotary control offers 3 dB attenuation steps, with two additional 6 dB steps before the off position, allowing precise listening level adjustments for different room activities. Its durable stainless steel two-gang wall plate provides a professional appearance and long-lasting performance in frequently used spaces. Phoenix-style pluggable screw terminals simplify connections between the amplifier and speaker line, while the autoformer design maintains compatibility with properly configured 70V speaker loads. The Lowell 200LVC mounts in a standard two-gang electrical box with a minimum depth of 2.5", making it a practical volume control solution for fellowship halls and other shared church spaces.

Features

Pure Resonance Audio SP8 SoundPlane 2x2 Low-Profile 8" Ceiling Tile Speaker

  • 8" full-range treated paper cone driver with secondary high-frequency cone for clear music and speech reproduction
  • Low-profile 3.9" mounting depth accommodates suspended ceilings with limited clearance
  • Designed to drop into standard 2' x 2' ceiling tile grid openings without cutting or modifying ceiling tiles
  • Approximately 20' x 20' or 400 sq ft of audio coverage per speaker under suitable installation conditions
  • 20W RMS power handling at 8Ω with a 200 Hz to 16 kHz frequency response and 92 dB sensitivity
  • Built-in transformer with selectable 70V taps of 1.3W, 2.5W, 5W, and 10W, plus 8Ω bypass
  • Fully enclosed steel backbox, white frameless grille, and Phoenix-type pluggable terminal block
  • Integrated safety hook and included safety cable support secure suspended ceiling installation

Pure Resonance Audio RMA240BT 240W Commercial Rack Mount Mixer Amplifier with Bluetooth

  • 5-channel commercial rack mount mixer amplifier delivers 240W of rated Class D power
  • Selectable 4-16Ω or 70V speaker output supports low-impedance and distributed audio installations
  • Built-in Bluetooth, USB and TF card media playback, and FM tuner provide flexible audio source options
  • Four microphone inputs, two AUX inputs, and one priority emergency input accommodate multiple audio sources
  • Individual channel volume controls, master volume, bass, and treble adjustments provide flexible sound management
  • Compact 1U rack-mountable chassis features forced-air cooling with a variable-speed fan
  • Overheat, overload, and short-circuit protection with front-panel status indicators
  • Includes an IR remote control for convenient multimedia playback operation

Lowell 200LVC 200W Stainless Steel 2-Gang Volume Control

  • 200W mono autoformer attenuator designed for 70V distributed speaker systems
  • Controls the listening level of a single speaker line or multiple connected speakers
  • Rotary volume adjustment with 3 dB attenuation steps and two 6 dB steps before off
  • Stainless steel two-gang wall plate provides a durable, corrosion-resistant finish
  • Phoenix-style pluggable screw terminals simplify amplifier and speaker line connections
  • Accepts speaker wire up to 14 AWG for flexible installation
  • Mounts in a standard two-gang electrical box with a minimum depth of 2.5"
  • ETL listed to UL60065 and UL2043 standards

System Includes

  • (6) Pure Resonance Audio SP8 SoundPlane 2x2 Low-Profile 8" Drop Ceiling Tile Speakers
    • (6) Safety Cables (1 per speaker)
    • User Manuals
  • (1) Pure Resonance Audio RMA240BT 5-Channel 240W Commercial Rack Mount Mixer Amplifier with Bluetooth 4Ω/70V
    • (1) IR Remote Control
    • (1) AC Power Cord
  • (1) Lowell 200LVC 200W Stainless Steel 2-Gang 70V Volume Control
    • (1) Stainless Steel 2-Gang Wall Plate
  • (500ft) 16/2 Plenum Audio Speaker Wire - Black
