Inside the Design
This church outdoor sound system is designed to deliver clear, high-quality background music, speech, and sermon reinforcement to outdoor areas such as church lawns, gardens, walkways, and gathering spaces. Equipped with four Bose FreeSpace 360P Series II environmental loudspeakers and the Pure Resonance Audio MA120BT 120W Bluetooth mixer amplifier, this system provides full 360° audio coverage with reliable wireless streaming and simple operation. Whether used as a standalone system or connected to an existing sanctuary setup, it enhances your church grounds by providing clear, uniform audio for guests and congregation members before and after services.
Sound System Features:
- Bose 360° outdoor speakers deliver clear, high-quality background music and speech reproduction
- Speakers can be installed above ground or in-ground for seamless landscape integration
- Ideal for extending your church sound system to outdoor areas
- Simple, user-friendly setup with Bluetooth audio streaming
- MA120BT 7-channel mixer amplifier supports Bluetooth, USB, SD, and FM media playback
- 120W commercial-grade power suitable for distributed 70V church audio systems
- Includes a 100W Decora-style wall-mounted volume control for convenient audio adjustment
About the System Components
Bose FreeSpace 360P Series II Environmental Loudspeakers
The Bose FreeSpace 360P Series II is a full-range environmental loudspeaker designed to blend naturally into outdoor landscapes. Suitable for above-ground or in-ground installation, it delivers uniform 360° horizontal coverage and a frequency range that extends down to 60 Hz. Its rugged, weather-resistant enclosure makes it ideal for churches that want to provide consistent, high-quality outdoor audio in gardens, courtyards, walkways, or fellowship gathering areas.
Pure Resonance Audio MA120BT 7-Channel Bluetooth Mixer Amplifier
The Pure Resonance Audio MA120BT is a compact 7-channel, 120W Bluetooth mixer amplifier designed for flexible, small to medium church audio installations. Featuring Bluetooth streaming, an MP3 media player with USB/SD inputs, FM radio, and multiple mic/line inputs, it accommodates a wide range of audio sources. With a frequency response of 60 Hz-15 kHz, <0.5% THD, and a high signal-to-noise ratio (Line ³85 dB; Mic ³72 dB), it delivers clean and reliable performance. The passive cooling design ensures quiet operation with no fan noise. Built-in protection safeguards against short-circuit, overload, overheating, and clipping. Supporting 70V, 100V, 4½, and 8½ speaker outputs and featuring a compact shelf-mount form factor, the MA120BT is ideal for church outdoor systems requiring multiple inputs and flexible output options.

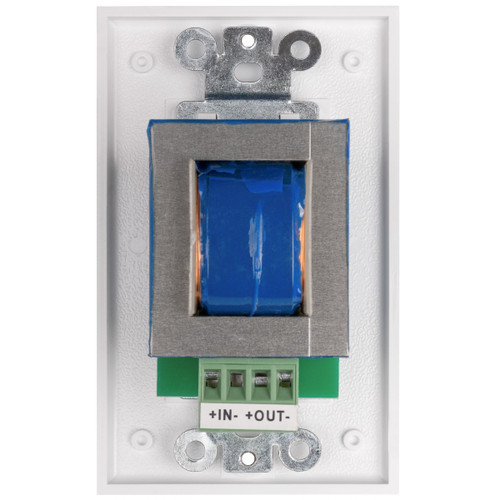

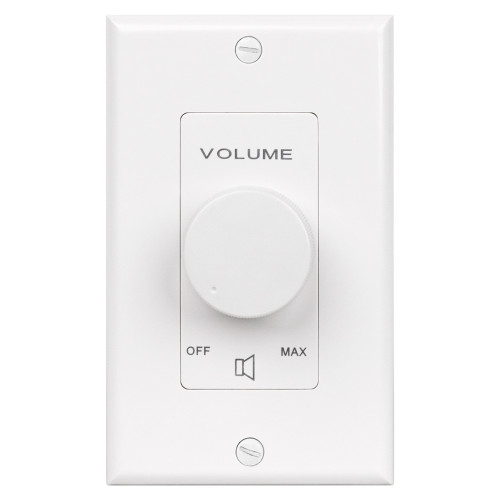

Pure Resonance Audio VC100W Volume Control
The Pure Resonance Audio VC100W is a 100W white Decora-style 70V volume control designed for commercial distributed audio systems. It provides smooth, precise volume adjustment for church outdoor areas, allowing easy user control without accessing the amplifier directly. Its clean and durable design integrates seamlessly into standard wall plates for a professional appearance.
