Church Sound System with 8 SD4 Ceiling Speaker Arrays with Soundcraft Ui16 Digital Mixer and Crown CDi 1000 Power Amplifier

Inside the Design

This complete installed church sound system delivers outstanding speech intelligibility, musical clarity, and full room coverage throughout your sanctuary. Featuring eight SD4 SuperDispersion ceiling speaker arrays, this system provides seamless 360 degree dispersion, ensuring consistent audio across the entire listening area. The SD4 arrays drop directly into standard 2 x 2 ceiling tile openings for a clean, architecturally friendly installation. This all inclusive bundle includes a Soundcraft Ui16 digital mixer, Crown CDi 1000 power amplifier, AtlasIED AP S15A power conditioner, Sennheiser XSW2 wireless systems, Pure Resonance Audio UC1S dynamic microphones, a Samson CM20P podium microphone, boom stands, a rack, and all required cables. Designed for Houses of Worship seeking high-quality sound reinforcement with flexible digital control, this system delivers professional performance for sermons, music, and spoken word.

Sound System Features:

• Complete installed sanctuary sound system featuring eight SD4 ceiling speaker arrays for 360 degree audio coverage
• Exceptional clarity for speech and music with improved intelligibility throughout the worship space
• SD4 drop tile design installs in minutes and integrates seamlessly into standard church ceilings
• Digital mixing via Soundcraft Ui16 allows wireless control from tablets, smartphones, and computers
• Crown CDi 1000 power amplifier provides clean, reliable amplification with built in DSP
• AtlasIED AP S15A provides professional power conditioning and surge protection for system stability
• Sennheiser XSW2 wireless handheld and lavalier systems ensure clear, dependable vocal reinforcement
• Includes UC1S dynamic microphones, Samson CM20P podium mic, boom stands, cables, and accessories for a fully equipped installation
• Ideal for churches seeking a high performance, easy to operate sanctuary sound solution

About the System Components

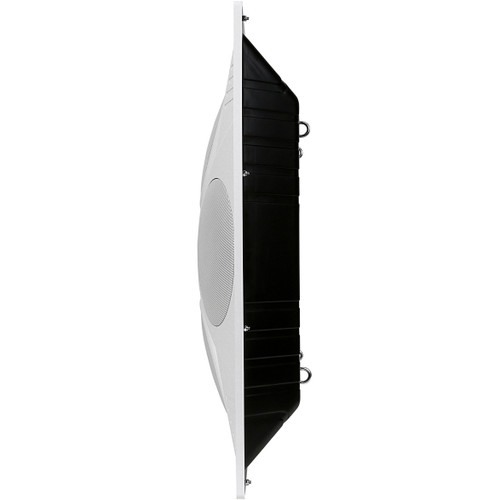

Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Array

The SD4 uses four high speed 6.5 inch aluminum woofers to deliver excellent transient response, improved clarity, and punchy low end. With 360 x 180 degree coverage, speech and music are evenly distributed throughout the sanctuary. The infinite baffle design drops into a standard 2 x 2 ceiling grid, and the sealed metal backbox ensures optimal acoustic performance. Designed to overcome the limitations of conventional 2 way ceiling speakers, the SD4 enhances intelligibility and creates a more natural listening environment.

Soundcraft Ui16 Remote Controlled Digital Mixer

The Soundcraft Ui16 offers wireless digital mixing from any device, with up to ten users connecting simultaneously. It includes world class Harman processing such as dbx AFS2, DigiTech amp modeling, and Lexicon effects. Each channel provides comprehensive processing including parametric EQ, high pass filtering, compression, and noise reduction. This mixer gives worship teams modern, flexible control over every aspect of the audio system.

Crown CDi 1000 Power Amplifier

The Crown CDi 1000 delivers clean, powerful amplification for installed audio systems. Supporting 2, 4, 8 ohm loads as well as 70V and 140V distributed systems, it is highly versatile for sanctuary applications. Built in DSP includes EQ, crossovers, limiting, delay, and a subharmonic synthesizer. Crown’s advanced protection circuitry ensures long term reliability and safeguards your equipment from overloads or electrical faults.

AtlasIED AP-S15A 15A Power Conditioner and Distribution Unit

The AP S15A provides professional grade surge protection and filtering to prevent noise, interference, and electrical spikes from affecting your system. Designed to guard against RFI, EMI, unstable AC voltage, and high energy transients, this unit helps protect your entire installation and prolong equipment life.

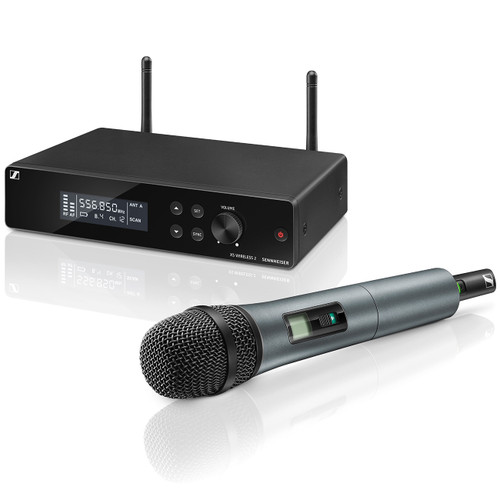

Sennheiser XSW2-835 Vocal Wireless Handheld System

This wireless handheld microphone system combines Sennheiser’s acclaimed e835 capsule with a true diversity UHF receiver for reliable performance. With twelve available channels, automatic frequency coordination, and a rugged metal chassis, it delivers excellent audio quality for worship vocals and spoken word.

Sennheiser XSW2-ME2 Vocal Wireless Lavalier System

The XSW2-ME2 provides discreet, hands free speech reinforcement via the ME2 lavalier microphone and compact bodypack transmitter. Like the handheld version, it features a metal receiver, external antennas, and auto frequency management, making it ideal for pastors, presenters, and ministry leaders.

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphones

The UC1S is a rugged dynamic microphone built for vocal clarity in worship environments. Its cardioid pickup pattern reduces background noise while its tailored frequency response enhances vocal presence. A heavy duty housing, steel mesh grille, SwitchCraft connector, and internal pop filter ensure durability and consistent performance.

Samson CM20P Gooseneck Podium Microphone

The Samson CM20P provides articulate speech pickup with a flexible 20 inch gooseneck and cardioid condenser element. A selectable high pass filter reduces low frequency noise, and the included flange mount allows easy podium installation.

Samson BL3VP Boom Stand and Cable 3-Pack

This bundle includes three collapsible tripod boom stands, three 18 foot XLR cables, and a nylon carry case, making it easy to outfit multiple vocal or instrument positions on stage.

Pure Resonance Audio SD4 SuperDispersion Ceiling Speakers

• SuperDispersion technology provides 360 by 180 degree omnidirectional coverage
• Engineered for clear voice, paging, and full range music applications
• Infinite baffle design drops directly into standard 2 x 2 ceiling tile openings
• Delivers 160 watts at 8 ohms or 64 watts on 70V systems
• Features four 6.5 inch high compliance aluminum woofers with ported bass response and high frequency dome tweeters
• Fire retardant ABS housing can be painted to match interior décor
• Adjustable impedance with built in 70V transformer providing 4, 8, 16, 32, and 64 watt taps
• Acoustically engineered sealed metal backbox enhances sonic performance
• Includes safety cable kit for secure installation



Soundcraft Ui16 Remote Controlled Digital Mixer

• Remote controlled digital mixer operable via tablet, PC, or smartphone
• Integrated Wi-Fi for direct wireless control with no external router needed
• Compatible with iOS, Android, Windows, Mac OS, and Linux devices
• Supports up to ten simultaneous control devices
• Legendary Harman processing including dbx, DigiTech, and Lexicon effects
• Fully recallable remote controlled mic preamps
• Input processing includes 4 band parametric EQ, high pass filter, compressor, de esser, and noise gate
• All outputs include 31 band graphic EQ, noise gate, and compressor
• Real Time Frequency Analyzer available on all inputs and outputs
• Three Lexicon FX engines offering reverb, delay, and chorus
• Subgroups, mute groups, view groups, and additional routing tools
• Show and snapshot recall with channel safes and security lockout
• Two channel USB playback and recording



Crown CDi 1000 Power Amplifier

• Versatile amplifier rated for 2, 4, and 8 ohm loads as well as 70V and 140V distributed systems
• Switch mode universal power supply for efficient and reliable operation
• Front panel LCD screen allows intuitive configuration and monitoring
• Built in DSP includes crossovers, EQ, delay, and output limiting
• Supports up to twenty user defined DSP presets for quick recall

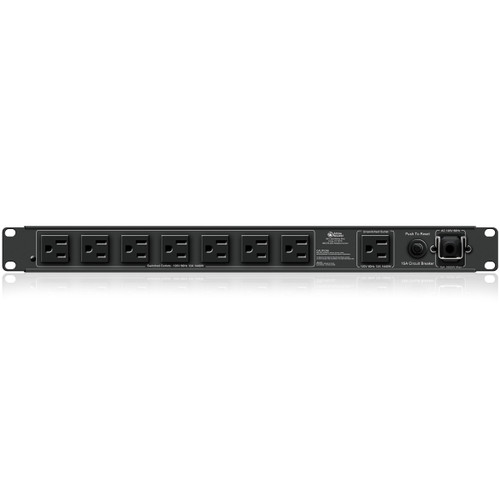

AtlasIED AP-S15A 15A Power Conditioner and Distribution Unit

• Nine total AC outlets for powering multiple components
• Eight rear outlets including seven switched and one unswitched
• One front panel unswitched outlet for convenience
• Integrated RFI and EMI filtering reduces electrical noise
• 15 amp circuit breaker protection
• Surge suppression up to 6000 volts
• Includes removable 12 foot IEC power cord



Sennheiser XSW2-835 Vocal Wireless Handheld System

• Delivers excellent live sound using Sennheiser’s evolution microphone capsule
• True diversity receiver housed in durable metal casing
• External antennas provide improved RF stability
• Automatic frequency management and remote synchronization for fast setup
• Tunable across a wide UHF frequency range
• Rackmount kit included for permanent installation
• Operates with up to twelve compatible channels



Sennheiser XSW2-ME2 Vocal Wireless Lavalier System

• Discrete clip on lavalier microphone with compact bodypack transmitter
• True diversity receiver with rugged metal housing
• External antennas ensure stable RF performance
• Automatic frequency management and one touch synchronization
• Tunable across a wide UHF frequency range (548 to 572 MHz)
• Includes rackmount kit for fixed installation
• Supports up to twelve compatible channels



Pure Resonance Audio UC1S Ultra Clear Dynamic Vocal Microphones

• Heavy duty housing built for long term durability
• Internal wind and breath pop filter reduces unwanted noise
• Reliable, quiet on and off switch
• Steel mesh grille for added protection
• Professional SwitchCraft connector ensures dependable signal transfer
• Vocal tailored frequency response with presence enhanced midrange
• Cardioid pickup pattern isolates the primary sound source and minimizes background noise
• Includes break resistant stand adapter
• Frequency range of 50 Hz to 16 kHz
• Suitable for indoor and outdoor use



Samson CM20P Gooseneck Podium Microphone

• Professional condenser microphone element
• Cardioid pickup pattern for focused speech capture
• 20 inch flexible gooseneck with top and bottom articulation
• Selectable internal high pass filter
• XLR connector for easy integration
• Includes flange mount for podium installation
• Multi stage windscreen reduces wind and breath noise
• Operates on 9 to 52 volt phantom power



Samson BL3VP Boom Stand and Cable 3-Pack

• Three lightweight collapsible tripod boom microphone stands
• Three 18 foot gold plated XLR microphone cables
• Durable nylon carry case for transport and storage

• (8) Pure Resonance® Audio SD4 SuperDispersion® Ceiling Speakers
• (1) Soundcraft Ui16 Remote Controlled Digital Mixer
• (1) Crown CDi 1000 Power Amplifier
• (1) AtlasIED AP-S15A 15A Power Conditioner and Distribution Unit
• (1) Sennheiser XSW2-835 Vocal Wireless Handheld System
• (1) Sennheiser XSW2-ME2 Vocal Wireless Lavalier System
• (3) Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphones
• (1) Samson CM20P Gooseneck Podium Microphone
• (1) Samson BL3VP Boom Stand and Cable 3-Pack
• (1) Middle Atlantic RK10 10U 16" Deep Equipment Rack

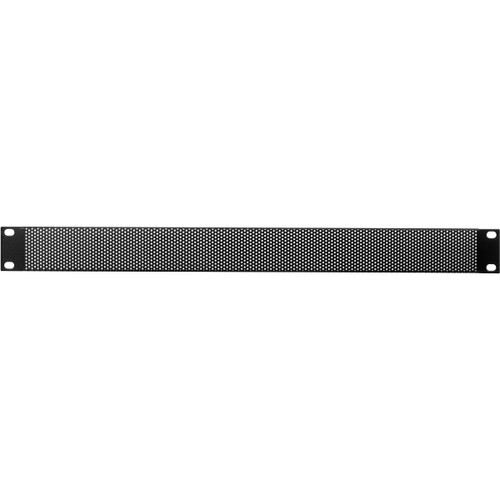

• (1) Middle Atlantic VTF1 1U Vented Blank Panel
• (25 pk) Middle Atlantic HPS Rackscrews

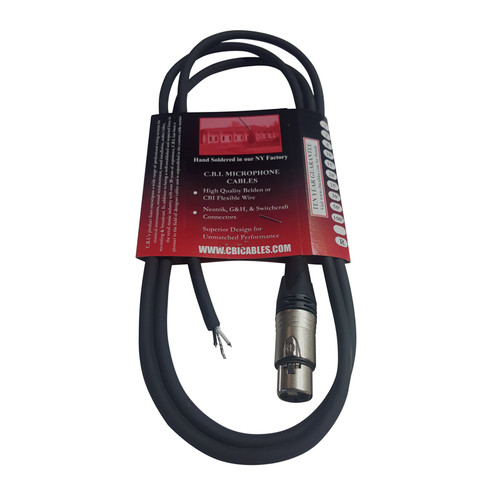

• (2) Pure Resonance Audio XLRF-3-PREP Female XLR to Prep Patch Cables - 3ft
• (1) Pure Resonance Audio XLR-50 Microphone Cable - 50ft
• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Gray
