Classroom Sound System with Listen Tech ListenPoint IR System and 2 Bose DS 40SE Wall Mount Loudspeakers (Discontinued)

This Listen Tech ListenPoint Classroom Amplification System with Bose DS 40SE Loudspeakers is a perfect audio system solution package for classrooms, corporate training rooms and any venue where single or multi-room wireless communication is required.

The Bose® FreeSpace DS 40SE is the most versatile member of the DS loudspeaker family. It is a high-performance, full-range, surface-mount loudspeaker designed for foreground and background music and speech reproduction in a wide range of installed applications.The DS 40SE features high output and 125° x 125° coverage pattern with a frequency range down to 70 Hz.

The Listen Tech C2 ListenPoint Control Unit is the heart of a ListenPoint system offering two audio inputs. It's simple and easy for teachers with one, intuitive control for adjusting volume. Active audio sources are automatically selected so teachers can either use the single control on the control unit or on the M1 microphone to change volume - SIMPLE! The Control Unit connects to the Room Module using a single Cat-5e cable. Extensive customization of system through password protected front panel or via USB port. The backlit, tilting LCD is easy to read and displays the status of all microphones on the system including battery level. The C2 delivers outstanding performance on a budget. Designed to blend into any room, the control unit can be wall, desk or rack mounted.

The Listen Tech R12 ListenPoint Room Module (RM) provides DSP customized audio processing, speaker amplification and extensive connection to external devices permitting system designers to optimize the learning sound environment. It mounts in the ceiling of the classroom and provides a single point of connection to: C2 or C6 control units via a single Cat-5e cable; four speakers; two expansion sensors; school paging system; integrated assistive listening transmitter; and external devices. The single Cat-5e cable significantly reduces cable clutter. The system can be integrated and controlled by external audio-visual equipment through the Listen Bus that offers RS-485 or RS-232 bidirectional control. The R12 has extensive DSP equalization that enables precise audio customization resulting in the best possible sound quality. The paintable surface (except the sensor lens) snaps into a supplied mounting platform and has a cable cover that hides the cables.

The Listen Tech LPT-M1 ListenPoint Microphone/Media Interface Kit (M1) is a wireless microphone used by teachers and students so they can clearly be heard by everyone in the classroom. It has the ability to interface  to external sources wirelessly such smart phones and lap top computers. It offers exceptional audio quality, ease of use and years of dependable service. The intuitive design allows the user to control volume. The M1 uses advanced lithium ion battery technology and intelligent battery management to maximize battery life, minimize battery charging time and increases the time between battery replacements. The included drop-in charger makes charging simple and fast.

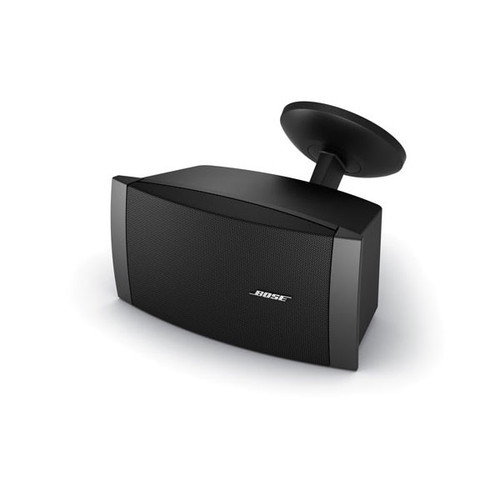

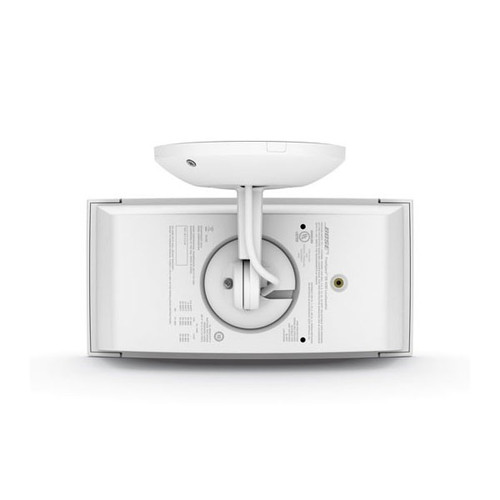

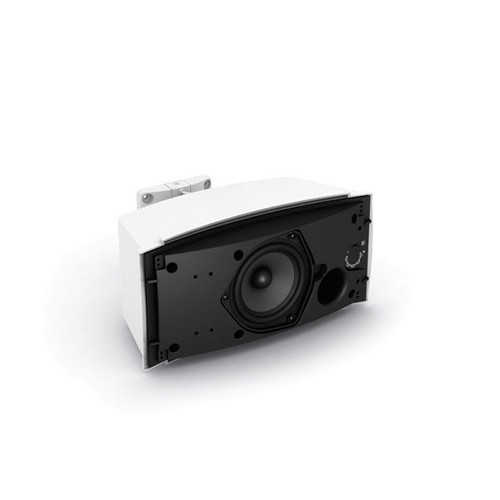

Bose® FreeSpace® DS 40SE Wall Mount Loudspeaker

• Full-range loudspeaker with a single 4.5" (114 mm) full-range driver in a ported enclosure designed for surface mounting in foreground and background music and paging applications
• Simple 1->2->3 installation system. Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw
• Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap settings from under front end cap
• Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40, and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
• Supported by a suite of accessories, including wall-mount bracket, ceiling-mount bracket, pole-mount bracket and junction boxes

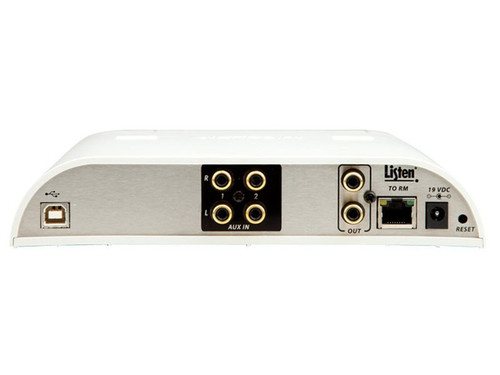

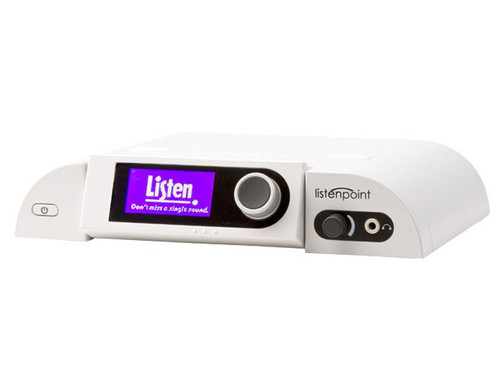

Listen Tech LPT-C2 ListenPoint Standard Control Unit

• Two (2) unbalanced inputs and one (1) unbalanced output
• One intuitive control for adjusting volume
• Automatic audio selection allows teacher to change volume via the single control on the control unit or on the M1 microphone
• Single point of connection via Cat-5e cabling to the room module makes installation and maintenance simple
• Backlit, tilting LCD Screen shows audio selection, volume, microphone status and battery level. When mounted the LCD can be inverted 180° for optimum viewing angle
• Designed to blend into any room, can be wall, desk or rack mounted with supplied mounting platform and hardware
• Extensive customization of system through password protected front panel or via USB port

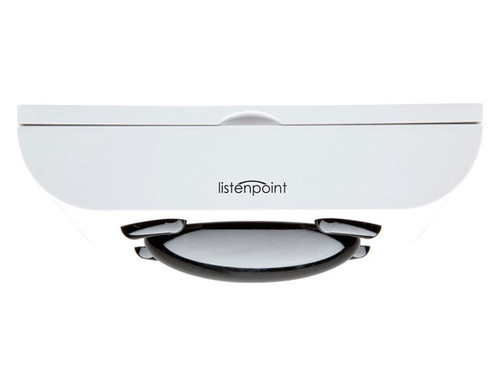

Listen Tech LPT-R12 ListenPoint Powered Room Module

• Reduced cable clutter with single point of connection for speakers, expansion sensors, paging, integrated assistive listening transmitter and external devices
• External audio-visual product integration through RS-485 and RS-232 bidirectional control
• Precision audio customization with advanced Quickfilter provides 512 points of equalization for precise tuning of pre loaded speaker models and seven band DSP based equalizer – two tone controls and five fully parametric filters
• Includes mounting platform for wallboard and drop ceilings and can be mounted directly to electrical boxes
• Paintable surface (except the sensor lens) allows for customization to room aesthetic and cable cover neatly conceals cabling
• Speaker audio can be ducked (reduced in level) by external paging and/or the microphone can duck aux inputs
• Option of up two (2) expansion sensors to provide additional room coverage
• Direct connection to external paging



Listen Tech LPT-M1 ListenPoint Microphone/Media Interface Kit

• Wireless microphone worn by the teacher (lanyard or belt worn)
• Can also be used as a pass around microphone for students
• Teacher can adjust volume of microphone and all other connected audio sources
• Included drop-in charger
• Connect your smart phone, lap top or other device directly
• Advanced Lithium ion battery technology provides up to 8 hours of battery life and is charged in under 2 hours
• Battery is replaced much less often than other battery types
• Soft button can be customized to meet your specific needs, such as emergency call, screen control and more

• (2) Bose® FreeSpace® DS 40SE Wall Mount Loudspeaker
• (1) Listen Tech LPT-C2 ListenPoint Standard Control Unit
• (1) Listen Tech LPT-R12 ListenPoint Powered Room Module
• (1) Listen Tech LPT-M1 ListenPoint Microphone/Media Interface Kit
