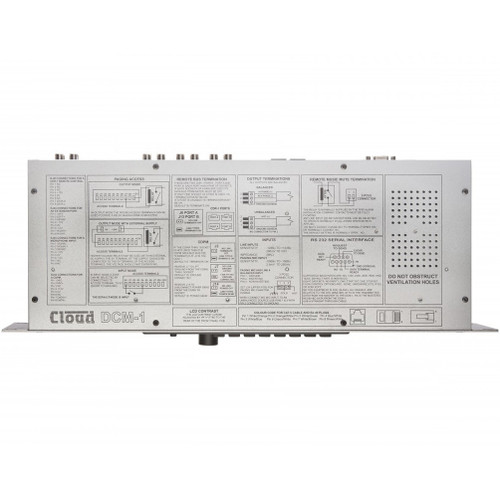

Cloud Electronics DCM1e Ethernet Digital Control Zone Mixer

Part # DCM1E

Model # DCM1e

The Cloud Electronics DCM1e is the new Ethernet version of the popular DCM1 Digital Control Zone Mixer. The addition of an Ethernet port allows the in-built Ethernet web-server to be connected via an RJ-45 cable to any independent or existing wireless router.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Cloud Electronics DCM1e Ethernet Digital Control Zone Mixer

The DCM1e is a new Ethernet version of the popular DCM1 Digital Control Zone Mixer. The addition of an ethernet port on the rear panel of the new DCM1e allows its own on-board web-server to be connected via an RJ-45 socket to an independent or existing switch or router. This feature means the new DCM1e can be configured and controlled remotely by any mobile device or PC connected to the same network.

Using the web browser of any mobile device Users have "limited installer defined" controls via simple and intuitive interface pages. Power Users are provided with additional installer defined controls, whilst Installers have administrator status via a password protected "Configuration Options" screen.

Multiple devices can connect and operate the DCM-1e concurrently, providing complete flexibility and control for up to eight separate zones, if required.

Features

Features

8 Stereo Line Inputs (1 Balanced)
8 Balanced Line Outputs (2 Stereo + 6 Mono)
4 Dedicated RJ-45 Ports for optional Line Inputs (LE-1A or LE-1M)
Or 4 Dedicated Balanced Line Inputs (BE-1A or BE-1M)
4 Dedicated RJ-45 Ports for optional Mic Input Sockets (ME-1A or ME-1M)
Microphone Paging to all or any zone with fully programmable overide logic
Separate analogue paging Microphone Input with analogue contact closure selection
Configurable remote Controls (CDR-1 or CDR-1F)
Configurable Line Priority by Zone
RS-232 Interface for Crestron/Other Control
Ethernet Connection Socket and Web Server for PC,Tablet & Mobile Device Control
Accepts Bose, Amina and Active Audio EQ cards

Specification

Line inputs
Frequency Response	20 Hz – 20 kHz ±0.5 dB
Distortion	<0.05%, 20 Hz – 20 kHz
Sensitivity	195 mV (-12 dBu) to 3.1 V (+12 dBu)
Input Gain Control	24 dB Range
Input Impedance	47 kohms
Headroom	>+10 dB
Noise	-90 dB A Weighted (0 dB Gain)
Equalisation	HF: ±14 dB @ 10 kHz MID: ±14 dB @ 1200 Hz LF: ±14 dB @ 50 Hz
Paging Microphone Input
Frequency Response	100 Hz / -3 dB (Filter) 20 kHz ±0.5 dB
Distortion	<0.05% 20 Hz – 20 kHz
Gain Range	10 dB – 50 dB
Input Impedance	>2 kohms (Balanced)
Phantom Power	+12 V (PCB Jumper For On/Off)
Headroom	>20 dB
Noise	-120 dB EIN 22 Hz – 22 kHz (150 ohms)
Equalisation	HF: ±10 dB @ 5 kHz LF: ±10 dB @ 100 Hz
Outputs
Balanced Zone Outputs	775 mV (0 dBu)
Minimum Load Impedance	600 ohms
Maximum Output Level	+10 dBu (2.6 V)
External Power Supply
External Supply Input	100 V-240 V AC; 47-63 Hz; 1.35 A
Power Supply	+12 V, 3 A; -12 V 1 A
Dimensions (H x W x D)	3.46" (88 mm) x 19" (482.6 mm) x 6.69" (170 mm)
Net Weight	7 lbs (3.12 kg)
