The Cloud MX155 is a cost-effective, rack mounting (1U) stereo audio mixer for use in all types of commercial premises. It is simple to install and operate and provides a useful range of features and configuration options.
The mixer has five primary channels, each of which has a balanced mic input and an unbalanced stereo line input: all connections are on the rear panel. There is a further stereo auxiliary line input, with both a balanced rear panel input and an unbalanced 3.5 mm TRS jack on the front panel allowing easy connection of tablets, laptops, etc. An additional, independent mic input channel is also routed to the main output; this channel features adjustable VOX detection to allow paging use, with voice-over-program ducking. VOX threshold is adjustable via a rear panel preset control and the depth of ducking adjustable from the front panel.

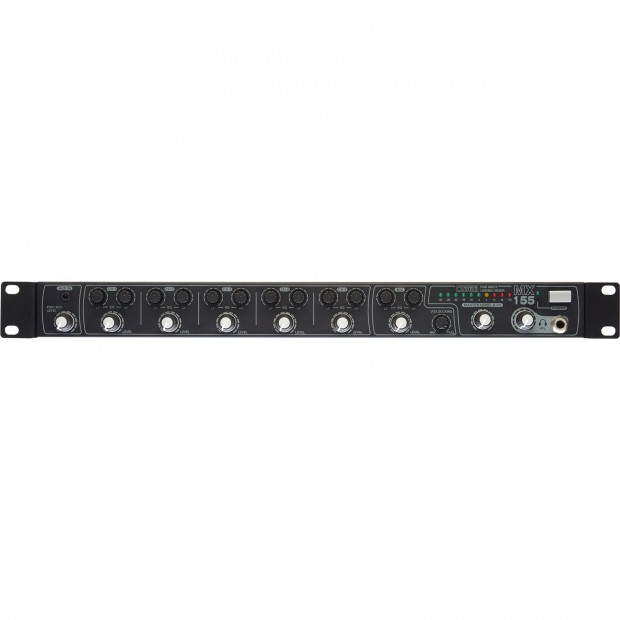

The front panel provides level and HF/LF EQ controls for each of the five main channels and the mic channel; a level control for the auxiliary line input is also fitted. 12V phantom power is available at all mic inputs, selected by internal jumpers.
The stereo output of the mixer is balanced: the front panel has an output level control and an LED bar graph meter. A rear panel switch converts the output for mono operation. Headphone monitoring of the main output is available on the front panel, with an independent headphone volume control. Installers can set the maximum level of the main output via a rear panel preset control, to prevent inadvertent overloading of power amplifiers or damage to loudspeakers. The mixer has an additional unbalanced stereo line output carrying the main mix: VOX ducking affects this output, but the level is independent of the master output level control.
To aid compliance with PA-VA regulations, the MX155 has a dedicated emergency input (balanced): when a signal is detected at this input, all other inputs are muted and the emergency input routed directly to the mixer output. An internal jumper determines whether the mic channel should remain unmuted in this situation; this allows it to be used for announcements in an emergency. In common with most other Cloud products, a Music Mute control input is fitted; short-circuiting the terminals here will also activate the emergency muting circuitry.
| Inputs | |
|---|---|
| Mic Inputs | Balanced, 40 dB gain; plug-in multipin connector |
| Line Inputs | Unbalanced stereo, 0 dB gain, RCA jacks (phonos) |
| Auxiliary Input | Balanced stereo, 0 dB gain; plug-in multipin connector |
| Emergency Input | Balanced mono, 0 dB gain; plug-in multipin connector |
| Outputs | |
| Main Output | Balanced stereo, max. output level +18 dBu |
| Record Output | Unbalanced stereo, 0 dBu typical |
| Headphones | Max level 120 mW into 75 ohms @ 1% THD |
| Signal-to-Noise Ratio | >77 dB (line inputs) |
| Crosstalk | >65 dB (line inputs) |
| THD | |
| Frequency Response | 20 Hz to 20 kHz, +/-3 dB |
| Channel Balance | |
| Power Input | Selectable 115 VAC or 230 VAC; 50/60 Hz |
| Power Consumption | 20W max. |
| Dimensions (H x W x D) | 1.75" (44.5 mm) x 19" (483 mm) x 6.4" (162.5 mm) |
| Shipping Dimensions (H x W x D) | 3.5" (90 mm) x 21.3" (540 mm) x 10.2" (260 mm) |
| Weight | 5.15 lbs (2.3 kg) |
| Shipping Weight | 10.1 lbs (4.5 kg) |
