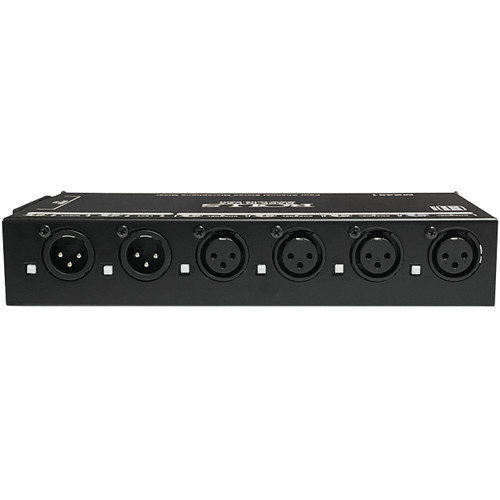

The MX401 mixes 4 microphones or line level XLR's into two balanced Stereo outputs. The four XLR inputs, each have individually switchable phantom power, MIC or LINE level switch, Level control, and a Pan control. Two independent balanced, XLR outputs both with selectable MIC or LINE level. 1/8" inch Stereo Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries or the included 15VDC power supply.
| Input Impedance | 600 Ohms MIC - 10k Ohms LINE |
|---|---|
| Output Impedance | 600 Ohms MIC - 10k Ohms LINE |
| THD Noise | .02% |
| S/N Ratio | 96 dB |
| Self Noise | -65 dB maximum, -90 dB typical |
| Frequency Response | 20 Hz - 20kHz ( 0 / -3 dB) |
| Max Output Level | 14 dB |
| Max Gain | 55 dB |
| Current Draw | 30 mA with no Phantom Power or Signal |
| Phantom Power | 15 VDC |
| Power | 12-15VDC / < 300-500 mA |
| Dimensions (H x W x D) | 1.5" (38.1 mm) x 8.5" (215.9 mm) x 5.75" (146.05 mm) |
| Weight | 2.05 lbs (0.93 kg) |
