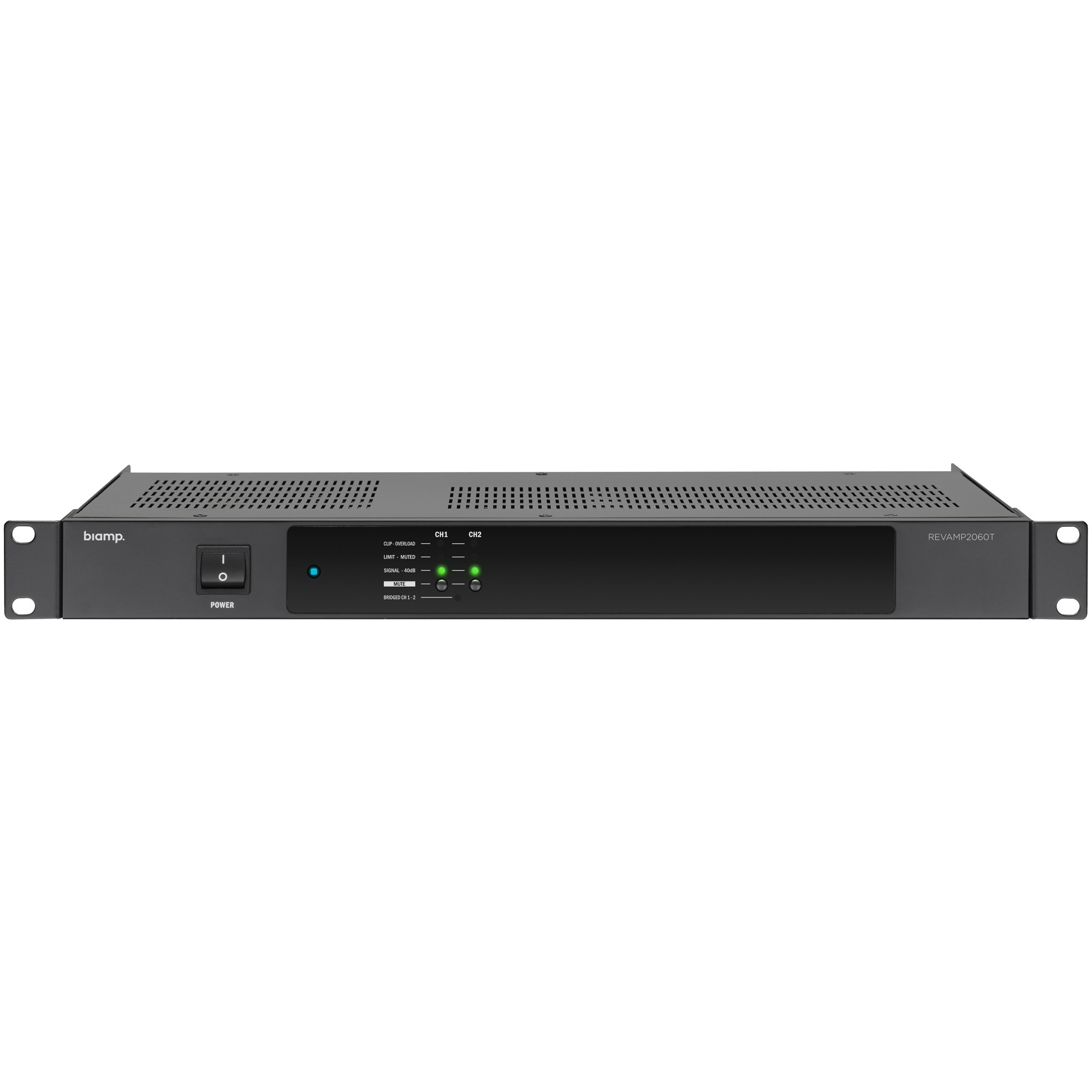

Biamp REVAMP2060T 2-Channel 2 x 60W at 4Ω/70V/100V Digital Power Amplifier

The versatile REVAMP2060T is a professional two-channel digital power amplifier with 2x60 watts output power at 70V/100V or 4 ohms, that can easily be bridged into a powerful 120 watts at 70V/100V or 8 ohms single amplifier.

This Class-D amplifier has a galvanic separated toroidal output transformer built in to avert external influences & disturbances. A fast installation tool on the rear is the clip LED indicator that can be used during the configuration of the input gain.

The convection-cooled REVAMP2060T has no fan inside, which ensures that the amplifier works silently and stays dust-free. This maintenance free feature, together with the ease of installation via multiple input and link connection options, makes the REVAMP2060T the preferred installer’s choice. The slim 1U design without front control makes the REVAMP2060T a unique all-around amplifier, unlike any other in the market.

Features

Features

2-channel Class D amplifier
2 x 60 Watts (70/100 Volts or RMS @ 4 Ohms)
In bridge mode 1 x 120 Watts (70/100 Volts or RMS @ 8 Ohms)
Convection cooled
5-year warranty

Specification

Output Power RMS @ 100 Volts	2 x 60 watts
Output Power RMS Bridged @ 100 Volts	120 watts
Output Voltage Taps	100 -70 - 50 - 35 watts - 4 ohms
RMS Output Power at 4 Ohms	2 x 60 watts
Dynamic Output Power at 8 Ohms	2 x 30 watts
RMS Output Power at 8 Ohms	2 x 30 watts
Dynamic Output Power Bridged @ 8 Ohm	120 watts
Output Power RMS Bridged @ 8 Ohms	120 watts
Minimum Load Impedance	4 ohms (per channel) 8 ohms in bridged mode
Output Channels	2
Input Sensitivity	0 dBV / 1 V
Input Impedance	22 kΩ
S/N Ratio	>98 dB A weighted
Frequency Response	50 - 20 kHz
Protection Circuits	Over current, over temperature, DC offset
Channel Separation	> 65 dB @ 1 kHz
Power Amp Topology	Class-D
Power Supply	SMPS
Cooling System	Convectional
Max Power Consumption	400 watts
Operating Temperature Range	0 to 35°C
Mains Operating Voltage	100 - 240 V~ 50/60 Hz
Dimensions (H x W x D)	1.73" (44 mm) x 19" (483 mm) x 9.41" (239 mm)
Weight	12.57 lbs (5.7 kg)
