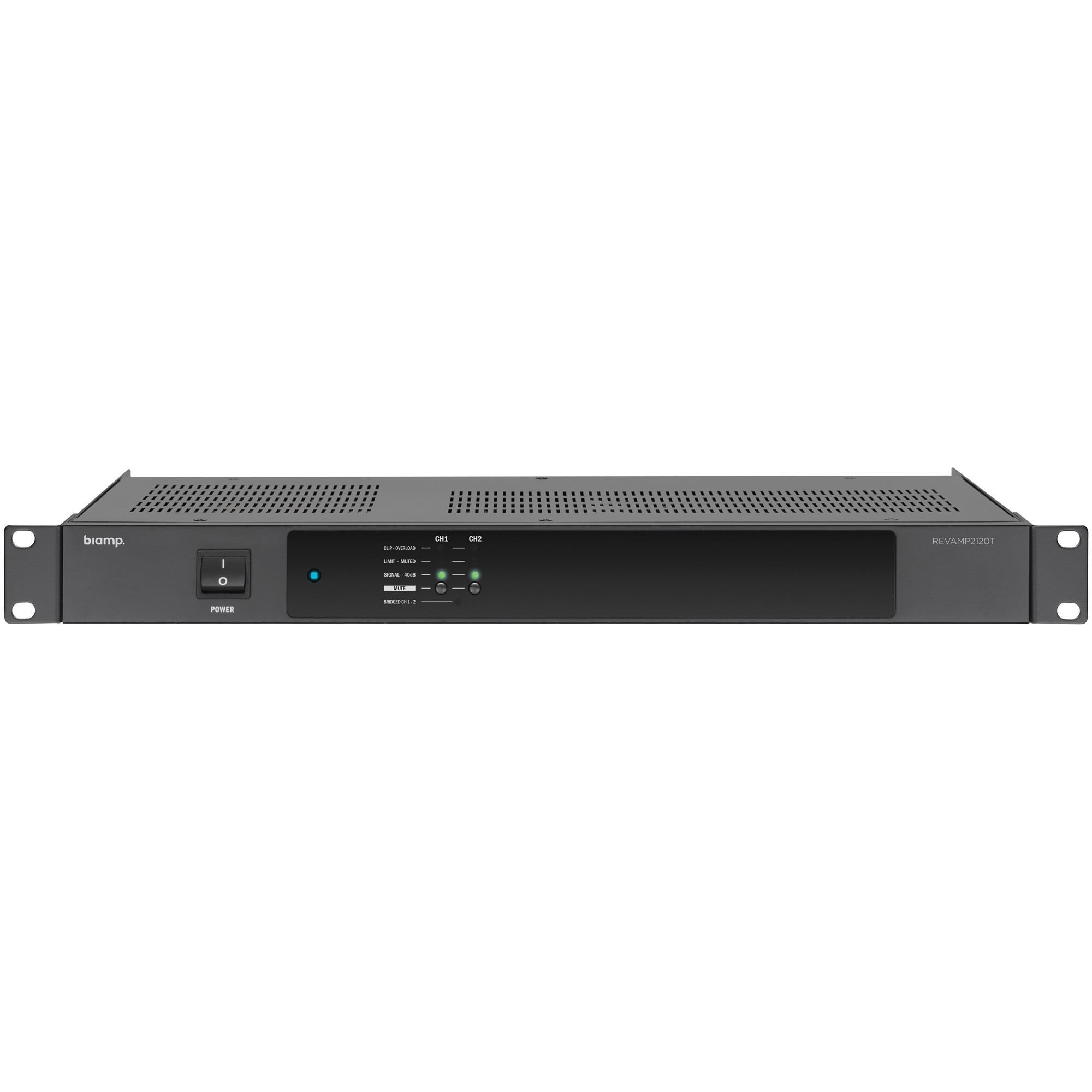

Biamp REVAMP2120T 2-Channel 2 x 120W at 4Ω/70V/100V Digital Power Amplifier

The REVAMP2120T is a 2-channel digital power amplifier that provides 2 x 120 watts output power @ 100 volts or @ 4 ohms, and can be bridged into a powerful 240 watts @ 100 volts or 8-ohm single amplifier.

The REVAMP2120T is a convection cooled class-D amplifier without built-in fans which ensures that the amplifier is noiseless and dust-free. The ergonomic and efficient 1U design has a galvanic separated toroidal output transformer built in to avert external influences and disturbances.

During the configuration of the input gain the rear clip LED indicator can be used for a fast and easy installation. The multiple inputs and link connectors make the REVAMP2120T a versatile and installer-friendly amplifier superior to any other in the fixed install market.

Features

Features

2 x 120 watts output power @ 100 volts or @ 4 ohms
Can be bridged into a powerful 240 watts @ 100 volts or 8-ohm single amplifier
Convection cooled
1 U, 19-inch rackmount
5-year warranty

Specification

Output Power RMS @ 100 Volts	2 x 120 watts
Output Power RMS Bridged @ 100 Volts	240 watts
Output Voltage Taps	100 - 70 - 50 - 35 watts - 4 ohms
RMS Output Power at 4 Ohms	2 x 120 watts
Dynamic Output Power at 8 Ohms	2 x 60 watts
RMS Output Power at 8 Ohms	2 x 60 watts
Dynamic Output Power Bridged @ 8 Ohm	240 watts
Output Power RMS Bridged @ 8 Ohms	240 watts
Minimum Load Impedance	4 ohms (per channel) 8 ohms in bridged mode
Output Channels	2
Input Sensitivity	0 dBV / 1 V
Input Impedance	22 kΩ
S/N Ratio	>98 dB A weighted
Frequency Response	50 - 20 kHz
Protection Circuits	Over current, over temperature, DC offset
Channel Separation	> 65 dB @ 1 kHz
Power Amp Topology	Class-D
Power Supply	SMPS
Cooling System	Convectional
Max Power Consumption	300 watts
Operating Temperature Range	0 to 35°C
Mains Operating Voltage	100 - 240 V~ 50/60 Hz
Dimensions (H x W x D)	1.73" (44 mm) x 19" (483 mm) x 9.41" (239 mm)
Weight	13.45 lbs (6.1 kg)
