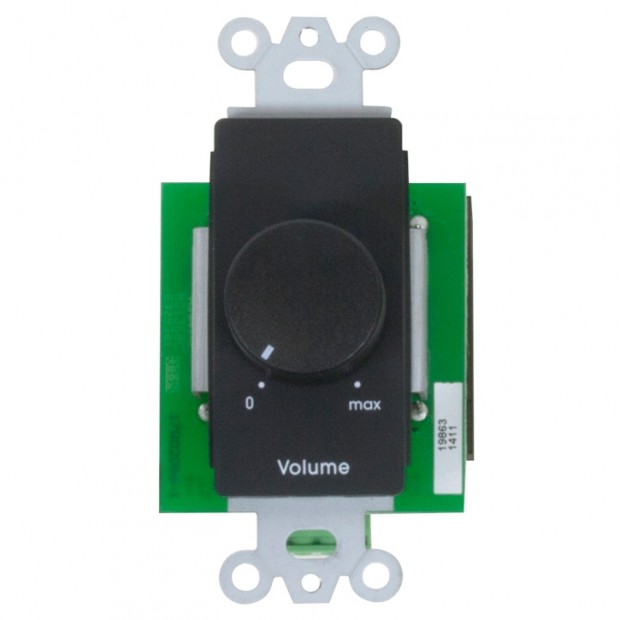

Lowell 200LVC-RMDB 200W Decora Rackmount Volume Control

Lowell’s 200LVC Series volume controls with 200 watt power rating provide precise level adjustment of single or multiple speaker lines. Controls feature phoenix-style easy to connect, plug-in screw termination strips for pre-wire convenience. Controls have a wire capacity up to 14gauge. Attenuation is 3dB per step per step with two positions of 6dB prior to OFF as noted. Model 200LVC is a 2-gang stainless steel assembly that mounts within a 2-gang E.O.Box with a minimum depth requirement of 2.5" including mud ring (if used). This model is ideal for applications where a powerful and durable, non-corrosive wall plate mounted control is specified.

The Lowell 200LVC-RMDB Decora Rackmount Volume Control is a rackmount assembly with a decorastyle subplate. It is designed for installation into Lowell’s LD8- RMP or LD9-RMP rackmount device panels with pre-punched decora-style cutouts. Due to the assembly’s 2.25” width two units may NOT be installed side by side in either panel. They may be installed in every other position with a device 1.625”W between for the LD8-RMP or 1.375”W on the LD9-RMP. Model 200LVC-RM is a traditional rackmount assembly that includes the control unit with exposed shaft, knob and adhesive dial scale. It is designed for custom panel applications or for installation in Lowell’s LVC-RMP rackmount panel. Due to the assembly’s 2.25” width two units may NOT be installed side by side in the LVC-RMP panel. They may be installed in every other position with a device 1.625”W between.

• 200W power rating
• 2-gang stainless steel, black Decora® or rackmount styling
• Fits standard 2.5" D E.O. boxes
• May be used with RMP Series rack panels (order separately)
