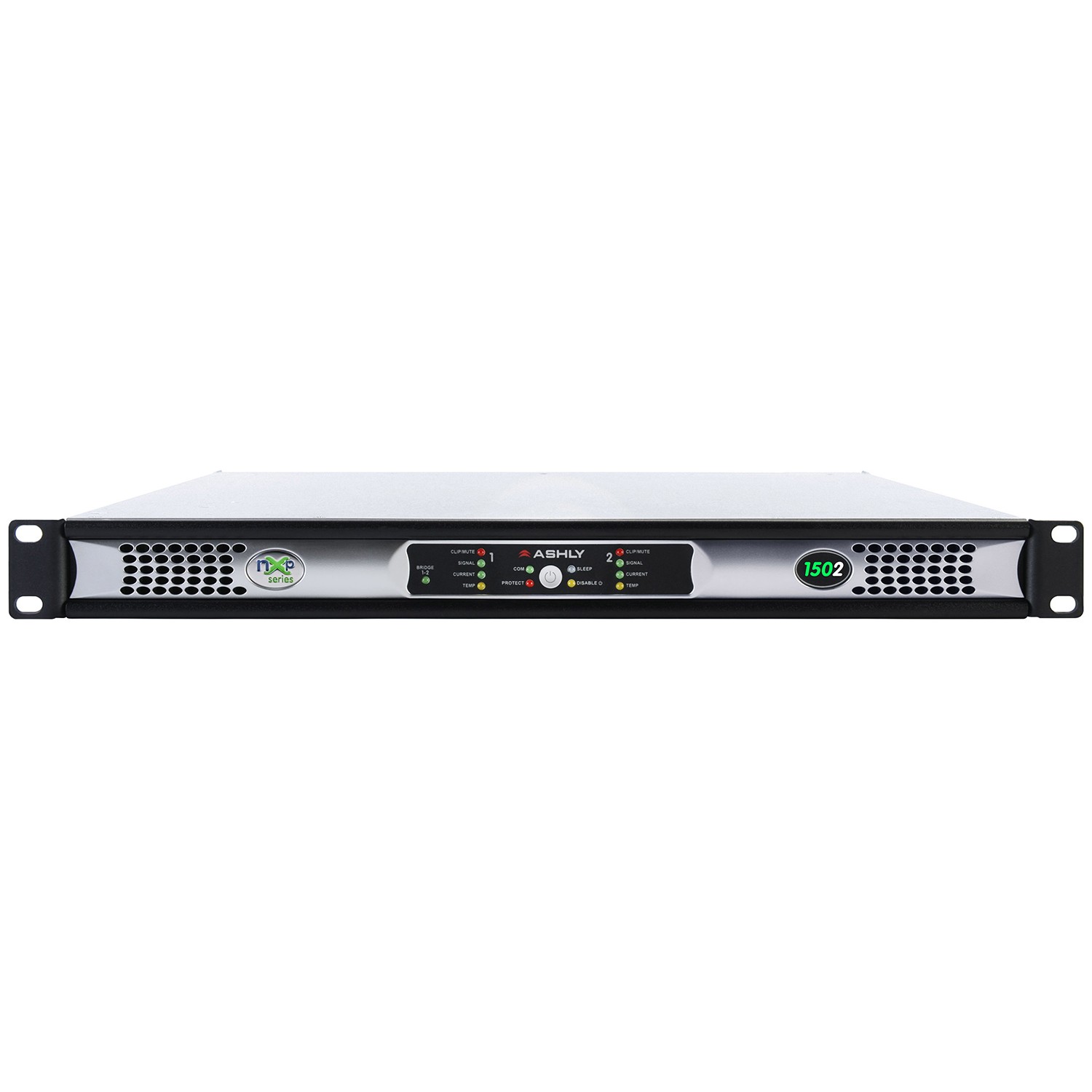

The nXp 1502 allows for each speaker output to be configured for low impedance (2, 4, or 8 Ohm), or 25V, 70V, or 100V constant voltage output. This amplifier uses state of the art, light weight, high power, high efficiency switching technology with active power-factor-correction, developed through years of design and field testing. NX amplifiers are designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers.

The NXP features Class-D Switching Amplifier Technology with universal switch-mode power supply and Power Factor Correction (PFC) that operates from 70VAC to 270VAC.

Multi-Mode Operation offers selectable outputs allowing you to choose the desired output mode on each channel. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or 25V, 70V, or 100V Constant Voltage and you’re set to go.

For greater Energy Efficiency, the NXP has power-saving Ashly EMS™ (Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt (defeatable).

Ethernet Control using Protea™ NE software allows serial data control by Ashly programmable remotes or third party controllers, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, optional Dante™, CobraNet™, or AES3 digital audio capability (factory-installed).

Real-Time Clock with Event Scheduler offers automatic assigned execution for selected functions and tasks. The event scheduler is programmed from software and stored in the amplifier.

Use Ashly's free Remote Control app for custom design of secure wireless control over network via an iPad®.

32-bit SHARC DSP Processing at 48kHz or 96kHz Sample Rates. Comprehensive software control of digital signal processing, matrix and auto-mixing, built-in signal generator for test tone and noise-masking, swept output load impedance monitoring. Use Ashly Remote iPad control to select DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters.

Utilizing the FIR Filter-Ready PneS software allows you to load a speaker manufacturer's .fir or .csv file to achieve precision tuning.

• Selectable 80Hz 2nd-order Hi-pass filter, limiter, and input gain per channel
• Remote DC level control per channel
• Extensive protection circuitry, continuously variable cooling fan
• Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
• Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
• Instant Standby Mode, 40% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
• Preset recall via contact closure, software control, remote control, or event scheduler
• Programmable power-on delay
• Aux preamp line outputs for driving other amplifiers
• Fault condition logic outputs per channel
• Comprehensive software controlled DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
• Additional iPad control of select DSP functions including gain, matrix, A/B source select, PEQ filter level, and meters
• Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
• Signal generator function for test and noise masking
• Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
• Euroblock input connectors
• Euroblock loudspeaker connectors
• Detachable AC mains line-cord connector
• Safety/Compliance: cTUVus (pending), CE, FCC, RoHS
