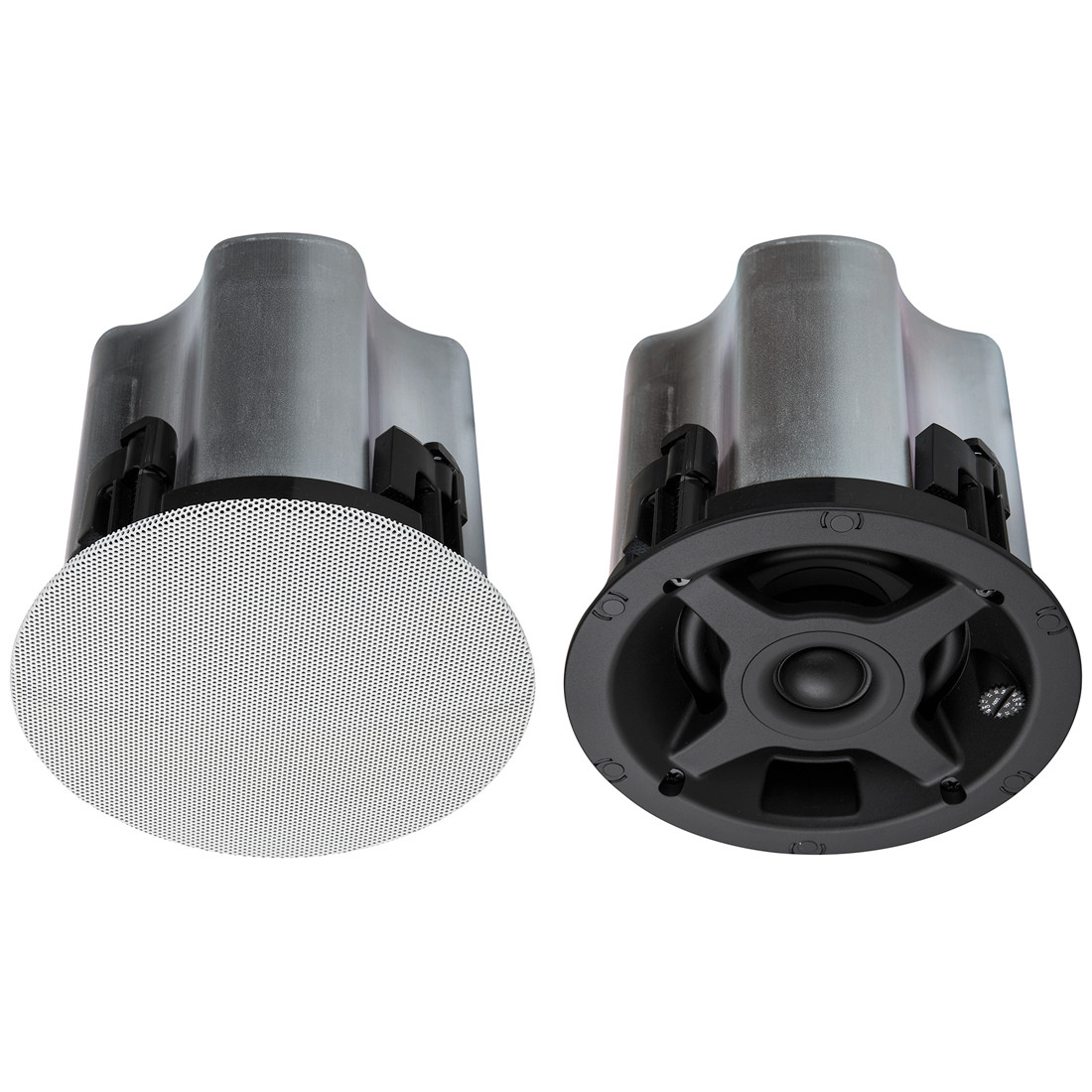

Sonance PS-C43RT 4-inch In-Ceiling Speaker

The Professional Series PS-C43RT is a 70V/100V/8Ω selectable in-ceiling speaker. It features a one-piece bezel-less grille that is magnetically secured, allowing a one-step painting process to simplify installation and minimize visual distraction.

The optional square grille adapter allows the speaker to match the aesthetic of square downlights and HVAC grilles, helping achieve continual sight lines.

A high-excursion 4" polypropylene woofer delivers strong low-bass extension (even exceeding many 6.5" and 8" competitive models in certain respects), while the pivoting chambered 1" soft dome tweeter can be aimed to ensure accurate coverage when speaker positioning is compromised.

A full-fidelity transformer allows uncompromised sonic performance in both high-impedance (70V/100V) and low-impedance (8 Ω) settings. The PS-C43RT includes a sealed metal enclosure, integrated cable and conduit clamping, a removable Euroblock connector with loop-through, a swing-open connector cover, and seismic attachment.

Additionally, the Sonance PS-C43RT is certified to UL 1480 and UL 2043.

Features

Features

Class-leading sensitivity & sonic performance
Exceptional off-axis response
Heavy duty voice coil for longevity and reliability
Full-fidelity transformer for uncompromised tonality
Consistent voicing across product range
Bezel-less design for clean and minimalistic aesthetic
Optional black grilles in round or square
Magnetic grille retention for fast installation and removal
Finger-adjustable selector tap
One-step simplified painting process

Specification

Frequency Range (-10 dB)	57Hz - 25kHz
Frequency Range (-3 dB)	75Hz - 20kHz
Power Capacity	60 Watts Continuous Program Power 30 Watts Continuous Pink Noise
Nominal Sensitivity	87 dB
Nominal Coverage Angle	120 degrees conical coverage
Directivity Factor (Q)	7.6
Directivity (DI)	8.1 dB
Rated Maximum SPL	105 dB @ 1 meter (3.3 feet) average, 110 dB peak
Rated Impedance	8 Ohms nominal, 6 Ohms minimum
Crossover Point	3000 Hz
LF Driver	4" (100 mm) Polypropylene Cone, Butyl Rubber Surround
HF Driver	1" (25 mm) Cloth dome, Pivoting, Ferrofluid cooled
Transformer Taps	70V: 30W, 15W, 7.5W and 3.8W 100V: 30W, 15W and 7.5W
Input Connectors	Four pin Euroblock with loop output connections
Safety Agency	UL 1480, UL 2043, NFPA 90A, NFPA 70
Knockouts	One, side mounted .75"
Grille	Supplied with bezel-less white grille, black grille optional
Maximum Ceiling Thickness	1.732" (44 mm)
Suspension Points	One, on top surface
Unit of Measure	Pair
Cut Out Dimensions	5.875" Diameter (149 mm)
Overall Dimensions (Dia x D)	6.3" (160 mm) x 7.01" (178 mm)
Net Weight	3 lbs (1.36 kg)
Shipping Weight	14 lbs (6.35 kg)
