Community DS8SUB 8" Surface Mount Subwoofers - Pair (Discontinued)
By Community

Community DS8SUB 8" Surface Mount Subwoofers - Pair (Discontinued)

Write a Review
Part #:
DS8SUB
Model #:
DS8SUB
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Distributed Design Series DS8SUB is a compact subwoofer system, ideal for installations where space is a premium. With a modern architectural appearance that aesthetically merges well in most environments.

Description

The D series Distributed Design DS8SUB is a compact subwoofer system, ideal for installations where space is a premium. With a modern architectural appearance that aesthetically merges well in most environments, combined with weather-resistant capability suitable for indirect outdoor use, the DS8SUB can be used in a wide variety of applications. It is equipped with a built-in autoformer, allowing the full loudspeaker output to be realized with 70V or 100V distribution lines. A convenient front-accessible power tap switch is hidden behind a rotatable logo. Installation is simple and flexible using the included Infin-A-Ball™ multi-angle wall mounting bracket which allows low profile mounting and precise positioning of the enclosure over a broad tilt-swivel range.

Features
  • Modern architectural design
  • Similar voicing as the Distributed Design ceiling loudspeaker family
  • High efficiency, high output, high intelligibility, low distortion
  • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
  • Front-accessible power tap switch for selectable 8 ohm or 70V/100V operation
  • Infin-A-Ball™ low profile mounting bracket included
  • Weather-resistant construction with treated drivers, two-layer powder coated grilles and protected wiring ingress
  • Available in standard black or white finishes

Specifications
Operating Range 42 Hz - 200 Hz
Frequency Response 60 Hz - 160 Hz (±4 dB)
Max Input Ratings (8 ohm) 200W continuous, 500W program
40 volts RMS, 89 volts momentary peak
Transformer Taps 70V: 200W, 100W, 50W, 25W and low impedance
100V: 200W, 100W, 50W
Sensitivity (1W/1m) 88 dB SPL (63 Hz to 200 Hz 1/3 octave bands)
Maximum Output 111 dB SPL / 118 dB SPL (peak 8 ohm)
Nominal Impedance 8 ohms
Minimum Impedance 7.5 ohms @ 110 Hz
Nominal Coverage 180º H x 360º V
Axial Q / DI 2 / 3, 63 Hz to 200 Hz
Recommended Signal Processing 42 Hz, 24 dB high pass filter
Drivers LF 1 x 8-inch cone
Controls Front-accessible wattage / low impedance selector switch hidden behind the rotatable logo
Enclosure ABS plastic, matte finish, paintable
Finish Black or white
Mounting/Rigging Provisions Infin-A-Ball™ mounting system with hidden internal wiring
Grille Dual-layer powder coated steel, black or white finish
Dimensions (H x W x D) 18.5" (470 mm) x 9" (230 mm) x 10.1" (257 mm)
Net Weight (w/o Bracket) 23.2 lbs (10.5 kg)
Net Weight (with Bracket) 23.7 lbs (10.8 kg)
Shipping Weight (Pair) 56 lbs (25.4 kg)

DOCUMENTS

Related Products

Sold Out
Community DS5 5" 2-Way Surface Mount Speakers - Pair (Discontinued) Community DS5 5" 2-Way Surface Mount Speakers - Pair (Discontinued)

Community DS5 5" 2-Way Surface Mount Speakers - Pair (Discontinued)

Community's DS5 5 inch two way surface mount speaker is a low profile, compact artfully styled enclosure with dynamic sound quality and excellent intelligibility. This full-range model provides high...
$290.00

Usually arrives in 5-9 business days.

$290.00
Sold Out

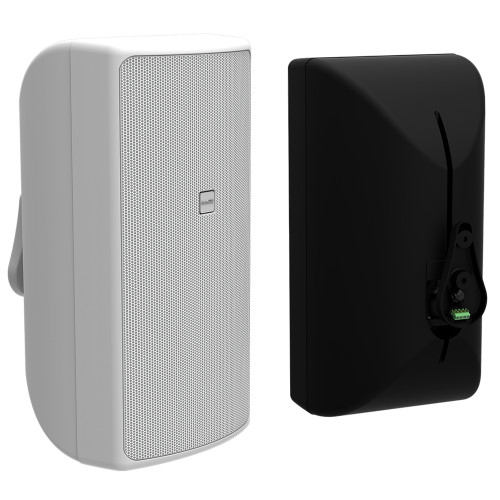

Community DS8 8" 2-Way Surface Mount Speakers - Pair (Discontinued) Community DS8 8" 2-Way Surface Mount Speakers - Pair (Discontinued)
