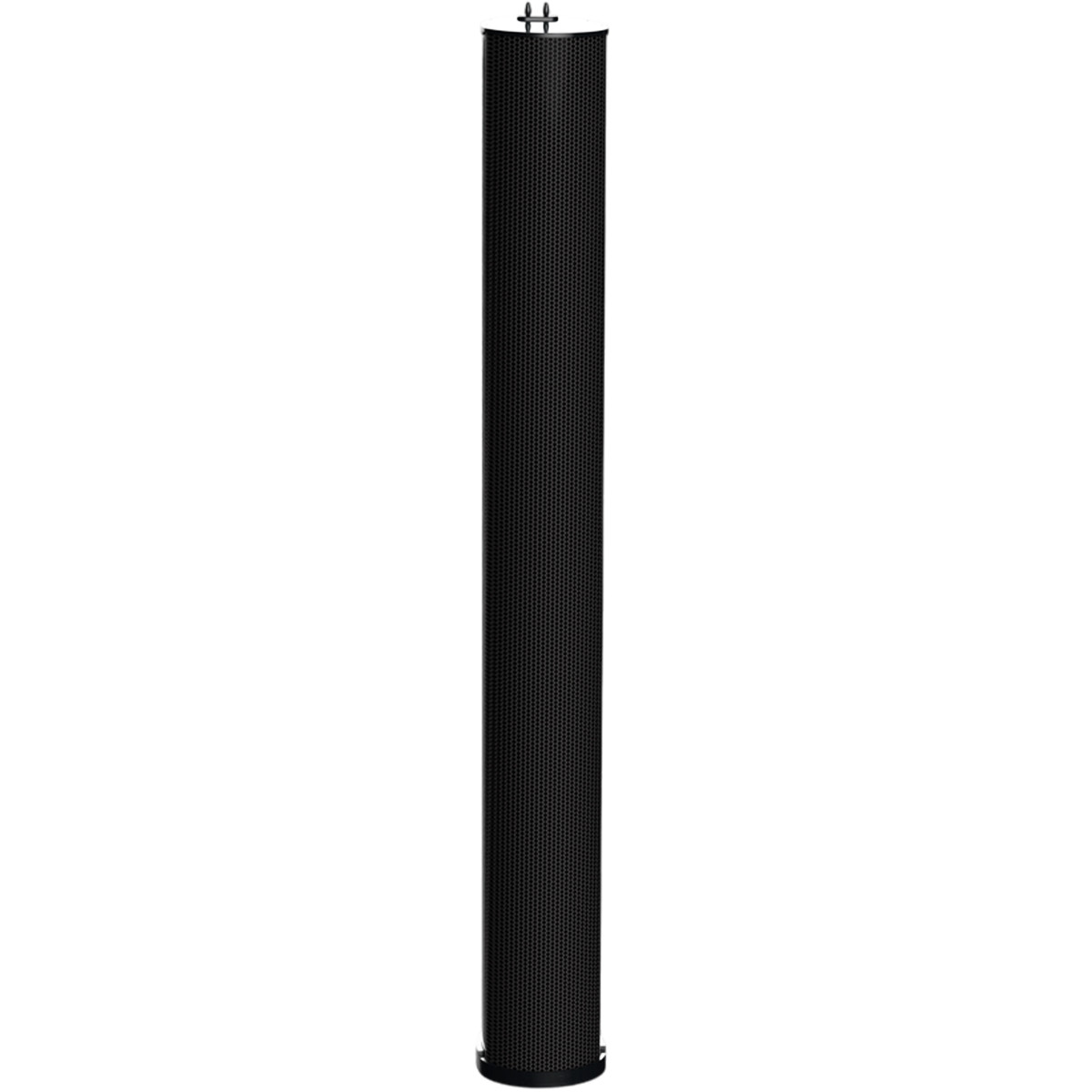

Biamp Desono ENT-FR 3-Way Black Column Line Source Loudspeaker

The Desono ENT-FR is a high-performance, three-way column line source loudspeaker system, available here in black, engineered for permanent installation in demanding acoustic environments. Featuring architecturally refined enclosures and modular scalability, the ENT-FR supports configurations ranging from a single unit to floor-to-ceiling arrays of nearly any length, making it adaptable for auditoria, airports, train stations, houses of worship, stadium concourses, museums, and more.

Optimized for medium to large, highly reverberant spaces, the ENT-FR functions as a true line source. Longer arrays reduce unwanted reflections, minimize reverberation, and significantly enhance speech intelligibility. Its modular design allows installers to position the vertical system lobe symmetrically or asymmetrically about the column axis. Multiple ENT-FR columns can be used to create single lobe focused coverage, or combined with ENT-LF modules in tall arrays to generate multiple vertical lobes at independent points, a capability previously only achievable with powered, digitally steered arrays.

With all-weather construction, the ENT-FR is equally at home in both indoor and outdoor direct-exposure installations. A wide range of mounting brackets is available to suit nearly any application. For optimal performance, the Community ALC1604D Amplified Loudspeaker Controller is recommended, with higher power ALC models also fully compatible.

Note: Formerly sold under the Community brand, this speaker continues to offer the same quality and features.

Features

Features

Zoom Certified
Modular design provides versatile coverage with no unwanted lobes
Wide frequency range and high output for powerful performance
Highly intelligible voice reproduction with excellent musical sound quality
Simple installation supported by a variety of versatile mounting accessories
Integrated T-bar mounting bracket included with each column
5-year warranty

Specification

Operating Mode	Passive
Operating Environment	Indoor or outdoor direct exposure
Operating Range	200 Hz - 20 kHz
Nominal Beamwidth (H x V)	Horizontal: 120° Vertical: 12° or 6° (user configurable)

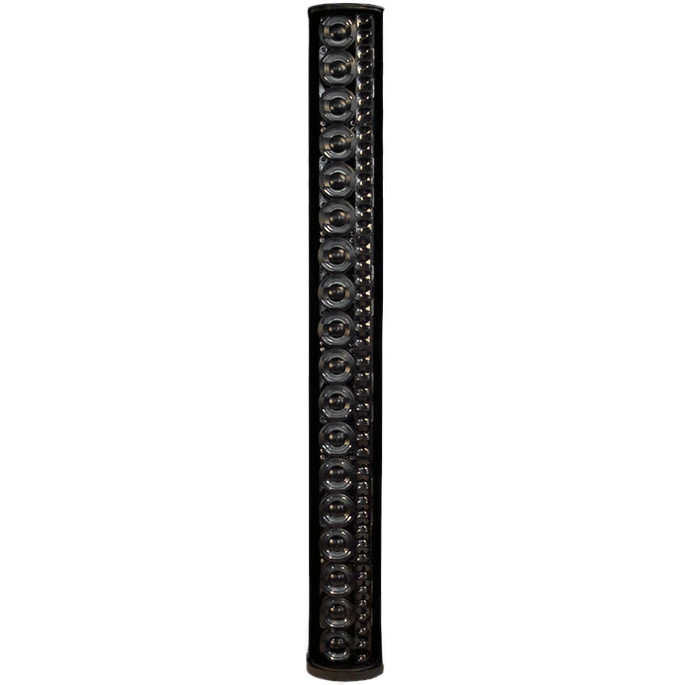

Transducers	LF: Six 3.5" neodymium MF: Eighteen 2.35" HF: Forty-two 1" (six 7" long by 1" wide planar-coupled Compact Ribbon Emulators)
Continuous Power Handling	85V, 600W @ 12Ω (2400W Peak) @ Nominal Impedance
Nominal Sensitivity	Curved (12°): 93 dB Straight (6°): 95 dB
Nominal Maximum SPL (Single unit)	Curved (12°): 120 dB Straight (6°): 122 dB
Typical SPL at 100 feet (30 meters)	96 dB
Required Accessories	Digital Signal Processor / External High Pass Filter - 200Hz, 12 dB /octave
Recommended Amplifiers	600W - 1200W @ 12Ω (85V - 120V)
Baffle Form	Configurable; straight, curved, and asymmetric curve
Input Connection	Top: (1) Dual Banana (male) Bottom: (1) NL4 locking connector (2) Terminal strip (1) Banana (female)
Environmental	IP54 per IEC 60529, designed in accordance with MIL-STD-810G. Included ABS plastic rain cover with integrated cable inlet and 1" (25.4 mm) knockout for conduit ingress
Dimensions (H x W x D)	44.5" (1129 mm) x 5.5" (140 mm) x 7.36" (187 mm)
Net Weight	40 lbs (18.1 kg)
Shipping Weight	50 lbs (22.68 kg)
