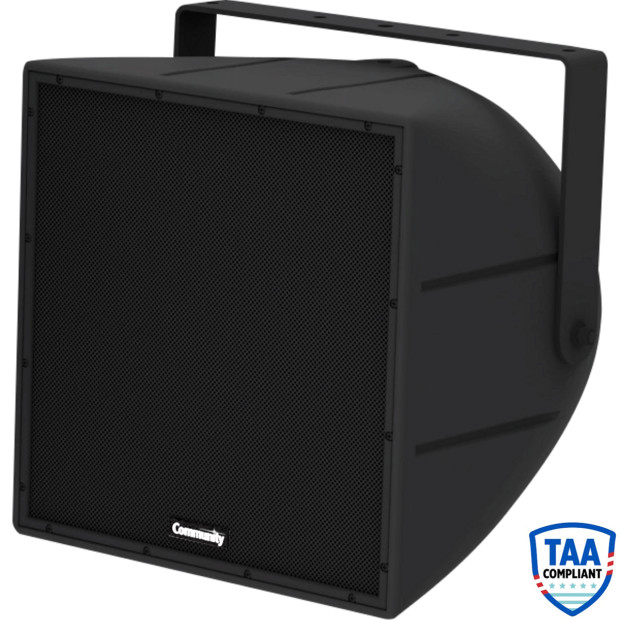

The R.5COAX99B is the largest member of the Community's coaxial loudspeaker family, delivering powerful, full-range sound for both music and speech applications. Its exclusive 12-inch LF driver and 1-inch horn-loaded compression driver provide smooth, high-fidelity audio with impressive low-frequency extension and superb clarity.
Designed for durability and versatility, the R.5COAX99B features a weather-resistant, rotomolded black UV enclosure, corrosion-resistant powder-coated steel grille and yoke, and weather-treated drivers and crossovers, making it ideal for both indoor and outdoor environments. Its 90° x 90° coverage ensures even sound distribution, while high efficiency ensures clear, intelligible speech and rich, dynamic musical reproduction with very low distortion.
The R.5COAX99B is TAA-compliant, suitable for U.S. federal government projects, and includes a five-year product warranty. Integral mounting points provide flexible installation options, making it a reliable solution for professional audio applications.
| Operating Range | 80 Hz to 18 kHz 90 Hz to 12.5 kHz (±3.5 dB) |
|---|---|
| Max Input Ratings | 200W Continuous, 500W Program 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 420W to 600W @ 8 Ohms |
| Sensitivity 1W/1m | 96 dB SPL (100 Hz - 13 kHz 1/3 octave bands) 96 dB SPL (250 Hz - 4 kHz speech range) |
| Maximum Output | 119 dB SPL / 126 dB SPL (peak) |
| Nominal Impedances | 8 Ohms |
| Minimum Impedance | 3.8 Ohms @ 9.9 kHz |
| Nominal -6 dB Beamwidth | 90°H (+10° / -23°, 1.6 kHz to 12.5 kHz) 90°V (+4° / -30°, 1.6 kHz to 12.5 kHz) |
| Axial Q/DI | 10.7 / 10.3, 1.6 kHz to 12.5 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 60 Hz high pass filter |
| Drivers | LF 1 x 12" HF 1 x 1" exit titanium free, Ferrofluid-cooled |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | 12 foot (4 m) SJOW #16 gauge |
| Enclosure | Rotomolded LLDPE, black |
| Mounting / Rigging Provisions | (5) 3/8-16 rigging points |
| Grille | 3-layer WeatherStop, black (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Finish | RAL Color: Black RAL 9005 |
| Environmental Performance | IEC529 IP54W rating with a minimum 5-degree downward aiming angle |
| Supplied Accessories | (1) Yoke bracket, black (1) Aiming strap |
| Dimensions (H x W x D) | 16" (406.4 mm) x 16" (406.4 mm) x 15.94" (404.88 mm) |
| Weight | 35 lbs (15.9 kg) |
| Shipping Weight | 42 lbs (19.1 kg) |
