Multizone Restaurant Sound System with 4 Wall Speakers, 2 Indoor/Outdoor Speakers, 4 Ceiling Speakers, 4-Zone Mixer, Power Amplifiers, and Bluetooth Receiver

Inside the Design

This professional multizone restaurant sound system is built to provide high-quality audio coverage for areas up to 3600 sq ft. Featuring a versatile combination of eight JBL SLP14/T 4" sleek low-profile wall speakers for the main dining areas, two JBL Control 28-1 high-output indoor/outdoor speakers for the outdoor patio, and four Pure Resonance Audio C3 3" micro ceiling speakers for the bathrooms, this system ensures crystal-clear sound for a range of applications. This system includes a Pure Resonance Audio MX84 4-zone mixer, two Pure Resonance Audio DA2240 dual-power amplifiers, and a Pure Resonance Audio BTR1 Bluetooth wireless audio receiver, making it perfect for both background music and paging. This solution is ideal for restaurants, bars, and cafes that need flexible audio control across multiple zones.

Sound System Features

• Complete commercial audio solution covering up to 3600 sq ft
• Eight low-profile wall speakers, two high-output indoor/outdoor speakers, and four ceiling speakers for full sound coverage
• 4-zone rack-mount mixer for independent control of different areas
• Dual-power amplifiers for reliable performance across multiple zones
• Bluetooth receiver for seamless wireless music streaming
• Wall-mounted volume controls for easy, zone-based volume adjustments
• Durable and versatile setup, ideal for both indoor and outdoor locations



About the System Components

JBL SLP14/T 4" Sleek Low-Profile On-Wall Loudspeakers

These eight compact 4" wall-mounted loudspeakers deliver clear, balanced audio while maintaining a sleek, low-profile design. Perfect for commercial environments, they provide high-quality sound while blending seamlessly into any modern space. Their discreet design makes them ideal for areas where space is limited or aesthetics are a priority.

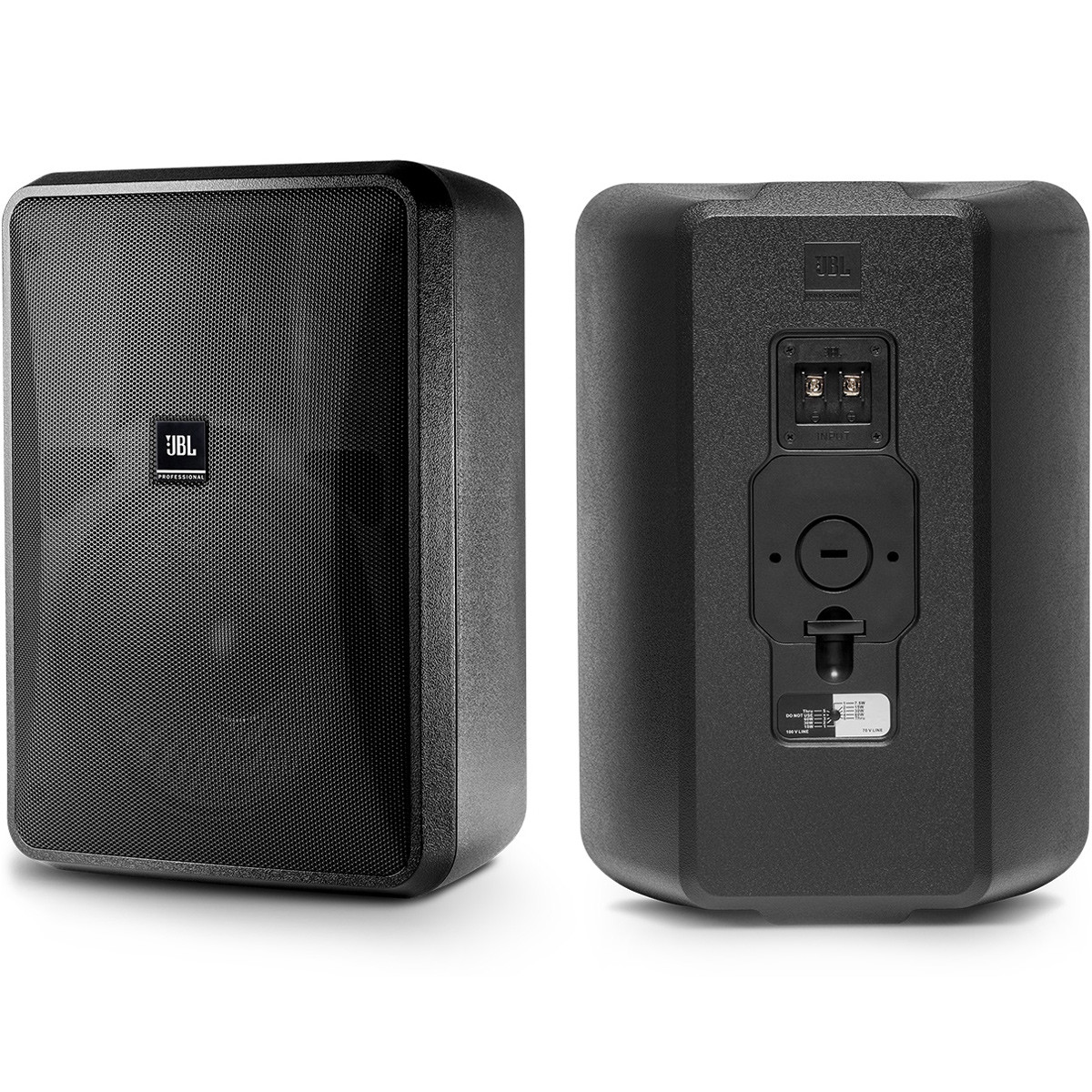

JBL Control 28-1 High Output 8" Indoor/Outdoor Speakers

The two JBL Control 28-1 speakers are engineered for high-output performance and versatile use in both indoor and outdoor settings. Featuring an 8" woofer, these speakers offer full-range sound with excellent clarity and power, making them perfect for large open spaces or areas that require higher audio output. The weather-resistant design ensures reliable performance in varying conditions.

Pure Resonance Audio C3 3" Micro Ceiling Speakers

Four 3" ceiling speakers provide discreet, high-quality audio for spaces that require subtle integration. These speakers are perfect for creating even sound distribution in smaller zones or areas where a less noticeable speaker presence is needed. Their compact size and excellent performance make them ideal for restaurants and commercial environments.

Pure Resonance Audio MX84 4-Zone 8-Channel Rack Mount Mic/Line Mixer

The MX84 is a versatile 4-zone, 8-channel mic/line mixer that allows independent control of up to four audio zones. Perfect for restaurants and commercial spaces, it offers multiple input options for microphones, personal devices, and more. The rack-mountable design ensures easy integration into existing setups, making it ideal for multi-zone audio systems.

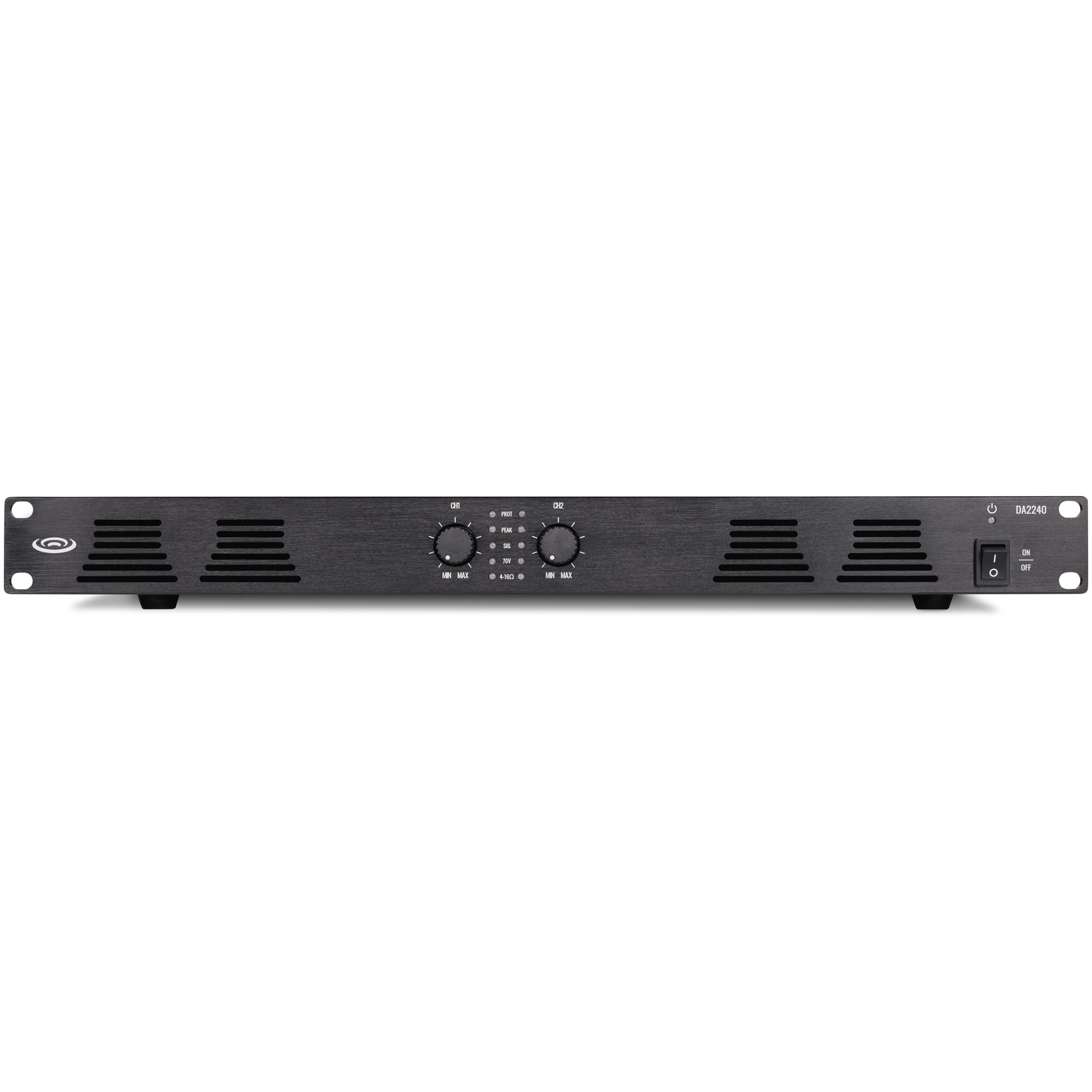

Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifiers

These two 240W power amplifiers provide reliable audio amplification across multiple zones. The dual-impedance design allows compatibility with both low-impedance and 70V/100V systems, making them highly versatile for commercial sound applications. The rack-mountable design ensures a clean and organized installation while delivering consistent, distortion-free sound across all zones.

Pure Resonance Audio MX8-WP 2-Input Wall Plate with Volume Control

The MX8-WP wall plates provide convenient volume control and audio input options for different zones. These wall-mounted units allow for easy adjustment of sound levels in individual areas, offering users greater control over their audio environment. The simple design ensures integration into any commercial space.

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver

The BTR1 Bluetooth receiver offers seamless wireless audio streaming with a range of up to 100ft, allowing users to stream music from any Bluetooth-enabled device. Its easy-to-integrate design ensures compatibility with your existing audio system, providing hassle-free wireless audio control for a modern, flexible setup.

JBL SLP14/T 4" Sleek Low-Profile On-Wall Loudspeakers

• 4" low-profile two-way on-wall speaker with a modern, slim design
• Wide coverage pattern ideal for consistent audio in main dining areas
• 70V/100V transformer with multiple tap settings for distributed audio
• Rugged ABS enclosure with paintable grille to blend with décor
• High-quality sound with broad frequency response of 90 Hz – 20 kHz
• Mounting hardware included for fast, secure installation



JBL Control 28-1 High Output 8" Indoor/Outdoor Speakers

• 8" woofer with polypropylene cone and 1" titanium diaphragm tweeter
• Weather-resistant for outdoor use, ideal for patios and terraces
• SonicGuard™ overload protection for increased reliability
• Wide 100° x 100° coverage for broad, even sound dispersion
• Built-in InvisiBall® mounting system for versatile positioning
• Handles up to 175W program power (8Ω) and 60W via 70V/100V tap



Pure Resonance Audio C3 3" Micro Ceiling Speakers

• 3" full-range driver in an ultra-compact in-ceiling enclosure
• Ideal for bathrooms, hallways, or other small zones
• Lightweight and easy to install in standard ceiling tiles
• High intelligibility and even sound distribution
• 70V/100V operation with integrated transformer
• Low-profile grille blends into most ceiling designs



Pure Resonance Audio MX84 4 Zone 8-Channel Rack Mount Mic/Line Mixer

• 4-zone, 8-channel mixer with mic/line inputs and priority paging
• Individual level control per input and output zone
• Balanced Phoenix-style connectors for reliable connections
• Built-in 24V phantom power on mic channels
• Ideal for multi-area sound distribution in commercial spaces
• Rack-mountable with included hardware



Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifiers

• Dual-channel 240W amplifier with 70V, 100V, and 4-16Ω outputs
• Efficient Class D amplification with low heat output
• Reliable performance with built-in protection circuitry
• Independent level controls and status indicators
• Compact 1RU rack-mount design fits standard equipment racks
• Flexible power for multiple zones and speaker types



Pure Resonance Audio MX8-WP 2-Input Wall Plate with Volume Control

• Wall-mounted control panel with two switchable stereo inputs
• Integrated volume control knob for localized audio adjustment
• Connects directly to mixer for convenient zone control
• Sleek, low-profile design complements modern interiors
• Includes screw terminal connections for easy installation



Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver with 100ft Range

• Stream music wirelessly from smartphones, tablets, or computers
• 100ft Bluetooth range for strong, stable connectivity
• Balanced output ensures clear signal transfer to the mixer
• Compact design easily mounts in AV racks or behind equipment
• Enables flexible music playback without hardwired sources

• (8) JBL SLP14/T 4" Sleek Low-Profile On-Wall Loudspeakers
• (2) JBL Control 28-1 High Output 8" Indoor/Outdoor Speakers
• (4) Pure Resonance Audio C3 3" Micro Ceiling Speakers
• (1) Pure Resonance Audio MX84 4 Zone 8-Channel Rack Mount Mic/Line Mixer
• (2) Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifiers
• (4) Pure Resonance Audio MX8-WP 2-Input Wall Plate with Volume Control
• (1) Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver with 100ft Range
• (4) C2G 28696 Cat5e Snagless Shielded (STP) Ethernet Network Patch Cables, Black - 50ft
• (4) Pure Resonance Audio PREP-3-PREP Prep to Prep Patch Cable - 3ft
• (1000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
