Outdoor Commercial Sound System with 8 In-Ground Speakers and 6 Weather-Proof Surface Mount Speakers

Inside the Design

This 70V outdoor sound system is perfect for commercial outdoor spaces like restaurant patios, pools, and other areas where high-quality background music, live music, and paging may be needed. The system features 8 Atlas Sound GSS-G all-weather garden loudspeakers and 6 SM52T 5.25" weather-resistant speakers, ensuring clear, full-range sound from every angle. With the new Pure Resonance Audio RMA500BT 500W commercial Bluetooth mixer amplifier, you can stream music wirelessly from any Bluetooth-enabled device, while also supporting a variety of input sources. The system also includes four Pure Resonance Audio VC100S volume controls for user-friendly volume adjustments throughout the space. The entire system is built to handle the demands of outdoor environments, with weather-resistant components and high-quality wiring that ensures reliable, long-lasting performance.

Sound System Features:

• Easy-to-install 70V sound system designed for commercial outdoor environments
• 8 all-weather garden loudspeakers and 6 weather-resistant speakers for full-range sound
• 500W Bluetooth mixer amplifier for seamless wireless music streaming
• Includes four volume controls for precise control in different zones
• Supports various input sources such as microphones, media players, and digital receivers
• Includes paging capability with versatile microphone inputs

About the System Components

Atlas Sound GSS-G 70V All-Weather Outdoor Landscape Loudspeakers

The Atlas Sound GSS-G garden loudspeakers are designed for outdoor areas like parks, patios, or landscaped settings, delivering excellent 360-degree horizontal sound dispersion. With an 8" coaxial polypropylene/kevlar cone and mylar dome tweeter, these loudspeakers ensure clear, deep sound even in unpredictable weather conditions. The durable polyethylene enclosure ensures long-lasting performance, while the surface-mount base allows for easy installation. These loudspeakers provide true surround sound from every angle, making them an ideal choice for any commercial outdoor space.

Atlas Sound SM52T 5.25" 2-Way Weather-Resistant Speakers

The SM52T weather-resistant speakers from Atlas Sound deliver smooth and even sound coverage in both horizontal and vertical mounting positions. Featuring a 5.25" woofer and a 1" high-frequency driver, the speakers ensure balanced audio reproduction, even in challenging outdoor environments. The internally mounted transformer with adjustable taps allows for easy integration into 70V systems, making them a great choice for distributed sound applications.

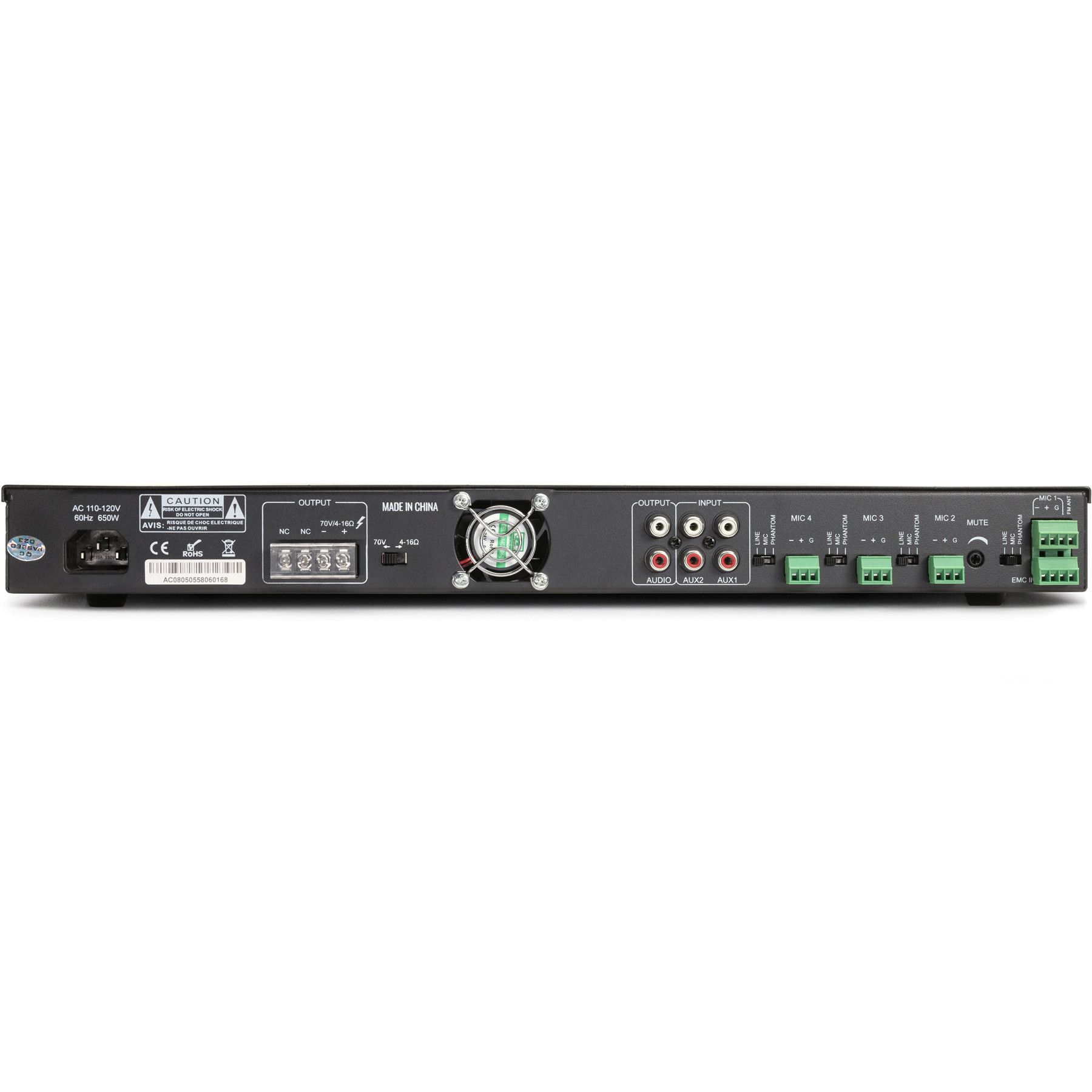

Pure Resonance Audio RMA500BT 500W Commercial Bluetooth Mixer Amplifier

The RMA500BT is a powerful 500W Bluetooth mixer amplifier that is perfect for outdoor commercial spaces. This amplifier features six input channels, including four microphone/line inputs and two stereo line inputs, allowing for versatile audio control and integration with various audio sources. Bluetooth streaming capability allows for wireless music control from any Bluetooth-enabled device, and the compact design ensures easy placement in any setting. With integrated paging and music on hold (MOH) functionality, the RMA500BT is an ideal solution for restaurants, bars, and other commercial venues.

Pure Resonance Audio VC100S 100W 70V Volume Controls

The VC100S volume controls offer precise, stainless steel volume adjustment for any 70V sound system. Designed for commercial use, these controls ensure easy and reliable volume management in multiple zones. With a sleek design and a durable build, the VC100S provides smooth operation and is perfect for any outdoor or indoor commercial space that requires distributed sound control.

Atlas Sound GSS-G 70V All Weather Outdoor Landscape Loudspeakers

• Available in a Green Finish
• Convenient, Externally Adjustable 8, 16, & 32 Watt Taps in 70.7V Configuration Plus an 8Ω Bypass Mode
• Down firing speaker cannot collect dust or condensation and is protected by triple layer grille assembly
• Durable 8" Coaxial Speakers with a 360-Degree Horizontal Dispersion Pattern
• Revolutionary two-piece design allows for two-phase installation
• Shallow Base for Surface or Shallow Bed Mounting



Atlas Sound SM52T Wall Mount Loudspeakers

• 1" Ferrofluid Cooled Dome Tweeter
• 100HR Salt Spray Test Per ASTM B117
• All .25"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
• Atlas Sound POLYGUARD High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
• Atlas Sound TRX WAVEGUIDE- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
• Available in Black or White
• Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
• Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
• Five-Year Warranty
• Highly Efficient 5.25" Polypropylene Woofer
• Screwdriver Adjustable 30W 70.7V / 100V Transformer for Distributed Sound Applications and an 8Ω bypass
• Weather-Resistant Construction for Year-Round Indoor or Outdoor Use: UV-Resistant Talc Impregnated Polypropylene, Injection Molded, Weatherproof Enclosure Powder Coated Aluminum Grilles and All Brass Hardware Inserts
• OMNIMOUNT Compatible



Pure Resonance Audio RMA500BT 500W Commercial Bluetooth Mixer Amplifier

• 1 RU chassis, high-efficiency, and lightweight design
• MP3 media player supports USB, TF, Bluetooth and FM tuner
• Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
• Bass and treble tone controls
• Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
• Advanced high-performance power amplifier circuit
• 4-16Ω/70V speaker output
• 500W rated output power
• Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
• Remote control



Pure Resonance Audio VC100S 100W Plate Mounted 70V Volume Control - Stainless Steel

• Easy to clean surface - The easy cleaning stainless steel makes this the first choice for strict hygiene conditions, such as hospitals, kitchens and food processing plants
• Flexible - The VC100S is perfect for use with 25V, 70V, or 100V speakers and distributed audio systems
• Versatile - This volume control provides high-quality audio level adjustment of single or multiple speaker lines
• Modern appearance - The sleek easily maintained surface of stainless steel and black skirted volume control knob provides a modern and attractive appearance
• High-quality adjustment - The attenuator provides excellent frequency response, low insertion loss, and reliable performance
• Detachable euroblock connector - Removable phoenix-style terminal block with in-out throughputs accommodates up to 14G speaker wire

• (8) Atlas Sound GSS-G 70V All Weather Outdoor Landscape Loudspeakers
• (6) Atlas Sound SM52T 5.25" 2 Way Weather Resistant Speakers
• (1) Pure Resonance Audio RMA500BT 500W Commercial Bluetooth Mixer Amplifier
• (4) Pure Resonance Audio VC100S 100W 70V Volume Controls - Stainless Steel
• (1000 ft) West Penn AQ226 14/2 Aquaseal Fire-Alarm Cable
