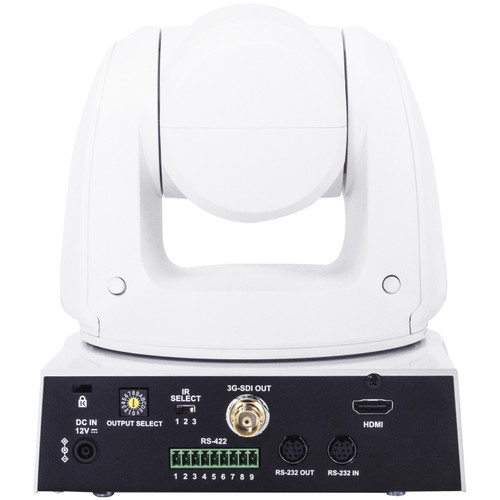

Back of Marshall CV620 3G-SDI/HDMI PTZ Camera

Shure Microflex MXCW640 Wireless Conference Unit with Microphone

Shure Microflex MXCW640 Wireless Conference Unit

Shure Microflex MXC416DF 16" Dualflex Gooseneck Microphone

Shure Microflex MXCWAPT Access Point Transceiver

Inputs on Shure Microflex MXCWAPT Access Point Transceiver

Shure Microflex MXCWNCS Networked Charging Station

ART USB Dual Pre Two Channel Preamp with USB

Back of ART USB Dual Pre Two Channel Preamp with USB

By Marshall Electronics

Conference Room Audio Video System with 20x Optical Zoom Camera and 6-Person Shure Microflex Complete Wireless System (Discontinued Components)

Name: Conference Room Audio Video System with 20x Optical Zoom Camera and 6-Person Shure Microflex Complete Wireless System (Discontinued Components)
Brand: Marshall Electronics
SKU: CFSS-CV6206MXCW640

Write a Review

Part #:

CFSS-CV6206MXCW640

Model #:

CFSS-CV6206MXCW640

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This audio system for video conference features a Marshall CV620 3G-SDI/HDMI PTZ camera with 20x optical zoom and six Shure MXCW wireless conferencing units that combine a gooseneck microphone, loudspeaker, and user controls in an integrated wireless unit that complements any meeting space.

Description

Inside the Design

This conference room audio video system features a Marshall CV620 3G-SDI/HDMI PTZ camera with 20x optical zoom and six Shure Microflex MXCW640 wireless conferencing units each with a loudspeaker, user controls, and a MXC416DF 16" gooseneck microphone perfect for any meeting room space with flexible seating. Each conference unit can be configured as Chairman, Delegate, Listener, or Ambient role.

Key System Features:

Marshall CV620 HD PTZ Camera captures crisp HD video with the added versatility of a smooth pan-tilt-zoom chassis and 20X optical zoom block
From flexible meeting spaces to high profile historic venues, Microflex Complete Wireless goes anywhere your meetings take you
RF interference can ruin a meeting with distracting noise and signal dropouts. Microflex Complete Wireless automatically detects and avoids interference to keep the meeting uninterrupted
Art USB Dual Pre is a full-featured high quality dual portable preamplifier and computer interface packed into a compact rugged case

About the System Components

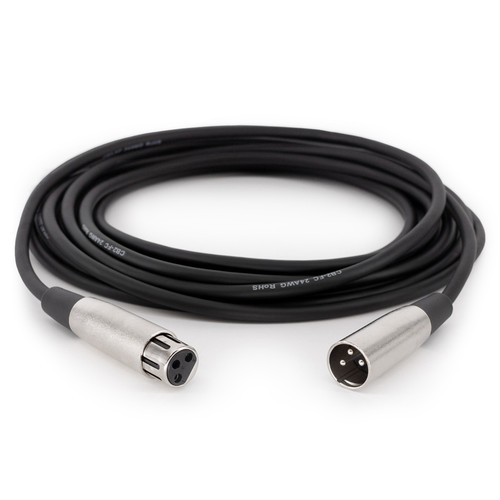

This meeting room audio video system includes a Marshall CV620 3G-SDI/HDMI PTZ camera with 20x optical zoom, six Shure Microflex MXCW640 wireless conference units with six MXC416DF 16" Dualflex cardioid gooseneck microphones, a Shure Microflex MXCWAPT access point transceiver, a Microflex MXCWNCS networked charging station, an ART USB Dual Pre two-channel preamp with USB and a 20' CBI MLC-20 LowZ XLR microphone cable.

Not sure if this is the right Conference Room Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

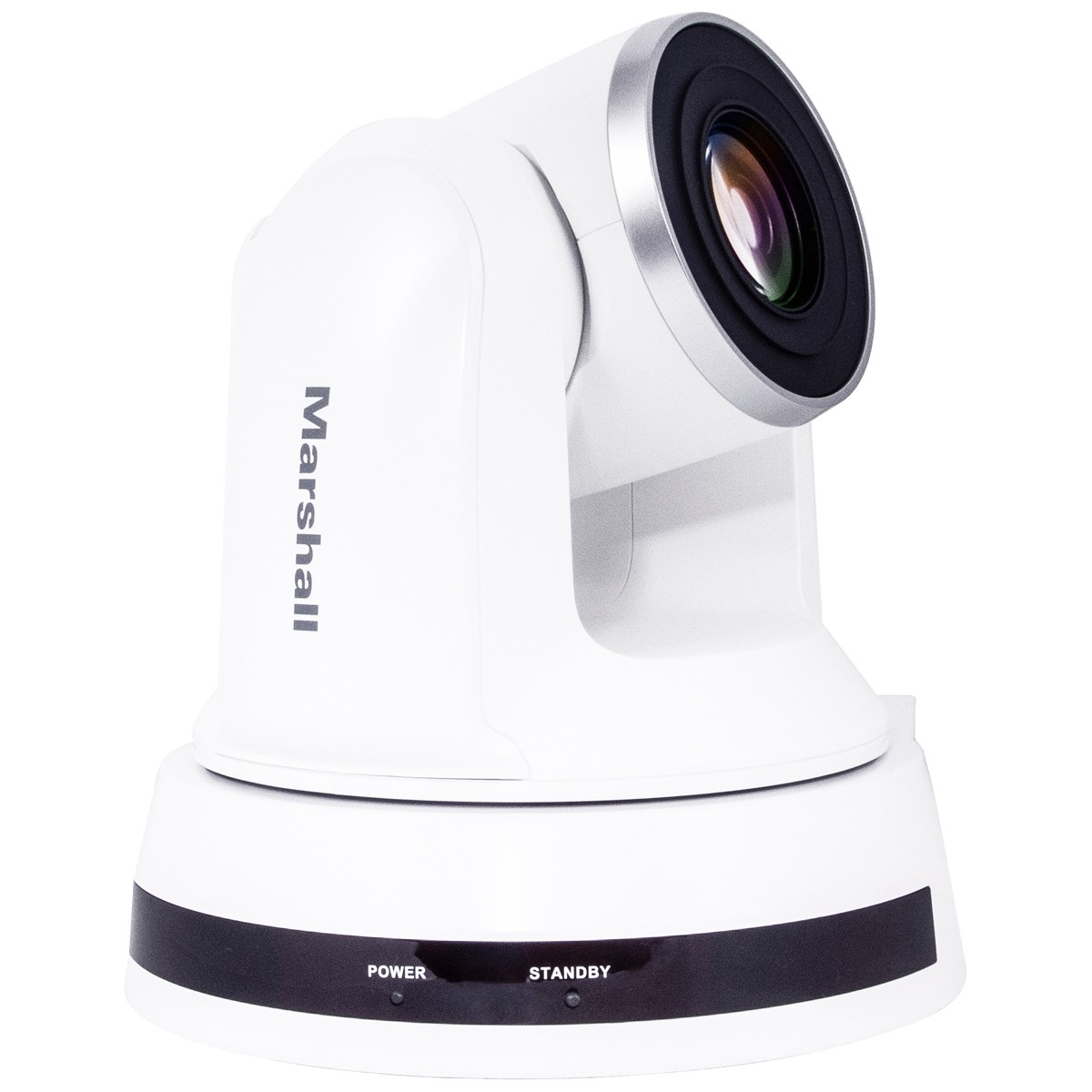

Marshall CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom:

2-megapixel 1/2.8-inch HD sensor
HD output: 1920 x 1080i, 1920 x 1080p, 1280 x 720p
High speed: 60, 59.94, 50, 30, 29.97, and 25 fps
20X optical zoom (4.7~94 mm/ F1.6~3.5) with 12X digital zoom
340° horizontal pan/ 120° vertical tilt
Smooth synchronous pan, tilt, zoom, and focus for professional transitions
3G/HDSDI (BNC) and HDMI simultaneous video outputs
Variable Transition Speeds: 5~300° per second with optional motionless transition
Supports RS232/RS422 remote control interface
Compatible with most integrated video management systems
Mountable via table, wall or ceiling (ceiling mount included). Optional wall mount (CV6XX-WMW)

Shure Microflex MXCW640 Wireless Conference Units:

10-pin modular lockable connection for MXC-series gooseneck microphones
4.3 inch color touchscreen displays user controls, voting or meeting information
Built-in loudspeaker remains on when microphone is activated
Speak and mute/function buttons with LED status indicators
NFC ID card slot for participant identification
Dual 3.5mm headphone jacks with volume controls
SB930 removable rechargeable Li-Ion battery (included) provides over 11 hours of runtime

Shure Microflex MXC416DF 16" Dualflex Gooseneck Cardioid Conference Microphones:

Flexible gooseneck (single or dual bend)
Includes Microflex cardioid capsule
Compatible with Microflex cartridges in other polar patterns
CommShield® Technology for improved immunity to RF noise
Two-color illuminated light ring on microphone capsule
Snap-fit foam windscreen (included)
10-pin modular connector
High close-talk SPL level
Low self-noise

Shure Microflex MXCWAPT Access Point Transceiver:

Controls up to 125 MXCW640 wireless conference units
Bi-directional wireless connection provides audio to and from conference units and enables real-time control of all settings
Operates in 2.4 GHz / 5 GHz frequency bands, including DFS spectrum
Automatic frequency coordination, interference detection and avoidance
Dante digital audio (10 inputs/10 outputs)
Analog audio input and output (XLR)
One Ethernet cable for audio, control, and PoE power
AES-128 encryption for enhanced privacy
Display for basic system configuration without a laptop
LEDs indicate power, wireless connection, and network status
Includes wall / ceiling mounting plate

Shure Microflex MXCWNCS Networked Charging Station:

Accommodates up to 10 SB930 rechargeable batteries
5-segment LEDs on the unit display charge status individually for every battery
RJ-45 Ethernet connection enables remote monitoring of battery charge status in hours and minutes via Microflex Complete Wireless graphical user interface
Charges 10 batteries to 50% charge in 1.5 hours, 100% charge in 4 hours
Selectable storage mode partially discharges batteries for long-term storage or shipment
Includes hardware for wall and rack mounting
Includes IEC power cable

ART USB Dual Pre Two Channel Preamp with USB:

USB Connectivity to Desktop and Laptop Computers
Low Noise Fully Balanced XLR and 1/4-inch TRS Combi Inputs
Up to 48 dB of Clean Gain
Built-in Low Noise Phantom Power Supply
Latency Free Monitoring Mix and Level Controls
Independent Channel Gain Controls
1/4-inch TRS Balanced Monitor and 1/8-inch Headphone Monitor Outputs
Compact, Stackable all Aluminum Chassis
Flexible 3-way Power from USB, External Supply, or 9 Volt Battery
