Conference Room Discussion System with Sennheiser ADN-W Wireless Conference System (Discontinued Components)

Inside the Design

The ADN conference system creates the ideal environment for focused discussions. Whether wired or wireless: ADN guarantees maximum reliability, ultimate speech intelligibility, and is flexibly combinable. Press conference, panel discussion, plenary session. You can rely on the ADN conference system in any situation, as it was developed with a focus on maximum operational safety. The automatic frequency management of the wireless version ADN-W sets new standards, guaranteeing the greatest possible bandwidth for the available channels as well as a robust, fail-safe transmission. This system can be easily and flexibly adjusted for groups of different sizes. The system monitoring is done conveniently by PC software or by a media control protocol via app. Furthermore, there are different types of microphones for miscellaneous requirements to choose from.

Key System Features:

• Dynamic frequency management for interference-free operation
• Can be used all over the world due to up to 28 license-free frequencies
• Secure data transmission with 128-bit-AES encryption
• Ease of use due to automatic configuration of the system
• Wireless conference units with up to 20 hrs operating time
• Easy expansion of the conference system and hybrid operation between wired and wireless conference units



About the System Components

This wireless discussion system includes a Sennheiser ADN CU1 digital discussion central unit, a Sennheiser ADN-W AM antenna module, one ADN-W C1 wireless chairperson unit with two control key buttons to cancel/mute microphones, five ADN-W D1 wireless delegate units, and six ADN-W MIC 15-39 15.4" gooseneck microphones with supercardioid capsules.

Not sure if this is the right Conference Room Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

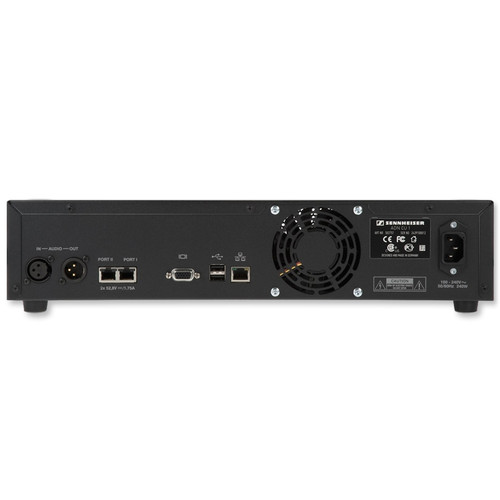

Sennheiser ADN CU1 Digital Discussion Central Unit:

• Supplies and controls up to 40 discussion units
• Integrated PC with pre-installed control software
• Graphical user menu in seven languages
• Transformer balanced XLR In- and Output
• Ethernet, USB, and VGA interfaces
• Permanent malfunction monitoring and error diagnostics
• Low-noise fan for in-room use



Sennheiser ADN-W AM Antenna Module:

• Automatic frequency selection mode
• Rugged metal housing
• Powered via ADN bus or NT 12-50C DC power supply
• AES 128-bit encryption



Sennheiser ADN-W C1 Wireless Chairperson Unit:

• Interference-free and eavesdropping-proof transmission in the 2.4 GHz and 5 GHz frequency bands
• 128-bit AES encryption
• Exchangeable ADN-W BA Lithium-Ion battery pack for more than 20 hours operating time
• Screw-on microphone socket for connection of an ADN-W MIC gooseneck microphone
• Broadband twin loudspeaker system
• Integrated DSP limiter
• 3.5 mm headphone socket and headphone volume control
• Next key and Priority key for controlling delegate units
• Modern design



Sennheiser ADN-W D1 Wireless Delegate Unit:

• Interference-free and eavesdropping-proof transmission in the 2.4 GHz and 5 GHz frequency bands
• 128-bit AES encryption
• Exchangeable ADN-W BA Lithium-Ion battery pack for more than 20 hours operating time
• Screw-on microphone socket for connection of an ADN-W MIC gooseneck microphone
• Broadband twin loudspeaker system
• Integrated DSP limiter
• 3.5 mm headphone socket and headphone volume control
• Modern design



Sennheiser ADN-W MIC 15-39 15.4" Gooseneck Microphone with Supercardioid Capsule:

• Detachable gooseneck microphones
• Super-cardioid capsule
• High rejection of lateral sounds and background noise
• Microphones support long speaking distances

Brochure

• (1) Sennheiser ADN CU1 Digital Discussion Central Unit
• (1) Sennheiser ADN-W AM Antenna Module for Wireless Conference Units
• (1) Sennheiser ADN-W C1 Wireless Chairperson Unit
• (5) Sennheiser ADN-W D1 Wireless Delegate Units
• (6) Sennheiser ADN-W MIC 15-39 15.4" Gooseneck Microphones with Supercardioid Capsule
