Conference Table Microphone Sound System with SoundTube Speakers Crown CDi 1000 Amplifier and 7 Shure MX395 Low Profile Boundary Microphones

Inside the Design

This conference room sound system is designed to deliver exceptional audio coverage and crystal-clear voice reproduction for meetings, presentations, training sessions, and collaborative environments. Featuring six in-ceiling speakers, two high-power surface-mount speakers, seven low-profile boundary microphones, an 8-channel automatic mixer, a digital wireless combo system, a professional power amplifier, and an advanced loudspeaker management processor, this system ensures seamless communication and dependable performance. Engineered for intelligibility, consistency, and ease of use, this complete setup is ideal for large conference rooms, training rooms, and meeting spaces requiring discreet yet powerful audio reinforcement.

Sound System Features:

• Complete conference room audio solution with ceiling speakers, surface-mount speakers, boundary mics, and wireless microphone system
• Low-profile boundary microphones provide excellent speech pickup with minimal visual presence
• Automatic mixer ensures clean, clear audio by activating only microphones in use
• Professional power amplifier with onboard DSP for flexible system tuning
• Digital wireless combo system offers high-quality handheld and lavalier microphone options
• Loudspeaker management system provides AutoEQ and advanced signal processing for optimal performance
• Includes high-quality XLR and prep cables for clean, reliable connectivity
• Suitable for large conference rooms, training rooms, boardrooms, and presentation environments

About the System Components

SoundTube CM500i 5.25" In-Ceiling Speakers

Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. Each speaker features a 5.25" polypropylene woofer and a 1" convex titanium tweeter with FerroFluid cooling, mounted to a cast-aluminum baffle and heat sink. The rapid-installation blind-mounting system accommodates a wide range of ceiling thicknesses. Additional features include a six-position selectable tap switch for 25V, 70V, and 100V applications, tool-free magnetic grille assembly, and WX-EnviroGuard magnetic grilles for enhanced environmental protection. UL 1480 and 2043 approved, with included tile bridge, conduit plate, Euroblock connector, and paint mask.

SoundTube SM500i-II-WX 5.25" High Power Surface Mount Speakers

These high-power surface mount speakers deliver long-throw performance and high SPL output using a 5.25" polypropylene woofer and a 1" horn-loaded convex titanium dome tweeter. With an average sensitivity of 87 dB, they provide strong output with reduced amplification requirements. Designed for indoor and outdoor applications, they include weatherized components, a six-position tap switch, and an aluminum grille with powder-coated finish. The tool-free SpeedLever captured ball mounting system offers precise vertical and horizontal aiming for flexible installation. CE approved and complete with ball mount, safety cable, Euroblock connector, and weather boot.

Crown CDi 1000 Power Amplifier

The Crown CDi 1000 is a rugged and lightweight power amplifier engineered for installed sound systems. It features a front-panel LCD for intuitive configuration and onboard DSP for loudspeaker processing. Additional capabilities include a universal switch-mode power supply, proportional-speed fan cooling, removable Phoenix-style inputs, and barrier strip outputs supporting low-Z and 70V/140V loads. Built-in short-circuit protection and comprehensive indicators ensure reliable, long-term performance.

Shure SCM810 8-Channel Automatic Mixer

This eight-channel automatic mixer uses Shure IntelliMix technology to activate only microphones currently in use, greatly reducing unwanted noise from open mics. Designed for installed sound, the SCM810 includes adjustable per-channel EQ, 48V phantom power, active balanced mic or line-level inputs, logic control for microphone activation, and linking capacity for up to 400 microphones. Its highly RF-resistant chassis ensures dependable operation in demanding environments.

Shure MX395 Microflex Low Profile Boundary Microphones

The Microflex Low Profile Boundary microphones are engineered for superior speech pickup while maintaining an extremely discreet tabletop presence. Ideal for meeting and conference rooms, these microphones offer excellent sound quality with minimal visual impact. They are available in multiple pickup patterns and colors to match any table design and installation requirements.

Shure SLXD124/85M Digital Wireless Combo System

The Shure SLXD124/85M digital wireless combo system delivers outstanding clarity and reliable RF performance. This system includes an SLXD2 handheld transmitter with an SM58 microphone capsule and an SLXD1 bodypack paired with a WL185M lavalier microphone. Perfect for presentations, lectures, and events, the system provides consistent digital audio quality, easy setup, scalable operation, and dependable performance for all-day conferences or evening events.

DBX DriveRack PA2 Loudspeaker Management System

The DriveRack PA2 offers advanced AutoEQ and AFS algorithms, an input delay module, and full Ethernet control via Android, iOS, Mac, or Windows. Updated Wizards streamline setup, while the processor ensures precise tuning and protection for professional loudspeaker systems. The PA2 continues the legacy of reliable, powerful, and affordable loudspeaker management for installed audio environments.

SoundTube CM500i 5.25" In-Ceiling Speakers

• BroadBeam waveguide technology delivers consistent dispersion up to 10 kHz for excellent room coverage and speech clarity
• Features a 5.25" polypropylene woofer and 1" convex aluminum tweeter with FerroFluid cooling mounted to a cast aluminum baffle and heat sink
• Rapid blind-mount fixed-wing installation system fits ceilings from 0.25" to 1.69"
• Tool-free magnetic grille and bezel allow fast installation and easy in-field painting
• Durable iridite-plated steel grille with powder-coat finish
• Six-position tap selector supports 25V, 70V, 100V, and 8-ohm direct operation
• 88.5 dB average sensitivity for high output with reduced amplification requirements
• UL 1480 Rev. 5, UL 2043, CE, and Mil-spec 810 rated
• Includes tile bridge, Euroblock connector, and paint mask
• Optional pre-construction brackets, junction box, and square grilles available
• Available in black or white with optional custom color matching



SoundTube SM500i-II-WX 5.25" High Power Surface Mount Speakers

• WX Weather Guard technology protects internal components from water and harsh conditions
• ZeroReflection enclosure design improves acoustic accuracy and cabinet rigidity
• Aluminum grille with protective powder-coat finish for long-lasting durability

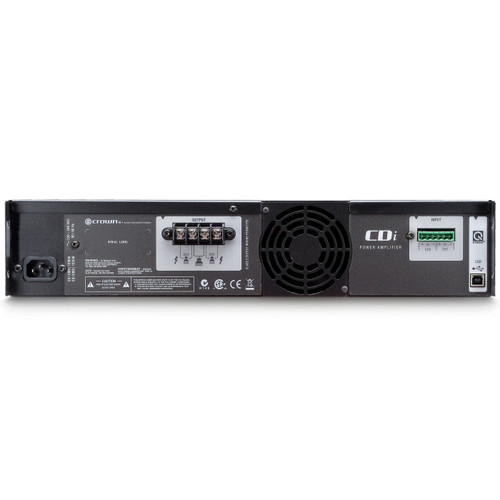

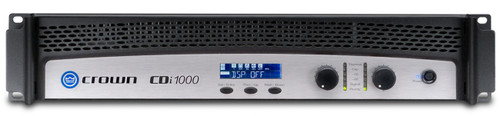

Crown CDi 1000 Power Amplifier

• Supports 2-, 4-, and 8-ohm loads, as well as 70V and 140V distributed speaker systems
• Efficient switch-mode universal power supply
• Front-panel LCD screen simplifies configuration and setup
• Onboard DSP provides crossovers, EQ, filters, delay, and output limiting
• Up to 20 user-defined DSP presets can be stored

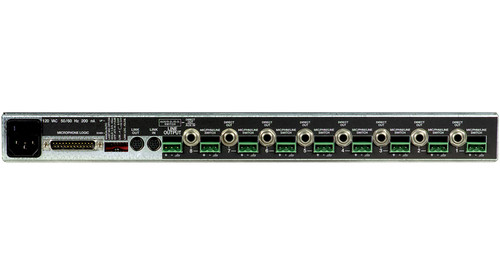

Shure SCM810 8-Channel Automatic Mixer

• Eight balanced mic/line inputs with Phoenix block connectors
• Unbalanced 1/4" auxiliary-level input for external audio devices
• Eight unbalanced 1/4" direct line-level outputs for independent routing
• Balanced master line-level output on Phoenix block connector
• Selectable 46V phantom power per channel
• Peak output limiter with adjustable threshold
• Full rack-width chassis with single rack-unit height

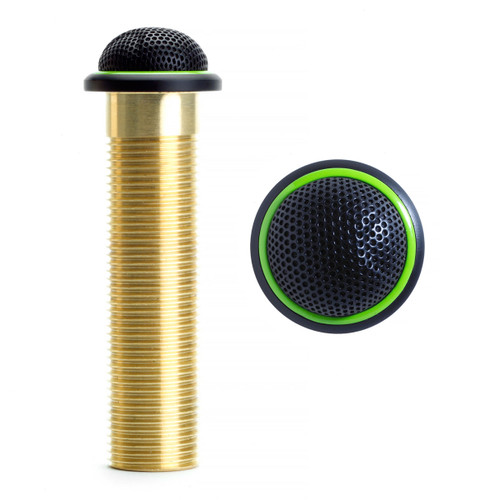

Shure MX395 Microflex Low Profile Boundary Microphones

• Ultra-compact 1.25" diameter low-profile design blends seamlessly into conference tables
• Available in cardioid, omnidirectional, and bidirectional pickup patterns
• Wide dynamic range and smooth frequency response
• Color options include black, white, and aluminum
• Optional bi-color LED status indicator with -LED models
• Logic input for remote LED control
• CommShield technology protects against RF interference

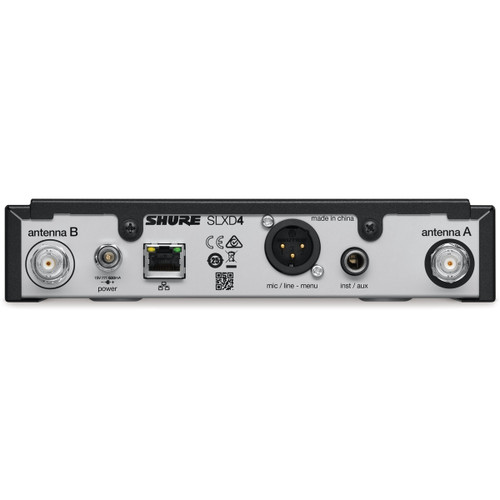

Shure SLXD124/85M Digital Wireless Combo System

• Extended 20 Hz to 20 kHz frequency response (microphone dependent)
• 120 dB dynamic range ensures high-quality, distortion-free audio
• Digital predictive switching diversity for enhanced RF stability
• 44 MHz tuning bandwidth (region dependent)
• Up to 32 channels available per frequency band
• Up to 10 compatible systems per 6 MHz TV band or 12 per 8 MHz band
• IR sync enables fast and easy transmitter-to-receiver pairing
• Operates up to 8 hours with 2 AA batteries or optional Shure SB903 rechargeable battery



DBX DriveRack PA2 Loudspeaker Management System

• Updated Setup Wizard for quick and accurate configuration
• Refined AutoEQ for improved room tuning
• Next-generation AFS feedback suppression for clean, feedback-free audio
• Remote control via Android, iOS, Mac, or Windows
• Includes dbx compression, graphic EQ, and 8-band parametric EQ on inputs
• Subharmonic synthesis enhances low-frequency energy
• Flexible crossover options for full-range, 2-way, and 3-way systems
• 8-band parametric EQ on outputs provides detailed speaker tuning
• dbx limiting protects speakers and amplifiers
• Driver alignment delays ensure phase-coherent performance

• (6) SoundTube CM500i 5.25" In-Ceiling Speakers
• (2) SoundTube SM500i-II-WX 5.25" High Power Surface Mount Speakers
• (1) Crown CDi 1000 Power Amplifier
• (1) Shure SCM810 8-Channel Automatic Mixer
• (7) Shure MX395 Microflex Low Profile Boundary Microphones
• (1) Shure SLXD124/85M Digital Wireless Combo System with SM58 Handheld and WL185M Lavalier Microphone
• (1) DBX DriveRack PA2 Loudspeaker Management System

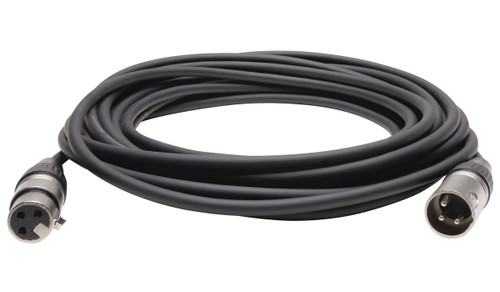

• (7) Pure Resonance Audio XLR-25 Microphone Cables - 25ft
• (3) Pure Resonance Audio XLRF-3-PREP Female XLR to Prep Patch Cables - 3ft
• (3) Pure Resonance Audio XLRM-3-PREP Male XLR to Prep Patch Cables - 3ft
• (500') West Penn 225 Non-Plenum Audio Speaker Wire
