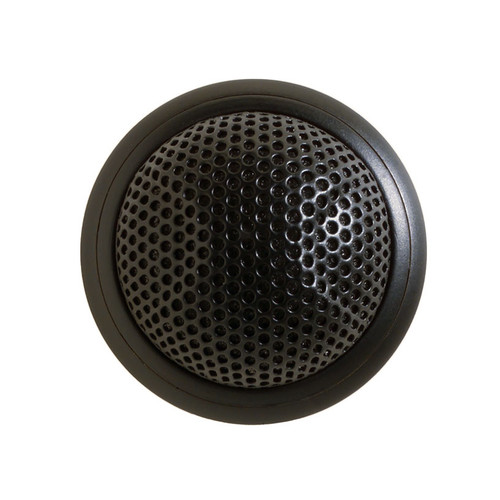

The Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.
| Type | Condenser (electret bias) |
|---|---|
| Frequency Response | 50–17000 Hz |
| Polar Pattern | MX395/O: Omnidirectional MX395/C: Cardioid MX395/BI: Bidirectional |
| Output Impedance | EIA Rated at 150 Ω (170 Ω actual) |
| Output Configuration | Active balanced |
| Sensitivity (at 1 kHz , open circuit voltage) | Cardioid: –35 dBV/Pa (18 mV) Omnidirectional: –28 dBV/Pa (42 mV) Bidirectional: –37 dBV/Pa (14 mV) |
| Maximum SPL (1 kHz at 1% THD, 1 kΩ load) | Cardioid: 121 dB Omnidirectional: 114 dB Bidirectional: 123 dB |
| Equivalent Output Noise (A-weighted) | Cardioid: 28 dB SPL Omnidirectional: 21 dB SPL Bidirectional: 29 dB |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | Cardioid: 66 dB Omnidirectional: 75 dB Bidirectional: 65 dB |
| Dynamic Range (1 kΩ load at 1 kHz) | Cardioid: 93 dB Omnidirectional: 93 dB Bidirectional: 94 dB |
| Common Mode Rejection | 45 dB minimum (10 Hz to 100 kHz) |
| Preamplifier Output Clipping Level | -8 dBV (0.4 V) (1% THD) |
| Polarity | 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector. 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector. |
| Logic Connections | LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V |
| Environmental Conditions | Operating Temperature: -18–57 °C (0–135 °F) Storage Temperature: -29–74 °C (-20–165 °F) Relative Humidity: 0–95% |
| Power Requirements | 11–52 Vdc phantom, 2.0 mA |
| Dimensions (H x Dia) | 4" (101 mm) x 1.25" (32 mm) |
| Net Weight | 0.30 lbs (0.136 kg) |
| Shipping Weight | 0.825 lbs (0.374 kg) |
MX395B/C - Black condenser, cardioid, 3-pin XLR

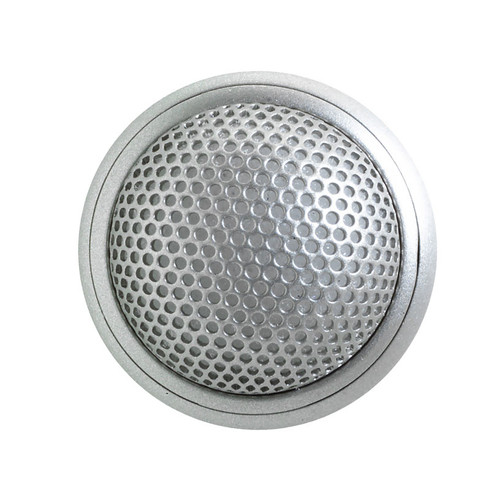

MX395AL/C - Brushed aluminum condenser, cardioid, 3-pin XLR
MX395B/C-LED - Black condenser, cardioid, controllable LED, 5-pin XLR, female connector included
MX395B/O - Black condenser, omnidirectional, 3-pin XLR
MX395B/O-LED - Black condenser, omnidirectional, remoteable LED, 5-pin XLR, female connector included
MX395AL/O - Brushed aluminum condenser, omnidirectional, 3-pin XLR

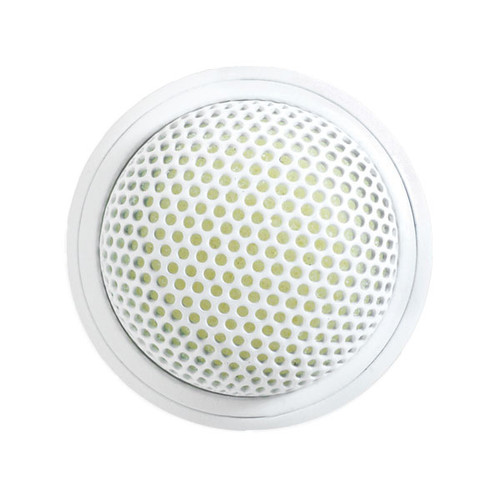

MX395W/O - White condenser, 3-pin XLR
MX395B/BI - Black condenser, bidirectional, 3-pin XLR
MX395AL/BI - Brushed aluminum condenser, bidirectional, 3-pin XLR
MX395B/BI-LED - Black condenser, bidirectional, controllable LED, 5-pin XLR, female connector included
