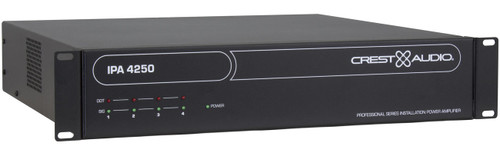

Crest Audio IPA-4250 Multi-Channel 4 x 250W Power Amplifier (Discontinued)

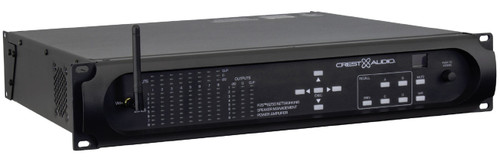

The Crest Audio® IPA™-4250 power amplifier is designed to connect quickly and easily to the Crest Audio PZS™-8250 powered zone mixer amplifier and provide four additional channels of efficient Class D audio amplification for the PZS-8250 output channels 5, 6, 7 and 8. The IPA-4250 can also be used as a standalone four-channel power amplifier using four electronically balanced line inputs.

The IPA-4250 includes an RJ45 jack on its rear panel to receive signals from channels 5 – 8 of the connected PZS-8250 via a single cable. Audio inputs can also be made to each channel via each of four electronically balanced line inputs with Euro-style connectors. Each of the four amplifier outputs can be configured individually for low-impedance (4-ohm), 25V, 70V or 100V constant voltage operation. The power amplifier section includes SPS speaker protection system circuitry and a highpass filter to protect speaker transformers from low-frequency overload.

The IPA-4250’s front panel includes a power LED as well as Signal and SPS speaker protection system indicator LEDs for each channel. The IPA-4250 is housed in a rack-mountable 2U steel chassis and features a voltage selector switch for 120V or 240VAC operation.

GENERAL:

• Four-channel Class D power amplifier with 250 watts per channel
• SPS speaker protection system
• High-pass fi lter to protect speaker transformers from low frequency overload
• 2U rack-mount chassis



FRONT PANEL:

• Power, Signal and SPS speaker protection system indication LEDs

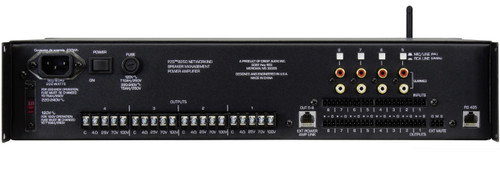

REAR PANEL:

• RJ45 4-channel input connector for simple connection to PZS™-8250 outputs 5 – 8
• Four electronically balanced Mic/Line inputs with Euro-style connectors
• 4 Ohm, 25V, 70V or 100V outputs, configurable per channel
• Line voltage switch for 120V or 240VAC operation
• Power switch

Spec Sheet
