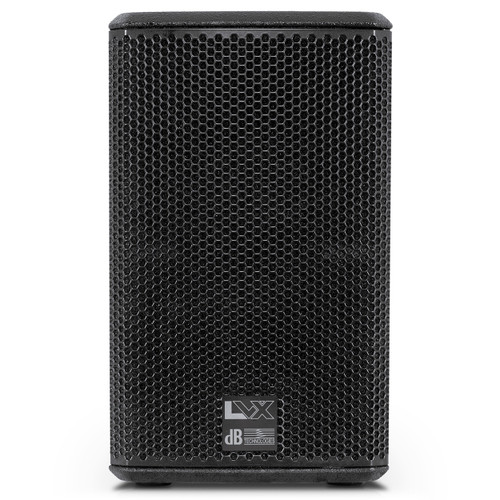

dBTechnologies LVX 8 400W 8" Active Speaker

Part #:
LVX 8
Model #:
LVX 8
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The dBTechnologies LVX 8 features an 8" woofer and a 1" compression driver on a 90° x 70° rotatable horn. This last feature is particularly valued even in case of use as stage monitor, thanks to the rear angle of 40°.

Description

dB Technologies LVX 8 400W 8" Active Speaker

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful and in line with the highest professional standards.

Coming from the experience gained in designing touring products as the renowned DVX series, the new LVX series offers smart solutions with special attention to the needs of fixed and portable installations.

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics without problems and with a high level of performance.

LVX 8 features an 8" woofer and a 1" compression driver on a 90° x 70° rotatable horn. This last feature is particularly valued even in case of use as stage monitor, thanks to the rear angle of 40°.

The LVX 8 is equipped with a 400W DIGIPRO® digital amp module. This highly efficient amplifier provides high power, limited weight and is totally silent due to the low thermal dissipation and no cooling fans required.

The digital preamp with DSP controls audio crossover, frequency response, active peak RMS-thermal limiter, and acoustic alignment. A selector enables to select one of two different EQ curves - "FLAT" or "PROCESSED" - to provide the right sound in any occasion.

The enclosure is made of a 12mm MDF with a look very elegant and refined. The scratch-resistant finishes are available in both black and white. There is a recessed handle on top, 10x M8 rigging points and a Ø36mm pole mount cup to allow this speaker to be used in any kind of installation or gigs.

Finally, there are two types of wall-mounting brackets; one with pan-tilt adjustment and fixed locking system, the other with even quick-release pins, ideal for all those events where you need to frequently remove the speaker without losing the exact mechanical positioning.

Features

  • 2-way active speaker
  • 400W Class-D Digipro® amplifier
  • 8" woofer (1.5" voice coil)
  • 1" compression driver
  • 90° x 70° directivity
  • Rotatable compression driver horn
  • AD/DA 24 bit \ 48 kHz
  • EQ presets selection
  • Peak, RMS, Thermal Limiter
  • 10x M8 rigging points
  • No cooling fan

Specifications

Dimensions (H x W x D) 16.54" (420 mm) x 10.24" (260 mm) x 10.24" (260 mm)
Weight 22.27 lbs (10.1 kg)
