dBTechnologies LVX XM12 600W 12" 2-Way Active Monitor (Discontinued)

dB Technologies LVX XM12 600W 12" 2-Way Active Monitor

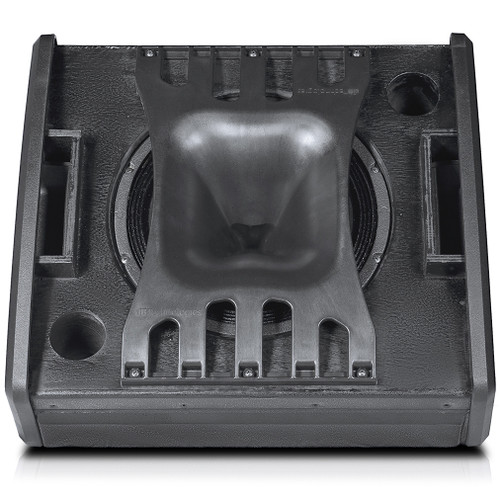

Enhanced Coaxial Horn Design

LVX XM’s design enhances the benefits of coaxial horn wedges concept. dBTechnologies designed a horn that not only shapes high frequencies’ directivity but also acts as a phase plug for the woofer, boosting and lighting up the vocal band, thanks also to the advanced DSP featuring FIR filters processing.

As a result, not only the horn contributes to deliver a bright audio performance with a uniform throw pattern, but also contributes to reduce the overall dimensions of the system and protect the internal components, reinforcing the cabinet structure.

8 Preset Equalizations for All Stage Requirements

LVX XM monitors feature an advanced DSP offering eight variable presets in order to easily adapt to different stage requirements and to the varying demands of vocalists, instrumentalists as well as audio playback applications.

Solid and Road Ready

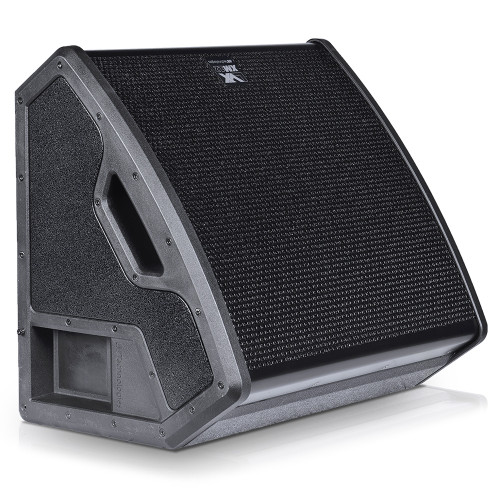

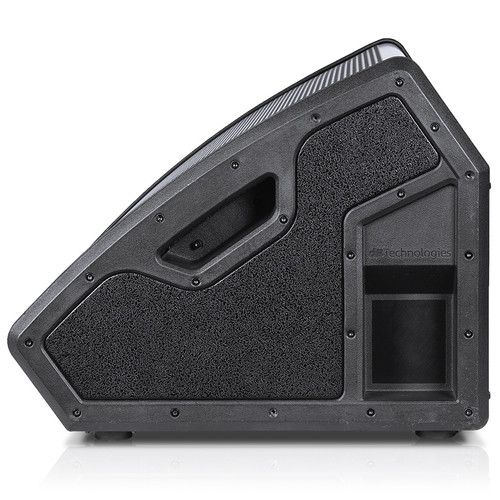

The cabinets are constructed in sturdy plywood and comes with 2 integrated side handles allowing easy transport and stage set up operations. A pole mount cup on one side allows you to put the system on a pole for vertical use (e.g. as drummer monitoring or for audio playback applications).

• 12"/1.4" Coax Active Monitor
• Tweeter: 1", 1.4" Coil
• 600W RMS / 1200 Peak
• 56Bit DSP
• 127dB max SPL
• Digipro® G3 Amp
• 90° x 70° Horn
• PowerCON in/link

Manual
