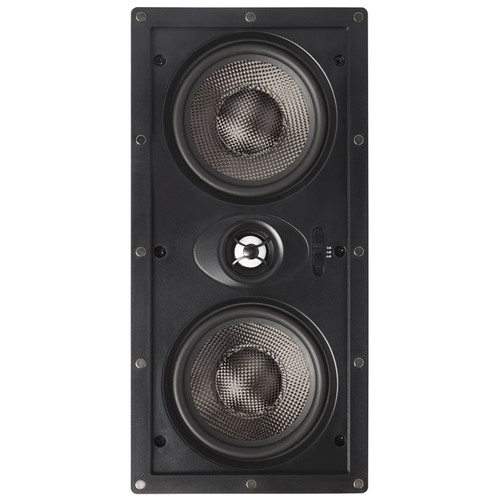

Denon Professional DN-205W Dual 5.25" 2-Way In-Wall 70V Speaker
Write a Review
Denon Professional DN-205W Dual 5.25" 2-Way In-Wall 70V Speaker
Part #:
DN205WXUS
Model #:
DN-205W
Availability:
Contact Us for Availability
Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
Denon Professional DN-205W Dual 5.25" 2-Way In-Wall Speaker (EN 54-24)
The Denon Professional DN-205W two-way wall speaker is designed for commercial installations and is compatible with 70V/100V/8-ohm systems. The assembly is composed of two 5-1/4 inch carbon fiber woofers for superior bass and mid-range reproduction, and a 1-inch silk dome aluminum tweeter for smooth high-end.
Along with full-range response, the unit also features a two position high-frequency roll-off for additional acoustic control. The paintable, magnetic grille enables the DN-205W to completely blend into its surroundings for a professional, clean installation.
Features
- Two 5-1/4" carbon fiber woofers
- 1" silk and aluminum dome swivel tweeter
- Full-range frequency response
- 50W power handling (100W peak)
- Paintable, magnetic speaker grille
- EN 54-24 compliant
Specifications
| LF Driver | 2 x 5.25" (133 mm) carbon fiber woofers |
|---|---|
| HF Driver | 1" (25 mm) aluminum and silk swivel dome tweeter |
| Frequency Response | 62 - 20kHz |
| High-Frequency Roll-Off | Two positions, -3dB and -6dB |
| Power Handling | 50W RMS (100W peak) |
| Sensitivity | 88dB (1W/1m) |
| Speaker Connection | Push terminals for wire up to 14AWG |
| Regulatory Compliance | EN 54-24 |
| Transformer Power Taps | 70V: 30, 15, 7.5W 100V: 30, 15W Bypass: 8Ω |
| Cutout Hole | 13.3" (338 mm) x 6" (152 mm) |
| Wall Clearance | 3.66" (93 mm) |
| Dimensions (H x W x D) | 14.7" (373 mm) x 7.4" (187 mm) x 3.8" (98 mm) |
| Weight | 7.7 lbs (3.5 kg) |
DOCUMENTS
In The Box
- DN-205W Speaker
- Installation Template
- Speaker Grille

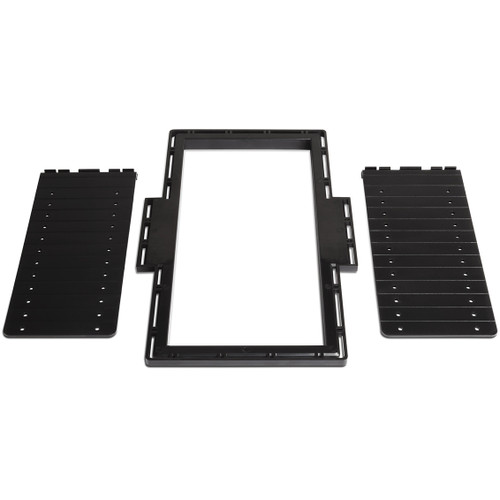

- Mounting Bracket
- User Guide
- Safety and Warranty Manual
