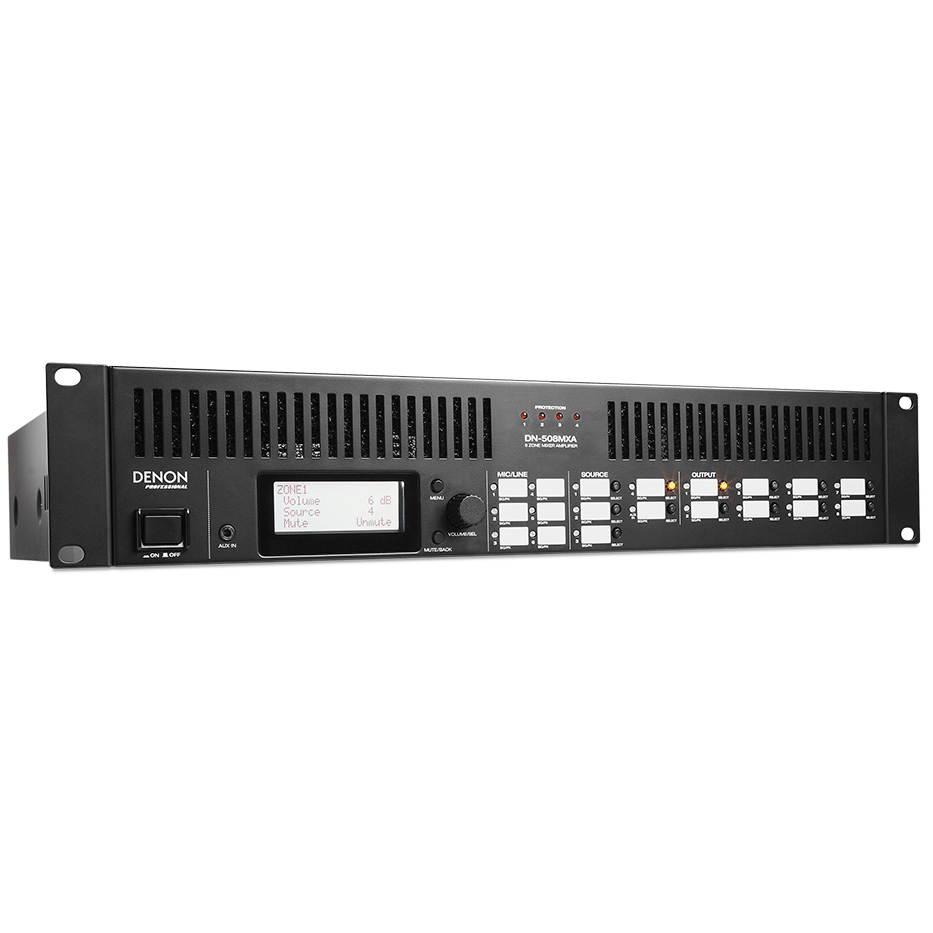

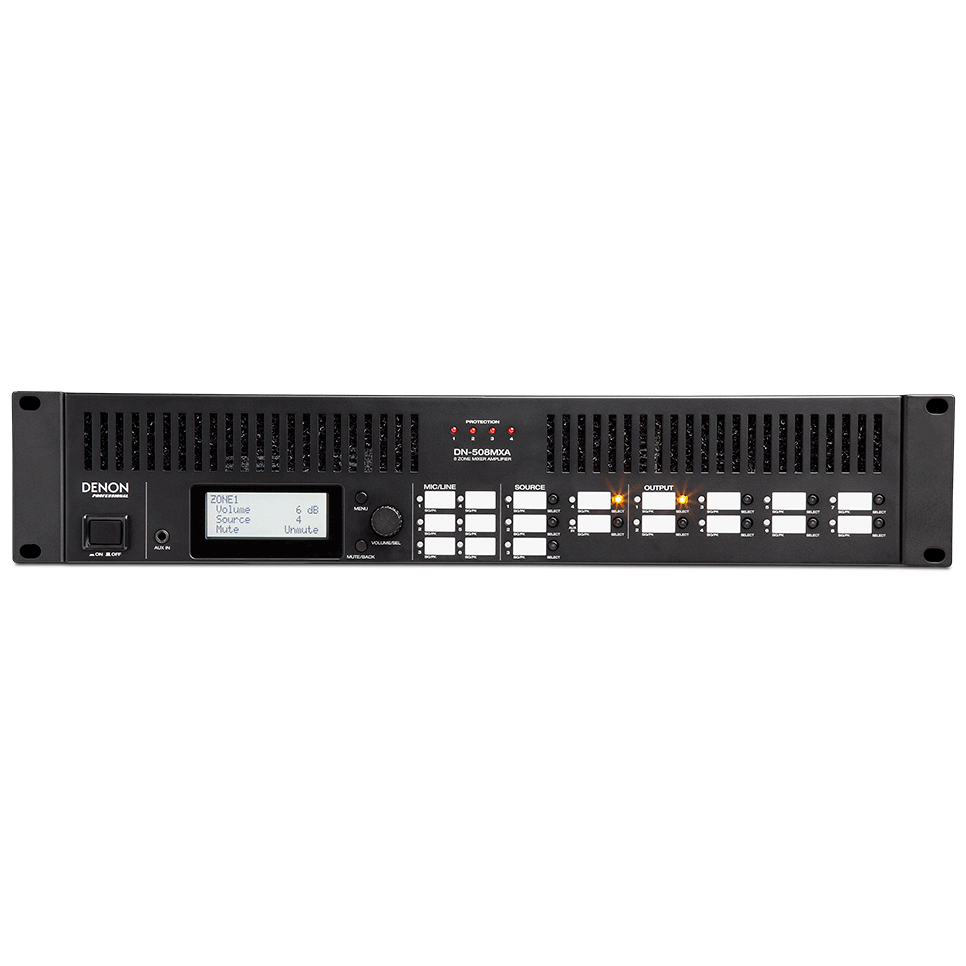

Denon Professional DN-508MXA 8 Zone Mixer with 4 Zone Amplifier (Discontinued)

Description

Details

Recognizing a crucial, unfulfilled need in the professional market for products that can command and manage a wide variety of audio sources through a single unit, the DN-508MX and 508MXA Zone Mixers are refreshingly uncomplicated, high-performance solutions for controlling and routing up to eight audio sources in multi-room venues. Special attention has been paid to the design of the front panel interface to make them intuitive and easy to operate, which makes the “learning curve” on these products very short. The 508MXA has on-board zone amplification for added flexibility when configuring a specific system with different requirements.

Typical applications include restaurants, hotels, museums, nightclubs, sports bars and large corporate offices. Both mixers have remote controllability via RS-232C and IP for the commercial installations. The DN-508MX and 508MXA also have several features dedicated for professional use such as a professional grade head-amp, MIC/LINE PAD, full BTL balanced outputs, 3-band EQ for inputs, 5-band EQ for outputs, Priority, Delay, Dynamics, system control application (Web remote), and scheduling function to operate automatically for optimum energy efficiency.

A Web-based GUI makes it simple to control every function of the unit, from whatever device is most convenient for the user.

Features

Features

6 mic/line inputs
4 ST inputs
1 aux input on front and rear
8 zone outputs
4 zone amplifier input
4 zone 4 Ohm / 8 Ohm output or 2 zone 70V/100V/BTL speaker output
Full BTL circuit for balanced output
Professional-grade grounding and sound quality
Remote controllability using TCP/IP, RS-232, and RS-422
3-band equalizer for all inputs
5-band equalizer for all zone outputs
Delay and dynamics function for all zone outputs

Specification

General
Frequency Response	20 Hz – 20 kHz (+0.5 dB)
Dynamic Range	> 109 dB (A-weighted)
Signal-to-Noise Ratio	> 89 dB (A-weighted)
Headroom	> 20 dB
Mic Input EIN	< -127 dBu (Rs = 150 Ω, DIN)
Mic Input CMRR	> 80 dB
Maximum Gain	88 dB (Mic Input to Master Output
Channel Separation	< -100 dB
THD	Mic/Line Inputs: < 0.05% ST Inputs: < 0.01%
Analog Inputs
Mic Inputs	Maximum: -40 to -20 dBu (+4 dBu) Unity: -60 to -40 dBu (-16 dBu)
Line Inputs	Maximum: -20 to 0 dBu (+24 dBu) Unity: -40 to -20 dBu (+4 dBu)
ST Inputs	Maximum: +18 dBV Unity: 0 dBV
Aux Inputs	Maximum: +18 dBV Unity: 0 dBV
Amp Inputs (Line)	Maximum: +24 dBu Unity: +4 dBu
Analog Outputs
Zone 1-8 Outputs	Maximum: +24 dBu Unity: +4 dBu
Speaker (Amp) Output	Low Impedance: 60W @ 8 Ohm / 4 Ohm Low Impedance BTL: 120W @ 8 Ohm / 4 Ohm, 2 Zone BTL High Impedance: 70V/120W, 100V/120W, 2 Zone BTL
Effects
Equalization (3-Band, Inputs)	SHH: 100 Hz – 20 kHz (+18 dB) PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0 SHL: 20 Hz – 20 kHz (+18 dB)
Equalization (5-Band, Outputs)	High PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0 Mid-High PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0 Mid PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0 Mid-Low PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0 Low PEQ: 20 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Delay	Attenuation: 0–1000 ms
8 Automatic Gain Control (AGC)	Compensation: 1–5 Response Time: 100–500 ms Noise Gate: < -80 dBFS
Priority Attenuation (1st & 2nd Priorities)	Threshold: -74 to -20 dBFS Attenuation: -∞ to 0 dB Attack Time: 0–300 ms Hold Time: 1–1960 ms Release Time: 3–4270 ms
Dynamics (Compressor/Limiter)	Threshold: -92 to -20 dBFS Ratio: 1.0:1 – 20.0:1, ∞:1 Attack Time: 0–120 ms Release Time: 3–4270 ms Gain: 0 to +20 dB Knee: Hard, 1–5
Auto Fade Out/In for Source Selector	Attenuation -30 dB Attack Time 100 ms Hold Time & Mixing 100 ms Release Time 100 ms
Communication
RS-232C	Connectors: 9-pin D-Sub female connector (Remote input), 9-pin D-Sub male connector (Remote Extend output) Speed: 9600/38400 bps Power: +5 V via D-Sub connection
RS-422	Connector: RJ-45 Speed: 38400 bps Terminal: 110 Ω on/off Power: +5 V via RJ-45 connection
Ethernet	Connector: LAN port Standards: Ethernet 10/100 Base
Other/General
Level Indicators	Mic/Line: 1 LED (green-amber-red) per mic/line input Source: 1 LED (green-amber-red) per ST input Output: 1 LED (green-amber-red) per zone Protection: 1 LED (red) per Speaker Output zone Peak Indication: -1 dB to 0 dB
Connections	(2) 5-pin Euroblock inputs (2 hot, 2 cold, 1 ground) (2) 4-pin Euroblock inputs (1 hot, 1 cold, 1 ground, 1 page switch) (4) 3-pin Euroblock inputs (1 hot, 1 cold, 1 ground) (1) stereo RCA auxiliary input (1) stereo 1/8” (3.5 mm) auxiliary input (4) stereo RCA ST inputs (4) 5-pin Euroblock outputs (2 hot, 2 cold, 1 ground) (5) 2-pin Euroblock outputs (1 positive, 1 negative) (1) LAN port (1) RJ11/RJ14 port, RS-422 (1) 9-pin D-Sub female connector, RS-232C (1) 9-pi
Operation Conditions	Temperature: 41–95ËšF / 5–35ËšC Humidity: 25–85%, non-condensing
Power	Connection: IEC Requirement: 100–240V AC, 50/60 Hz Consumption: 130 W @ 1/8 of output power
Dimensions (H x W x D) (with Rack Ears)	3.5" (88 mm) x 19" (483 mm) x 16.3" (415 mm)
Weight	23.6 lbs (10.7 kg)
