Department Store Sound System with 32 C3 Ceiling Speakers and RZMA120BT Multi Zone Bluetooth Mixer Amplifier (Discontinued Components)

Inside the Design

If you're looking for an easy-to-operate, high-quality background music system with style to match your department store or shopping center, look no further. This department store sound system has what you need to provide excellent background music, paging, and ambient sound for up to 4 different zones in your large store or shopping center. This department store speaker system is designed to be the perfect background music solution for large stores and shopping outlets, but there's so much more you can do with it. Attach a handheld or push-to-talk paging microphone to use this sound system for paging customers or making announcements across your whole store. The mixer amplifier's multi zone capabilities allow you to limit your announcements to specific areas of your department store.

Sound System Features:

• Quick and Easy to Install: The speakers are quick and easy to install with the screw-on Easy-Mounting threaded mounting rings
• Compact and Lightweight: The C3 provides the smallest possible footprint while maintaining high-quality sound
• Stylish Design: The C3 ceiling speaker seamlessly blends into any ceiling with a stylish design that won't distract from the ceiling design
• Bluetooth Amplifier: Enjoy versatile playback options with built-in Bluetooth, USB, SD, FM tuner, and MP3 player for seamless audio streaming
• Multi-Zone: The RZMA120BT makes it easy to assign audio to individual zones or all four simultaneously with advanced matrix technology, requiring no programming or tuning
• Powerful Amplifier: The RZMA120BT delivers robust 120-watt output for each of the four zones, supporting 4-16 ohm, 70V, and 100V speaker setups



About the System Components

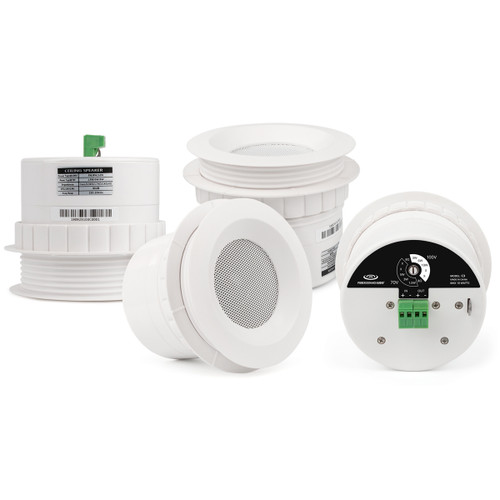

Pure Resonance Audio C3 Ceiling Speakers

Ideal for drop tile ceilings and featuring a stylish, intelligent design, the Pure Resonance Audio C3 3" micro ceiling speaker is compact and lightweight. This ceiling speaker seamlessly blends into the ceiling creating a beautiful architectural look. With 8 ohm and 70 volt taps, the C3 ceiling speaker is designed to provide excellent sound quality for a wide variety of low to medium volume applications such as background music, paging and ambient sound masking in commercial environments. An ultra-thin flat bezel allows the C3 to blend into ceiling planes. The quick and Easy-Mounting threaded ring provides secure, clean installation onto ceiling tiles and many other ceiling types.

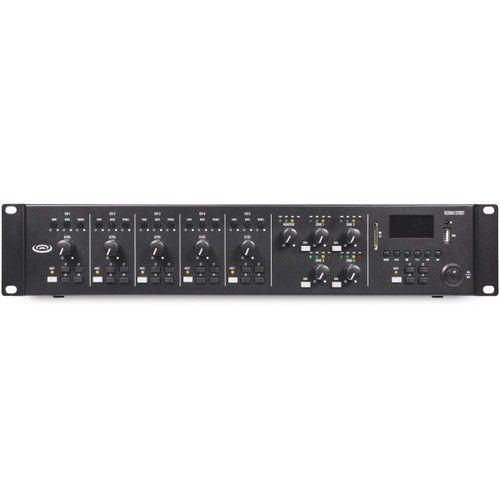

Pure Resonance Audio RZMA120BT Multi-Zone Mixer Amplifier

The Pure Resonance Audio RZMA120BT is a powerful and feature-rich 4-zone mixer amplifier with Bluetooth, delivering 120 watts per zone across 4-16 ohm, 70V, and 100V outputs. Designed for versatility, it features advanced matrix technology, allowing up to 5 inputs to be assigned to any zone or multiple zones with a simple button press—no programming or tuning required. Built for multi-zone paging, music distribution, and room-combining applications, it offers separate bass, treble, and volume controls for precise adjustments in each zone. With built-in MP3, FM tuner, and recording capabilities, this rack-mount mixer amplifier seamlessly integrates into commercial audio setups, making it an excellent solution for businesses requiring flexible and efficient audio control.

Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.

System & Component Videos

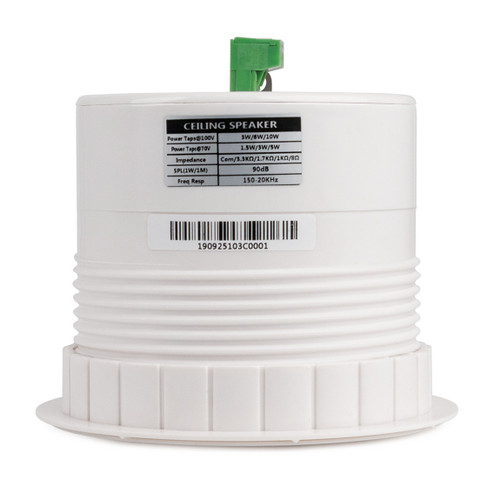

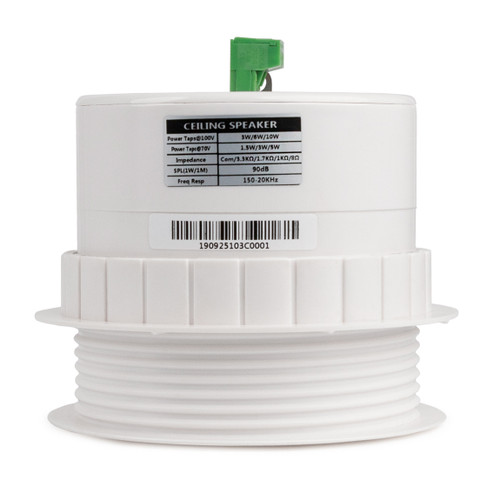

Pure Resonance Audio C3 3" Micro Ceiling Speaker with Easy-Mounting Ring

• Compact and lightweight
• Smallest possible footprint while maintaining powerful quality sound
• Intelligent, stylish design that seamlessly blends into the ceiling
• Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
• Tap settings:
• 70V: 8 ohm, 1.5W, 3W, 5W
• 100V: 8 ohm, 3W, 6W, 10W
• Quick & easy installation with threaded mounting ring
• Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces



Pure Resonance Audio RZMA120BT 4 Zone 120W Bluetooth Commercial Rack Mount Mixer Amplifier

• 4-Zone Flexibility - Easily assign audio to individual zones or all four simultaneously with advanced matrix technology, no programming or tuning is required
• Powerful - Delivers robust 120-watt output for each of the four zones, supporting 4-16 ohm, 70V, and 100V speaker setups
• Bluetooth & MP3 - Enjoy versatile playback options with built-in Bluetooth, USB, SD, FM tuner, and MP3 player for seamless audio streaming
• Versatile Inputs - Accommodates various audio sources across 5 channels, including XLR, RCA, telephone, and bare wire inputs, making it ideal for commercial environments
• Durable Design - Housed in a robust 2U, 19-inch rack-mountable chassis for stability and easy integration into any commercial audio rack setup
• Remote Control - Adjust volume and source settings easily with the included remote control, perfect for quick adjustments

• (32) Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Rings
• (1) Pure Resonance Audio RZMA120BT 4 Zone 120W Bluetooth Commercial Rack Mount Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (1000') West Penn 224 18/2 Non-Plenum Audio Speaker Wire - Gray
