DVDO C4-1-W Full HD PTZ Camera with HDMI/IP/3G-SDI/USB and AI Auto Tracking

Home /
Shop By Brand /
DVDO /
DVDO C4-1-W Full HD 20x PTZ Camera with HDMI/IP/3G-SDI/USB and AI Auto Tracking - White

Description

Details

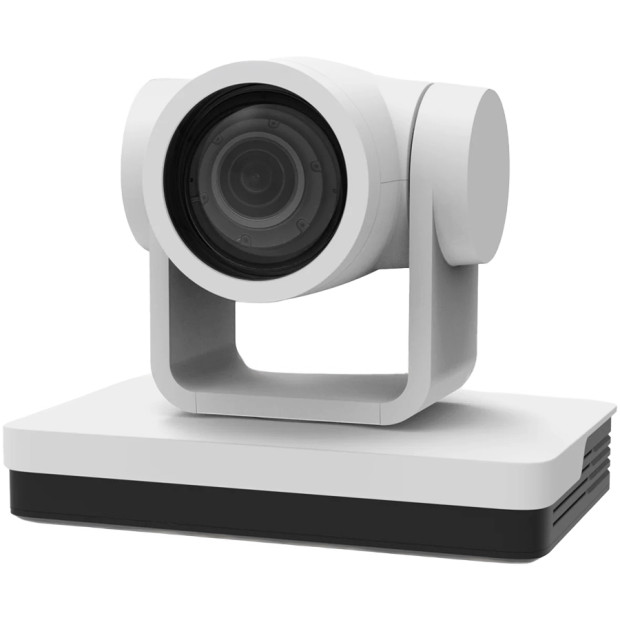

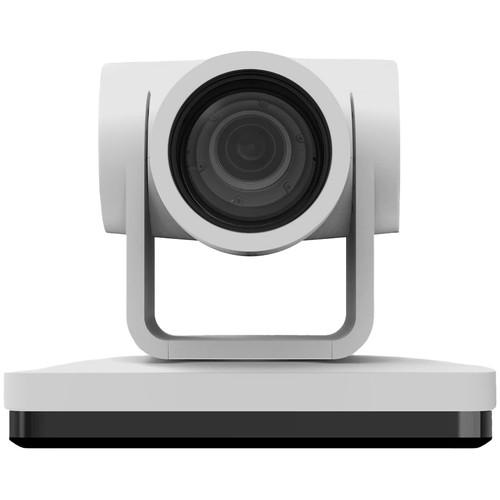

DVDO C4-1-W Full HD 20x PTZ Camera in White

The C4-1-W PTZ camera in white is a high-quality full HD camera designed for professional video capture and streaming. Equipped with a 1/2.8-inch CMOS sensor, it delivers vivid 1080p video at up to 60 fps with exceptional color rendition and depth. The 20x optical zoom lens with auto-focus provides a wide 56° field of view down to a narrow 3.2°, ensuring precise framing for lectures, events, or teleconferencing.

This white PTZ camera features advanced AI auto-tracking and a high-speed processor with image analysis algorithms, enabling real-time human detection and regional tracking. The built-in 2D/3D noise reduction ensures clear, low-noise imaging even in challenging lighting conditions, while the gravity sensor supports PTZ auto-flip for flexible and easy installation.

The DVDO-C4-1-W offers multiple outputs simultaneously, including HDMI, 3G-SDI, USB3.0, and LAN with POE support. It supports dual-coding streams in YUY2, MJPEG, H.264, NV12, and H.265 formats, and is compatible with ONVIF, GB/T28181, RTSP, RTMP, SRT, and VISCA protocols. Control options include RS422 (compatible with RS485), RS232-IN, RS232-OUT, and cascading support. Ideal for education, houses of worship, healthcare, courtrooms, broadcasting, webcasting, live events, and command and control centers.

Features

Features

Full HD 1080p resolution at up to 60 fps with a 1/2.8-inch high-quality CMOS sensor
20x Optical zoom lens with auto focus and 3.2°(N)/56°(W) field of view
AI auto-tracking with human detection and regional tracking options
Multiple outputs: HDMI, 3G-SDI, USB3.0, and LAN with POE support
Dual coding streams: main and sub outputs in YUY2, MJPEG, H.264, NV12, H.265
Built-in gravity sensor enables PTZ auto-flip for easy installation
Low-noise imaging with advanced 2D/3D noise reduction
Supports ONVIF, GB/T28181, RTSP, RTMP, SRT, VISCA over IP, and IP VISCA
Control via RS422, RS485, RS232-IN/OUT, compatible with VISCA, PELCO-D and PELCO-P protocols
Quiet pan and tilt movement using high-accuracy stepper motors
White PTZ camera design for modern professional environments

Specification

Sensor	1/2.8-inch high-quality CMOS, 2.07M effective pixels
Resolution	Full HD 1920x1080 up to 60 fps
Optical Zoom	20x (5.2-98 mm)
Digital Zoom	15x
Field of View (FOV)	3.2°(N)/56°(W)
Aperture	F1.5 - F3.0
Iris Value	F1.8 - F11, CLOSE
Minimum Illumination	0.5 Lux (F1.8, AGC ON)
PTZ Pan/Tilt	Pan: -170° ~ +170°, Tilt: -30° ~ +90°
PTZ Speed	Pan: 0.1°-00°/s, Tilt: 0.1°-45°/s
Preset Positions	Up to 255 (10 via remote)

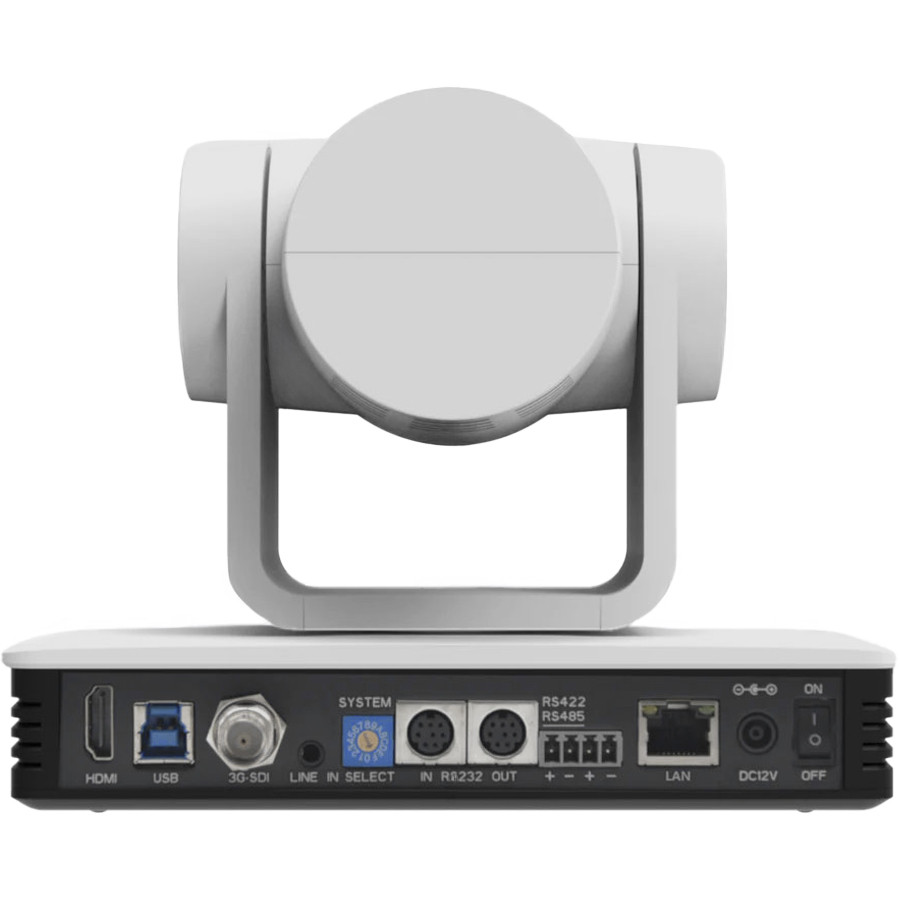

Video Outputs	HDMI, SDI, USB3.0, LAN (POE)
Video Formats	HDMI/SDI: 1080p60/50/30/25/59.94/29.97, 720p60/50/59.94, USB3.0: YUY2/NV12/MJPG/H.264/H.265
Audio Inputs/Outputs	Dual 3.5 mm linear input, HDMI/SDI/LAN/USB3.0 output, AAC/MP3/G.711A
Network Protocols	RTSP, RTMP, ONVIF, GB/T28181, VISCA over IP, IP VISCA, RTMPS, SRT
Control Interfaces	RS232-IN, RS232-OUT, RS422 (RS485 compatible), VISCA/Pelco-D/Pelco-P
AI Features	Real-time tracking, regional tracking, max range 6-7m, speed 3-4 m/s
Power Input	DC12V ±10%, <1A, <12W consumption
Operating Environment	Indoor, -10℃ to +50℃, 20%–80% humidity
Mounting Options	Tabletop, wall mount, ceiling mount (optional brackets)
Dimensions (H x W x D)	5.87" (149 mm) x 7.13" (181 mm) x 4.53" (115 mm)
Weight	2.54 lbs (1.15 kg)
