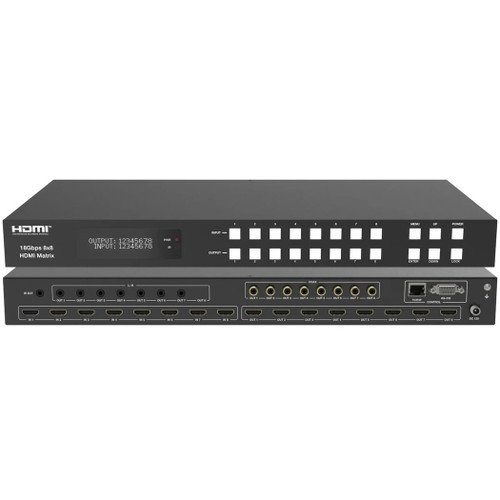

DVDO Matrix-88 4K 8x8 HDMI Matrix Switcher
The Matrix-88 4K 8x8 HDMI matrix switcher is a professional AV distribution solution that allows seamless routing of eight HDMI sources to eight HDMI displays independently. Supporting resolutions up to 4K2K@60 Hz YUV 4:4:4 with 18 Gbps bandwidth, it delivers high-quality video for demanding applications in conference rooms, education, digital signage, hospitality, and houses of worship.
The Matrix-88 supports advanced video formats, including Dolby Vision, HDR10+, and HLG. Each HDMI output also features an independent 4K to 1080p downscaling, making it compatible with a mix of 4K and Full HD displays. Audio is fully supported with HDMI pass-through up to 7.1-channel HD audio (LPCM, Dolby TrueHD, DTS-HD Master Audio) and de-embedded to analog and coaxial outputs, while HDMI ARC allows audio extraction from display devices to coaxial output.
Control and management are flexible and intuitive. The unit features front panel buttons, an IR remote, RS-232, LAN, and a Web GUI for easy configuration. Its 1U rack-mountable design with front-panel OLED display ensures professional installation and monitoring, providing a reliable, high-performance AV switching solution for large-scale installations.
- Features
Features
- 8x8 HDMI matrix routing for independent source-to-display connections
- Supports 4K2K@60 Hz YUV 4:4:4 video resolution on all HDMI ports
- 18 Gbps video bandwidth for high-quality 4K signal transmission
- Dolby Vision, HDR10+, and HLG compatible
- Individual 4K to 1080p downscaling on each HDMI outpu
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, DTS-HD Master Audio)
- Audio de-embedding via analog and coaxial outputs
- ARC audio extraction from HDMI displays to coaxial outputs
- Smart EDID management and CEC support
- 1U rack-mountable design with front-panel OLED display
- Multiple control options: front panel buttons, IR remote, RS-232, LAN, and Web GUI
- Specification
HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps Video Resolution Up to 4K2K@50/60 Hz (4:4:4) Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0 Color Depth 8-bit, 10-bit, 12-bit HDMI Audio Formats (Pass-Through) LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Coax Audio Formats LPCM 2.0, Dolby Digital/Plus, DTS 5.1 L/R Audio Formats PCM2.0 HDR Formats HDR10, HDR10+, Dolby Vision, HLG ESD Protection Human-body Model: ±8 kV (Air-gap discharge), ±4 kV (contact discharge) Input Ports 8x HDMI Type A [19-pin female]
1x IR EXT [3.5 mm Stereo Mini-jack]Output Ports 8x HDMI Type A [19-pin female]
8x Coax Audio (RCA)
8x L/R Audio [3.5 mm Stereo Mini-jack]Control Ports 1x TCP/IP [RJ45]
1x RS-232 [D-Sub 9]Housing Metal Enclosure Color Black Power Supply Input: AC 100-240V 50/60 Hz
Output: DC 12V/5A (US-EU standard, CE/FCC/UL certified)Power Consumption 43W Operating Temperature -10°C ~ 45°C/14°F ~ 113°F Storage Temperature -20°C ~ 60°C/-4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Dimensions (H x W x D) 1.75" (44.5 mm) x 17.32" (440 mm) x 7.87" (200 mm) Weight 6.17 lbs (2.8 kg) - Documents
Documents
- In The Box
In The Box
- (1) 18 Gbps 8 x 8 HDMI Matrix
- (1) 12V/5A Power Adapter
- (1) IR Remote
- (1) IR Receiver Cable (1.5 m)
- (1) RS-232 Serial Cable (1.5 m, Male to Female Head)
- (2) Mounting Ears
- (1) User Manual
