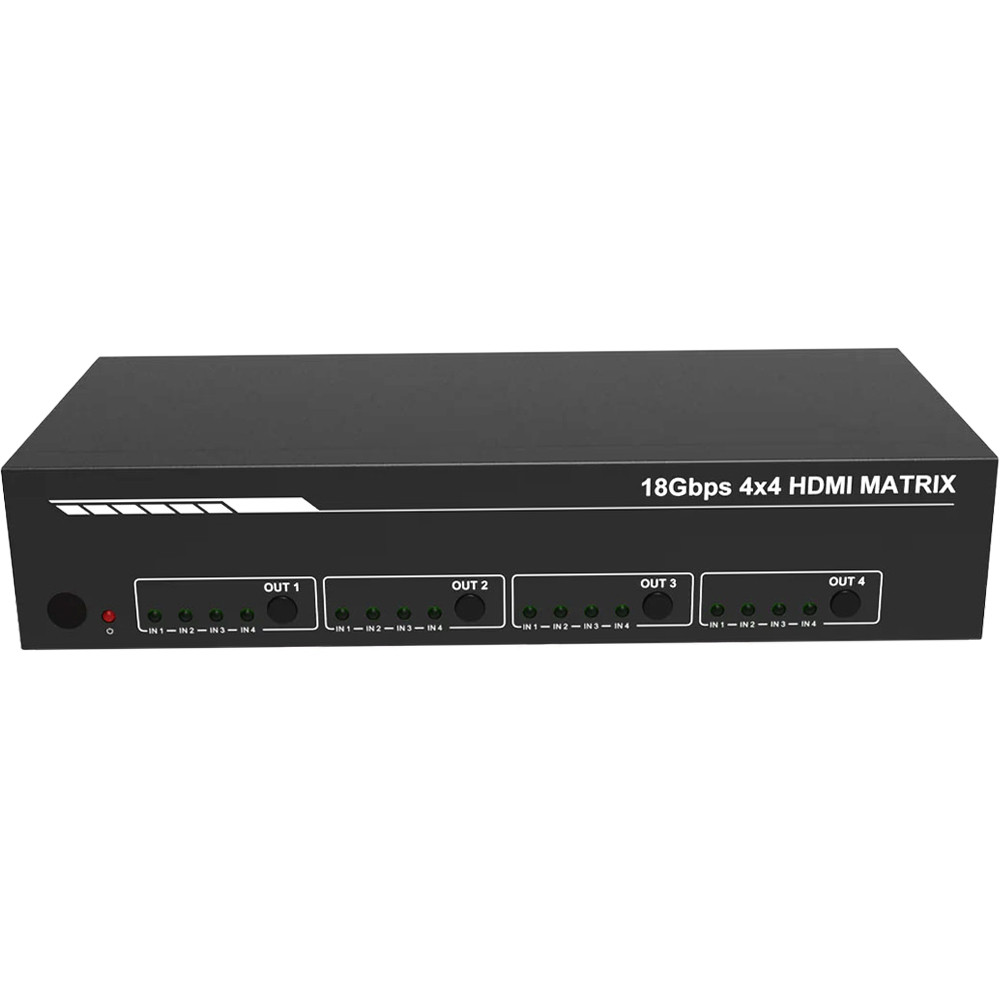

DVDO Matrix-44 4K 4x4 HDMI Matrix Switcher

The Matrix-44 4K 4x4 HDMI Matrix Switcher is a compact and powerful AV distribution solution designed to route up to four HDMI sources to four separate displays independently. Supporting HDMI 2.0 with up to 4K60 4:4:4 resolution and 18 Gbps bandwidth, it ensures exceptional video quality for professional AV environments such as conference rooms, digital signage, hospitality, and houses of worship.

The Matrix-44 includes advanced audio features with dedicated coaxial and analog L/R audio outputs for each HDMI output, allowing easy audio de-embedding for external sound systems. HDR10 and HDR10+ support deliver enhanced contrast and color accuracy, while individual 4K to 1080p scaling ensures compatibility with Full HD displays.

The unit also features advanced EDID management and flexible control options through front panel buttons, IR, RS-232, or IP using an intuitive web GUI. Its compact design makes installation simple while providing reliable performance for a wide range of professional AV applications.

Features

Features

Routes four HDMI sources to four displays independently
Supports HDMI 2.0 with resolutions up to 4K2K at 60Hz 4:4:4
18 Gbps video bandwidth for high-quality signal transmission
Individual 4K to 1080p downscaling for each output
Audio de-embedding with coaxial and analog L/R outputs per HDMI output
ARC audio return supported via coaxial outputs
Supports HDR10 and HDR10+ for enhanced image quality
Compatible with PCM, Dolby Digital, Dolby TrueHD, DTS, and DTS-HD audio formats
Advanced EDID management for reliable device compatibility
Control via front panel buttons, IR remote, RS-232, or IP web interface
Compact design for flexible installation in professional AV environments

Specification

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2/1.4
Video Bandwidth	18 Gbps
Video Resolutions	4K2K 60/50/30Hz 4:4:4, 4K2K 60/50Hz 4:2:0, 1080p, 1080i, 720p, 480p, 480i, all HDMI 3D TV formats, all PD resolutions including 1920x1200
Color Space	RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth	1080p, 4K30 Hz, 4K60 Hz (YCbCr 4:2:0): 8/10/12-bit, 4K60Hz (YCbCr 4:4:4): 8-bit
HDMI Audio Formats	PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Coaxial Audio Formats	PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1
L/R Audio Formats	PCM 2.0CH
HDR Support	HDR10, HDR10+. Dolby Vision, HLG
ESD Protection	Human-body Model: ±8 kV (Air-gap discharge), ±4 kV (Contact discharge)

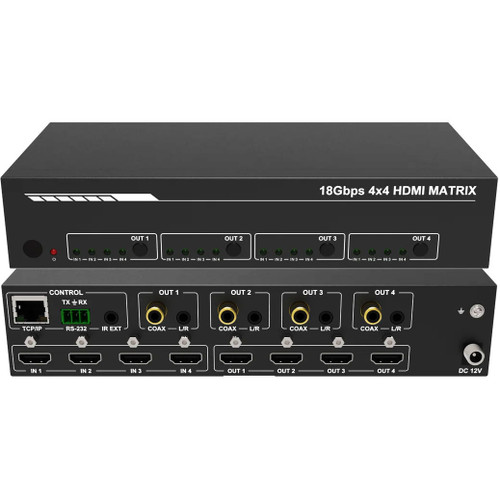

Inputs	4 x HDMI [Type A, 19-pin female]
Outputs	4 x HDMI [Type A, 19-pin female] 4 x L/R audio out [3.5mm Stereo Mini-jack] 4 x Coax audio out [RCA]
Control	1 x TCP/IP [RJ45], 1 x RS-232 [3-pin phoenix connector], 1 x IR EXT [3.5 mm Stereo Mini-jack]
Housing	Black Metal Enclosure
Power Supply	Input: AC 100 - 240V 50/60 Hz Output: DC 12V/2.5A (Locking connector)
Power Consumption	10W (Max); 1.56W (Standby mode)
Operating Temperature	0°C ~ 40°C/32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C/-4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)
Dimensions (H x W x D)	1.73" (44 mm) x 8.67" (220 mm) x 4.13" (105 mm)
Weight	1.75 lbs (0.79 kg)
