The DVDO Xtend-USBC-USB-100 USB 3.2 Gen 1 extender transmits USB-C and USB-A signals up to 100 m over a single CAT6a cable. Features bi-directional PoC, plug-and-play operation, and supports webcams, PTZ cameras, keyboards, mice, and other USB devices.

Description

DVDO Xtend-USBC-USB-100 USB 3.2 Gen 1 100m Extender

The Xtend-USBC-USB-100 USB 3.2 Gen 1 extender delivers reliable long-distance USB connectivity over a single CAT6a cable, extending USB signals up to 100 m (328 ft) without performance loss. Supporting USB 3.2 Gen 1 with data rates up to 5Gbps and full backward compatibility with USB 2.0 and 1.1, it ensures smooth and responsive operation for a wide range of USB devices.

The transmitter features one USB-C host port along with one USB-C and two USB-A device ports, while the receiver provides two USB-C ports (5V@1A and 5V@1.5A) and two USB-A ports (5V@1A and 5V@1.5A). Bi-directional 24V Power over Cable (PoC) allows the power source to be connected to either the transmitter or receiver, simplifying installations in professional AV and IT environments.

Designed for plug-and-play convenience, the Xtend-USBC-USB-100 supports isochronous and bulk transfer with hardware acceleration, ensuring stable performance for webcams, PTZ cameras, keyboards, mice, USB microphones, touch panels, flash drives, printers, scanners, and other USB peripherals. No drivers or software are required, making it a versatile solution for long-distance USB connectivity.

Features
  • Extends USB 3.2 Gen 1 signals up to 100 m/328 ft over a single CAT6a cable
  • Data transfer speeds up to 5Gbps; backward compatible with USB 2.0 and 1.1
  • Transmitter: 1x USB-C host, 1x USB-C device, 2x USB-A device ports
  • Bi-directional 24V Power over Cable (PoC) support
  • Hardware acceleration for isochronous and bulk USB transfers
  • Plug-and-play operation with no drivers, downloads, or software required
  • Supports a wide range of USB devices: webcams, PTZ cameras, keyboards, mice, microphones, flash drives, printers, scanners, and touch panels
  • Reliable long-distance USB connectivity for professional AV, IT, and office setups

Specifications
USB Protocol USB 3.2 Gen 1
Transmission Rate Up to 5 Gbps
Transmission Distance 100 m/328 ft via CAT6a (F/FTP) cable
1.5 m/4.9 ft via USB cable
ESD Protection IEC 61000-4-2: ±8 kV (Air-gap discharge), ±4 kV (Contact discharge)

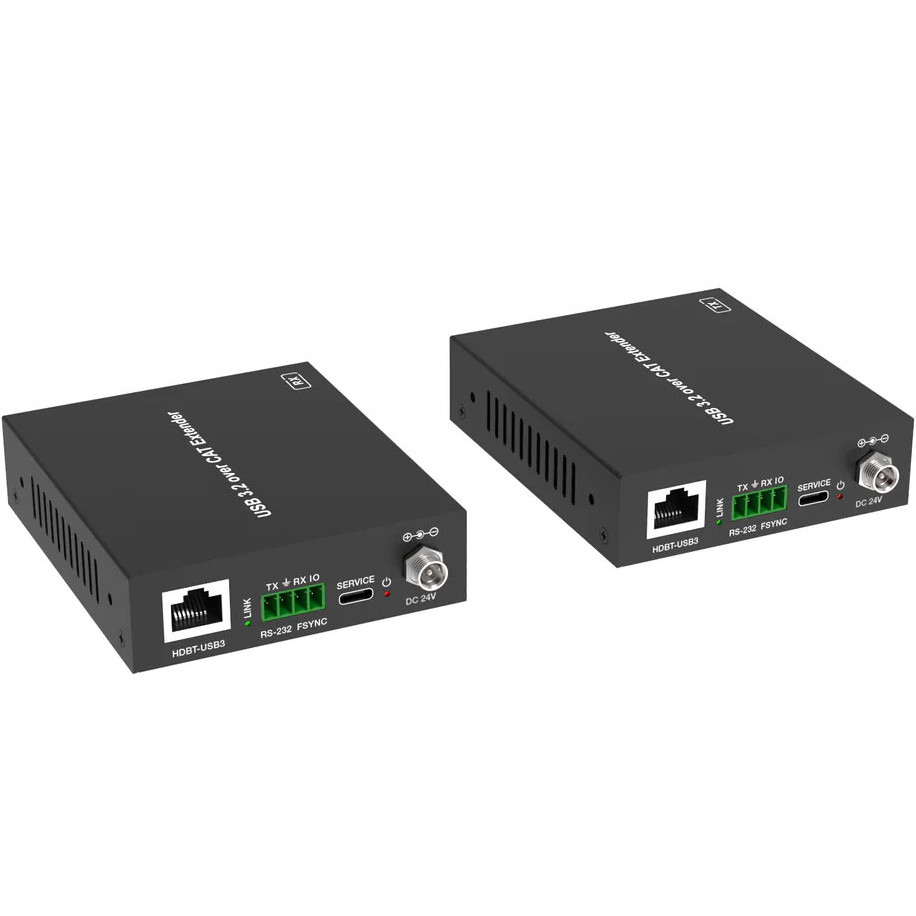

Transmitter Input: 1 x HOST [USB Type C, 24-pin female]
Output: 1 x USB-C DEVICE [USB Type C, 24-pin female] +2 x USB-A DEVICE
[USB Type A, 9-pin female] +1 x HDBT-USB3 [RJ45 connector, 24V PoC]
Control: 1 x RS-232 [3pin-3.5 mm phoenix connector] +1 x FSYNC
[1pin-3.5 mm phoenix connector] + 1 x SERVICE [USB Type C, firmware update port]

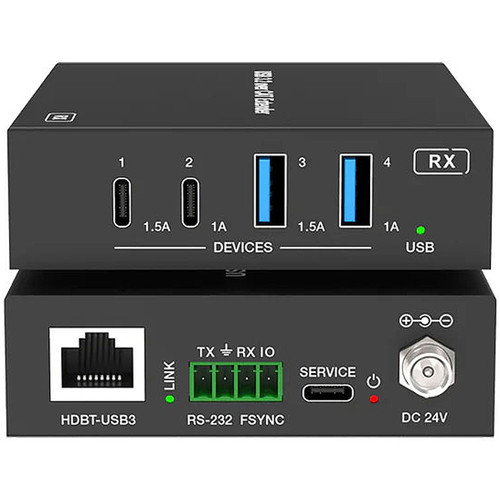

Receiver Input: 1 x HDBT-USB3 [RJ45 connector, 24V PoC]
Output: 2 x USB-A DEVICE [USB Type A, 9-pin female] + 2 x USB-C DEVICE
[USB Type C, 24-pin female]
Control: 1 x RS-232 [3pin-3.5 mm phoenix connector] + 1 x FSYNC
[1pin 3.5 mm phoenix connector] + 1 x SERVICE [USB Type C, firmware update port]
Housing Black metal enclosure
Power Supply Input: AC 100~240V 50/60 Hz; Output: DC 24V/3.75A
Power Consumption Tx: 23W (Max); Rx: 35W (Max); Tx + Rx: 68W (Max, including line loss)
Operating Temperature 0°C ~ 40°C/32°F ~ 104°F
Storage Temperature -20°C ~ 60°C/-4°F ~ 140°F
Relative Humidity Operating: 20%~80% / Storage: 10%~90% (non-condensing)
Dimensions (H x W x D) 1" (25.5 mm) x 3.94" (100 mm) x 3.35" (85 mm)
Weight TX: 0.58 lbs (0.26 kg)
RX: 0.61 lbs (0.28 kg)

DOCUMENTS

In The Box
  • (1) USB 3.2 Gen 1 Extender (Transmitter)
  • (1) USB 3.2 Gen 1 Extender (Receiver)
  • (1) 24V/3.75A Power Supply
  • (2) 4pin-3.5 mm Phoenix Connectors (Male)
  • (4) Mounting Ears
  • (8) Machine Screws (M3 x 4 mm)
  • (1) User Manual
