The Dynacord MXE5-64 is a powerful DSP matrix with 12 mic/line inputs, 8 outputs, and 64×64 Dante channels. It delivers advanced audio processing, system-wide control via TaskEngine, and full SONICUE software integration.

Description

Dynacord MXE5-64 DSP Matrix Mix Engine 64x64 Channels

The MXE5-64 Matrix Mix Engine is a performance audio matrix designed to deliver high-quality audio in fixed installation projects, operating at 96 kHz or 48 kHz.

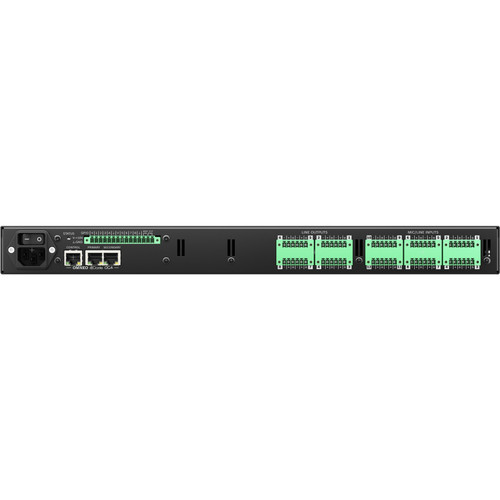

Working as a control center and communications hub for other system devices and IP-based peripherals, it provides comprehensive supervision and system wide control, featuring 12 analog mic/line inputs, 8 line outputs and 64x64 Dante channels.

The freely configurable DSP unit offers a variety of DSP blocks, the configurable matrix blocks support up to 3840 cross-points and up to 256 internal signal paths for customized DSP designs. Onboard are professional input and output processing features, including mixing, parametric EQ, delays, compression, limiting, ducking, auto mixing, auto gain control, ambient noise compensation and a comprehensive speaker processing with FIR drive.

MXE’s TaskEngine provides advanced, system wide control with functions like scheduler and scene handling. The MXE5-64 is entirely designed and configured in SONICUE Sound System Software which also allows the creation of customized GUIs for use in SONICUE Control on TPC-1 touch panels, iOS devices or PCs.

Features
  • Open architecture DSP matrix for high performance audio applications
  • 12 mic/line inputs, 8 line outputs, 8 configurable GPIOs
  • 64 x 64 Dante channels
  • TaskEngine for sophisticated system control and integration
  • Integrated into SONICUE Sound System Software

Specifications
DSP Matrix Mix Engine Open architecture DSP, sound system manager, system control and supervision
Matrix Size Flexible with 3860 cross-points, 256 signal paths
Dante Audio (48/96 kHz) 64 x 64 channels (64 Flows)
Analog Inputs 12 mic / line w. 48V phantom power
Analog Outputs 8 line
Control Ports 8 GPIO (digital in/out, analog in)
Signal to Noise Ratio (A-weighted) > 118 dB
THD+N < 0.002 %
Sampling Rate 96 kHz / 48 kHz
Latency < 0.22 ms / 0.45 ms (analog in/out, 96/48 kHz)
Signal Processing 32/40-bit floating point
Maximum Input/Output Level + 22 dBu
DSP Blocks EQs, x-over, FIR drive, compressor, PA & RMS limiter, noise gate, ducker, automatic gain control, ambient noise compensation, mix-matrix, router, auto mixer, delay, generators, detectors, VU meters, polarity, level, mute
TaskEngine (System Logic) Analog, logic and text operations, scheduler, scene handling, OCA & HTTP protocol
Safety / Redundancy Int. supervision, system monitoring, watchdog, fault output, audio redundancy supported
Dimensions (H x W x D) 1.71" (43.5 mm) x 19" (483 mm) x 18.54" (471 mm)
Weight 13.2 lbs (6 kg)
