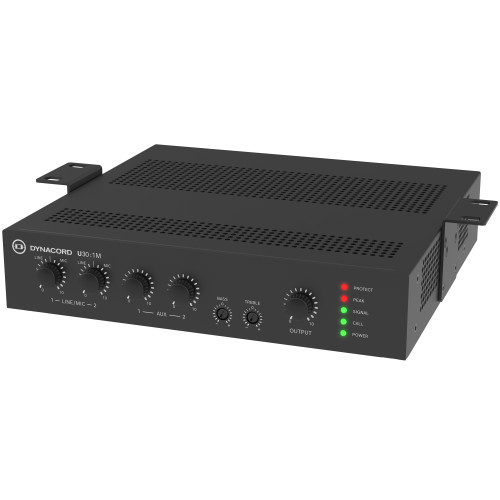

The U30:1M is a professional-grade 30-watt mixer amplifier built to deliver reliable performance, energy efficiency, and clear audio for small-scale commercial installations. Designed with flexibility and ease of use in mind, this compact amplifier is ideal for background music and voice paging in environments such as cafés, retail boutiques, classrooms, houses of worship, galleries, transportation kiosks, and conference breakout rooms.
Despite its low power output, the U30:1M features the same half-rack, 1RU form factor found across the U Series line. It includes mounting brackets for single or side-by-side rack installations or can be positioned on a desk or under a counter. Two U30:1M units can be mounted together in a single rack space to expand channel count or output flexibility while maintaining minimal space usage.
Built with Dynacord's engineering excellence, the U30:1M offers clean sound, advanced control features, and dependable operation in demanding commercial spaces. It’s a compact yet capable solution for installations that require audio clarity, simple integration, and flexible mounting options.
Incorporates class-D amplification topology for superior energy efficiency, product quality, and reliability compared to traditional linear power supply and class-AB amplification.
Half rack, 1U enclosure ensures space-saving installation without compromising performance.
Supports 70V, 100V, 4…, and 8Ω speaker systems, offering versatility in system design.
Facilitates microphone operation with power supplied to both microphone inputs.
Prioritizes voice input, enhancing clarity during announcements or speeches.
Enables remote power ON/OFF functionality via contact closure, enhancing operational convenience.
Allows fine-tuning of audio output with dedicated bass and treble adjustment controls.
Available 120 Hz high-pass filters to tailor audio output according to application requirements.
Offers versatile mounting possibilities, including rack mount, side-by-side rack mount, table-top, or under-table mounting, facilitated by included brackets and accessories.
Features 100V and Line In emergency input with level selection, ensuring critical messages are delivered clearly.
Equipped with overload and short circuit protection, along with a limiter to safeguard both the amplifier and loudspeaker against accidental overdriving. A temperature-controlled fan ensures optimal cooling without generating acoustic noise at lower output levels.
Conveniently adjust output gain, input gain per channel, and bass and treble settings directly from the front panel for effortless customization.
| Rated Output Power | 30W |
|---|---|
| Max Output Voltage | 4Ω - 12 VRMS 8Ω - 16 VRMS 70V - 87 VRMS 100V - 118 VRMS (1 kHz, THD=0.5%, no load) |
| Connectors | LINE/MIC 1 Input: 3-pin XLR, balanced / 5-pin Eurostyle, balanced (3 pin for input, 2 pin for trigger) LINE/MIC 2 Input: 3-pin XLR, balanced AUX1 Input: RCA (cinch), stereo converted to mono, unbalanced AUX2 Input: RCA (cinch), stereo converted to mono, unbalanced EMG Input: 2-pin, balanced Loudspeaker Output: 4-pin Eurostyle (2 pin for LoZ, 2 pin for HiZ) |
| Mounting | Stand-alone; 19" rack; rack side-byside; half 19" rack; table-top; undertable |
| Dimensions (H x W x D) | 1.74" (44.1 mm) x 8.6" (218 mm) x 8.57" (217.7 mm) |
| Weight | 4.85 lbs (2.2 kg) |
| Shipping Weight | 6.83 lbs (3.1 kg) |
