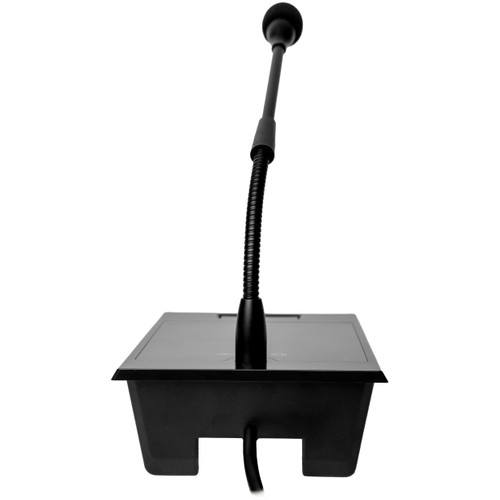

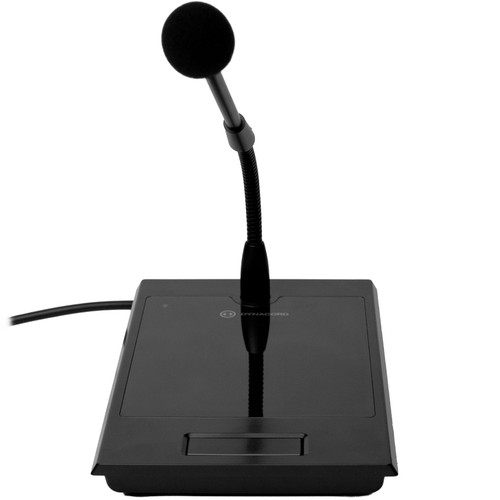

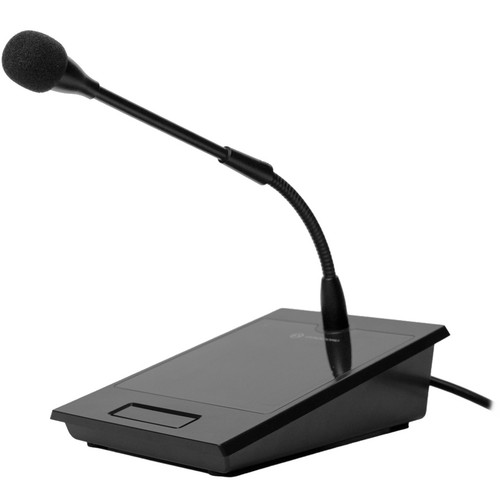

The UCS-1 is a premium 1-zone tabletop call station designed for professional paging and public address applications where clarity and reliability are essential. It features a high-quality unidirectional condenser microphone that ensures focused voice capture and excellent speech intelligibility, making it ideal for announcements in commercial and public environments.
Designed for intuitive operation, the UCS-1 includes a push-to-talk button that instantly activates or mutes the microphone. When engaged, it can also trigger priority signaling to compatible U Series mixer amplifiers, ensuring that announcements are always heard first over background audio. A green LED indicator provides clear visual feedback when the microphone is active, supporting smooth and confident operation.
Built for flexible and reliable installation, the UCS-1 comes with a stable weighted base and rubber feet for secure desktop placement. It includes a 2-meter cable with Euroblock connectivity for easy integration into professional audio systems, and it is phantom powered directly from the connected amplifier, eliminating the need for an external power supply.
| Voltage Rate | 12V - 48V (P12 - P48) |
|---|---|
| Current Consumption | 11 mA Max. |
| Sensitivity | -56 dB V/PA (1.60 m V/PA) |
| Maximum Input Sound Level | 100 dB SPL |
| Distortion | |
| Input Noise Level | 38 dBA |
| Frequency Response | 100 Hz - 16 kHz |
| Output Impedance | 200Ω |
| Color | RAL 9004 Signal black |
| Operating Temperature | -10°C (14°F) - 45°C (113 °F) |
| Storage Temperature | -40°C - 70°C |
| Relative Humidity | |
| Stem Length with Mic | 11.42" (290 mm) |
| Cable Length | 6.56' (2 m) |
| Dimensions (H x W x D) | 2.36" (60 mm) x 5.12" (130 mm) x 7.56" (192 mm) |
| Weight | 2.1 lbs (0.94 kg) |
