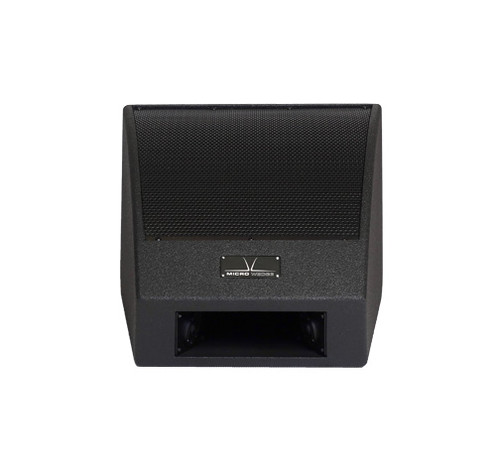

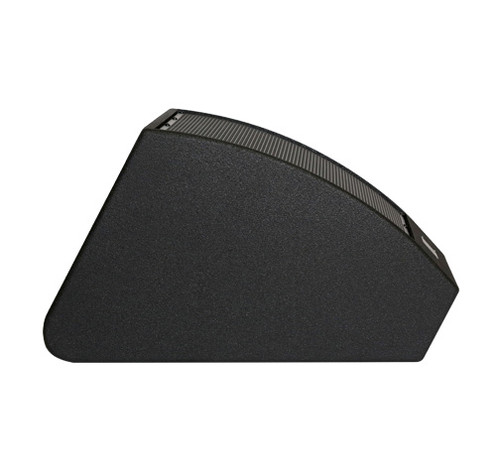

The MicroWedge MW12 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (owner of Rat Sound Systems, Inc.) and the EAW Engineering Department, resulting in dramatically upgraded performance and ergonomics. The coaxial design pairs a 12-inch woofer with a 3-inch (diaphragm) HF compression driver on a horn that provides full yet controlled 90-degree horizontal dispersion. The large port on the front of the cabinet enhances LF response in coupling with the floor, and it houses both the carrying handle and the passive/active mode switch. The port also contains dual input connectors. Integral rigging hardware mounted on the enclosure bottom facilitates easy flying.
| Design | Coaxial |
|---|---|
| Woofer | 1 x 12-in woofer, vented |
| Horn | 1 x 1.4-in driver (3-in voice coil), on horn |
| Product Group | S |
| Operating Mode | Single amp or bi-amp |
| Operating Range | 64 Hz to 20 kHz |
| Beamwidth | 90° (h) x 90° (v) (conical) |
| Power Handling/Output | LF/HF - 122 dB average, 128 dB peak |
| Connections | 2 Neutrik NL4 Speakon (in port) |
| Rigging/Mounting | Integral flytrack on enclosure bottom |
| Dimensions (H x W x D) | 13.1" (332.74 mm) x 12" (304.8 mm) x 22.8" (579.12 mm) |
| Net Weight | 47 lbs (21.32 kg) |
| Shipping Weight | 60 lbs (27.22 kg) |
