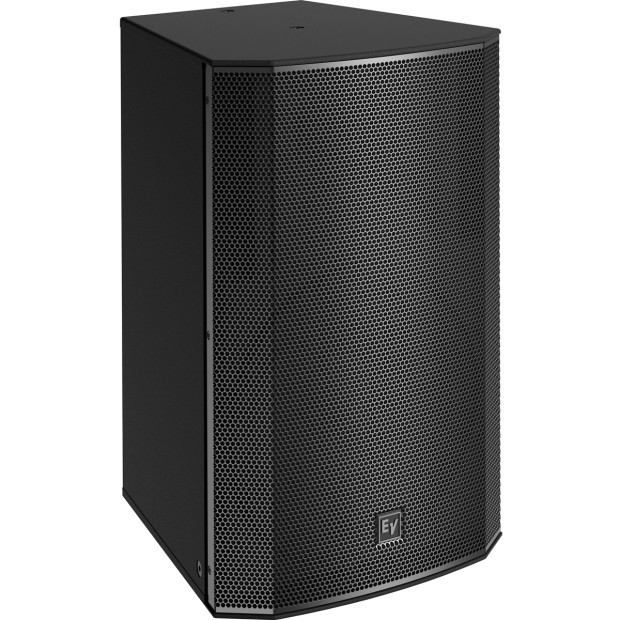

Electro-Voice EVC-1152-95PIB 15" 2-Way Weatherized Passive Loudspeaker with 90° x 55° Coverage - Black

Electro-Voice EVC-1152-95PIB 15-Inch 2-Way Weather‑Resistant Black Loudspeaker

The EVC-1152-95PIB is a high-performance 15-inch, 2-way passive loudspeaker designed for professional fixed installations requiring wide bandwidth, precise directivity, and exceptional clarity. Its black, weather-resistant enclosure features a rotatable 90° x 55° constant-directivity waveguide, providing consistent coverage for performance spaces, houses of worship, auditoriums, and commercial venues.

A high-output 15-inch woofer paired with a 1.25-inch titanium compression driver delivers smooth, linear frequency response with minimal distortion. The passive fourth-order Linkwitz-Riley crossover ensures consistent off-axis performance, enhancing intelligibility across the listening area while maintaining high efficiency. With a sensitivity of 98 dB and a maximum SPL of 129 dB, it provides powerful sound for both music and speech.

Durability is built into the black EVCoat-finished plywood enclosure, which includes a stainless-steel grille and gland-nut input cover for weather resistance. Multiple M10 rigging points support flexible mounting, and optional U-brackets or pan/tilt wall mounts provide further installation versatility. The system is compatible with the optional TK150 transformer, which engages EV's Automatic Saturation Compensation (ASC) to preserve low-frequency performance on 70V/100V distributed systems. The result is a reliable, high-output loudspeaker for demanding indoor and outdoor audio applications.

• Black weather-resistant 15" 2-way passive loudspeaker
• 90° x 55° rotatable constant-directivity waveguide
• High-output 15" woofer and 1.25" titanium HF compression driver
• 350W continuous/1400W peak power handling
• 98 dB sensitivity with 129 dB maximum SPL
• Fourth-order Linkwitz-Riley passive crossover, 24 dB/octave
• Stainless-steel grille and weatherized gland-nut input cover
• Optional TK150 transformer for 70V/100V systems
• ASC technology maintains low-end performance on distributed lines
• Durable 15-mm plywood cabinet with EVCoat finish
• Multiple M10 rigging points for flexible mounting
• Compatible with U-brackets and pan/tilt wall mounts
• Accepts wire gauges up to 10 AWG
• Smooth off-axis response for speech and music
• Ideal for indoor/outdoor professional audio installations
