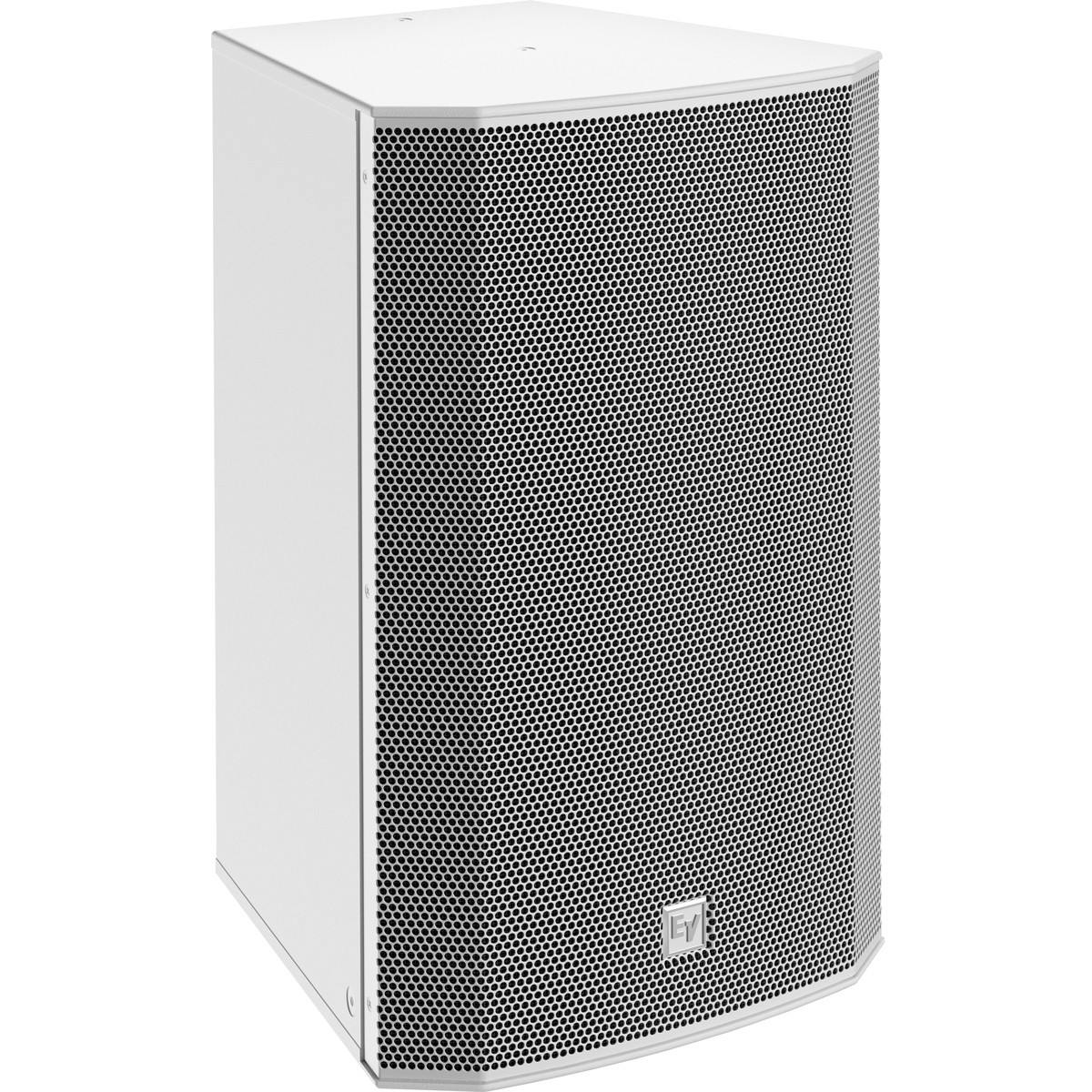

The EVC-1152-95PIW is a high-performance 15-inch, 2-way passive loudspeaker designed for professional fixed installations requiring wide bandwidth, precise directivity, and exceptional clarity. Its white, weather-resistant enclosure features a rotatable 90° x 55° constant-directivity waveguide, providing consistent coverage for performance spaces, houses of worship, auditoriums, and commercial venues.
A high-output 15-inch woofer paired with a 1.25-inch titanium compression driver delivers smooth, linear frequency response with minimal distortion. The passive fourth-order Linkwitz-Riley crossover ensures consistent off-axis performance, enhancing intelligibility across the listening area while maintaining high efficiency. With a sensitivity of 98 dB and a maximum SPL of 129 dB, it provides powerful sound for both music and speech.
Durability is built into the white EVCoat-finished plywood enclosure, which includes a stainless-steel grille and gland-nut input cover for weather resistance. Multiple M10 rigging points support flexible mounting, and optional U-brackets or pan/tilt wall mounts provide further installation versatility. The system is compatible with the optional TK150 transformer, which engages EV's Automatic Saturation Compensation (ASC) to preserve low-frequency performance on 70V/100V distributed systems. The result is a reliable, high-output loudspeaker for demanding indoor and outdoor audio applications.
| Speaker Type | 15" 2-way passive loudspeaker |
|---|---|
| Coverage Pattern | 90° x 55° constant directivity, rotatable waveguide |
| Frequency Response | Wide-band, high-efficiency design |
| Power Handling | 350W Continuous/1400W Peak |
| Sensitivity | 98 dB |
| Max SPL | 129 dB |
| HF Driver | 1.25" pure titanium dome compression driver |
| LF Driver | High-output 15" woofer |
| Crossover | Fourth-order Linkwitz-Riley, 24 dB/octave |
| Weather Protection | Stainless steel grille, gland-nut cover |
| Nominal Impedance | 8Ω |
| Transformer Option | Optional TK150 for 70V/100V with ASC |
| Enclosure | 15-mm plywood with durable EVCoat finish |
| Grille | 18 GA stainless steel with hydrophobic cloth |
| Mounting | (8) M10 suspension points |
| Connectors | Dual four-pin 10 AWG Phoenix/ Euro Block screw-terminals |
| Color | White |
| Dimensions (H x W x D) | 26.91" (684 mm) x 17.05" (433 mm) x 17.77" (451 mm) |
| Weight | 55.1 lbs (25 kg) |
| Shipping Weight | 61 lbs (27.7 kg) |
