Electro-Voice EVF-1152S 2-Way 15" Loudspeaker (Discontinued)

Electro-Voice EVF-1152S 2-Way 15" Loudspeaker (Discontinued)

Name: Electro-Voice EVF-1152S 2-Way 15" Loudspeaker (Discontinued)
Brand: Electro-Voice
SKU: BOSCH-EV-EVF-1152S

Write a Review

Part #:

F.01U.272.518

Model #:

EVF-1152S

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Electro-Voice EVF-1152S system employs the SMX2151 15-inch woofer, providing sensitivity 3 dB higher than an EVF-1122S system and very high for a front-loaded system.

Description

The EVF-1152S system employs the SMX2151 15-inch woofer, providing sensitivity 3 dB higher than an EVF-1122S system and very high for a front-loaded system: 101 dB 1 W/1 m. The EVF 15-inch systems trade the very-short-throw/very-wide-angle 120° x 60° pattern of the EVF-1122S/126 for the long-throw/narrow-angle 40° x 30° pattern of the EVF-1152S/43, for seven coverage patterns overall.

Features

2-inch ND2B titanium HF compression driver
Rotatable Constant-directivity waveguide
Six available patterns with coverage from 40º to 90º
101 dB sensitivity, 134 dB maximum SPL
Power handling: 500W continuous, 2000W peak
4th-order crossover with HF protection
Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

Specifications

Frequency Response (-3 dB)	70 Hz – 14 kHz
Frequency Range (-10 dB)	41 Hz – 18 kHz
Recommended High-Pass Frequency	45 Hz
Sensitivity (SPL, 1 W/1 m)	101 dB
Max. SPL @ 1 m (calc.)	134 dB
System Power Handling (Continuous, Program, Peak)	500W, 1000W, 2000W
Nominal Impedance (Passive)	8Ω
Minimum Impedance	6Ω

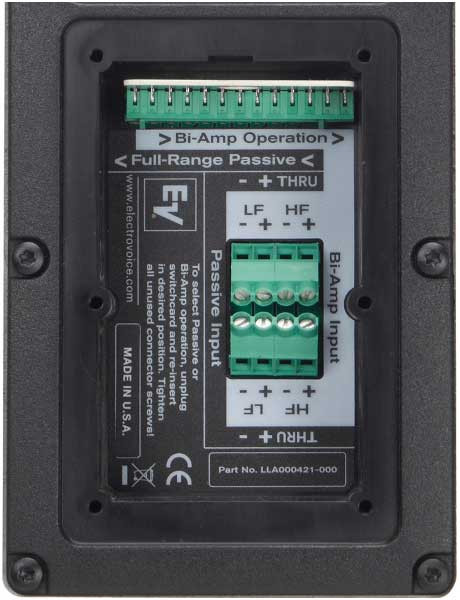

Input Connections	Euroblock
LF Transducer	15" SMX2151 driver
HF Transducer	2" ND2B diaphragm compression driver
Internal Passive Crossover Frequency	1,450 Hz
Enclosure Material	13-ply weather-resistant birch
Grille	16 ga Galvanneal, Powdercoat with screen behind
Environmental	IEC 60529 IP44
Suspension	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
Dimensions (H x W x D)	30.26" (768.6mm) x 18.5" (469.8 mm) x 18.37" (466.6 mm)
Net Weight	70.9 lbs (32.1 kg)
