Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)
By Electro-Voice

Electro-Voice EVID C44 Compact Ceiling Sound System with EVID C2.1 Satellite Speakers and EVID 40C Subwoofer (Discontinued)

Write a Review
Part #:
F.01U.310.180
Model #:
EVID C44
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Electro-Voice EVID C2.1 continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation.

Description

The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen. In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware provided), and is compatible with a variety of existing EV amplifier products, making it a great choice for contractors and end-users alike.

The series includes five sonically and aesthetically matched models which allow complete systems to be customized more effectively and more economically. Individual models may be mixed with one another for optimal results according to application, and all stand apart from other available products by providing a unique combination of superior EV sound quality, stylish design, smaller size, and simpler installation.

Features
  • Quick-install design with captive mounting tabs to fit nearly any ceiling construction
  • Four-pin Phoenix connectors on ceiling satellite speakers support pass-thru wiring
  • UL 2043/1480 ratings allow for use in signaling applications and plenum air spaces
  • Ceiling cutout templates and all mounting accessories included
  • Available in white finish

Specifications
EVID C2.1 Ceiling Satellite
Frequency Response (-10 dB) 180 Hz - 20 kHz
Power Handling 30W
Sensitivity 84 dB
Impedance 16 ohms
Maximum SPL 102 dB
Voice Coverage (H x V) 150° x 150°
Music Program Coverage (H x V) 100° x 100°
Transducer 50 mm (1.07 in)
Connectors Phoenix (4-pin)
Enclosure Steel & ABS (fire rated)
Included Accessories C-Ring
Dimensions (H x Dia) 4.7" (119 mm) x 5.3" (135 mm)
Net Weight (ea) 1.8 lbs (0.82 kg)

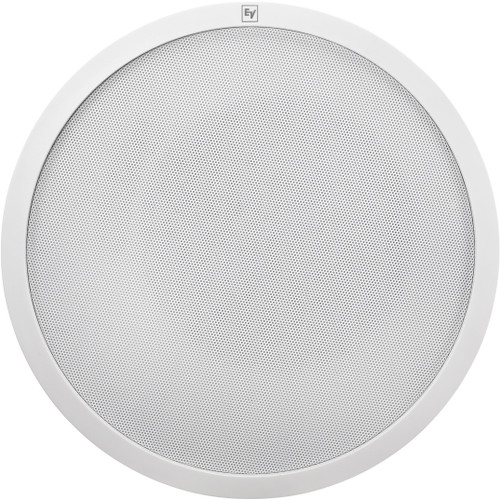

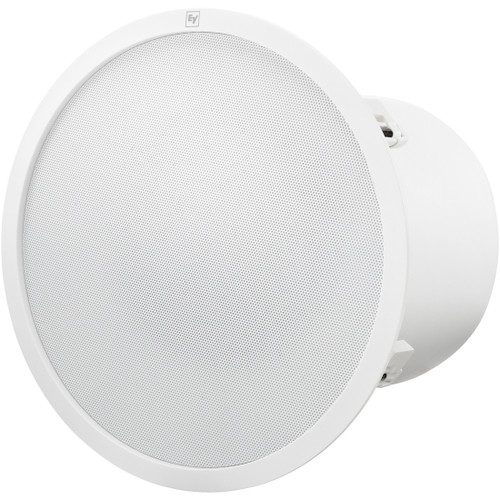

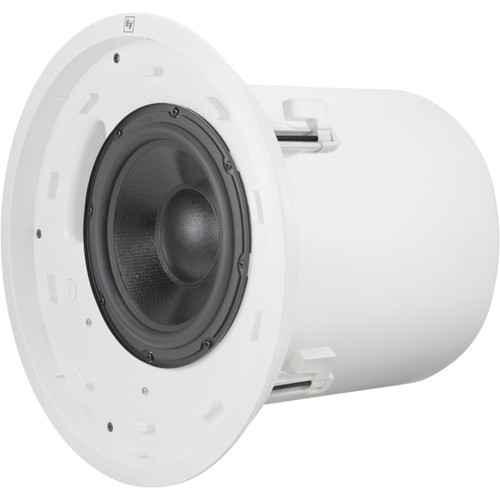

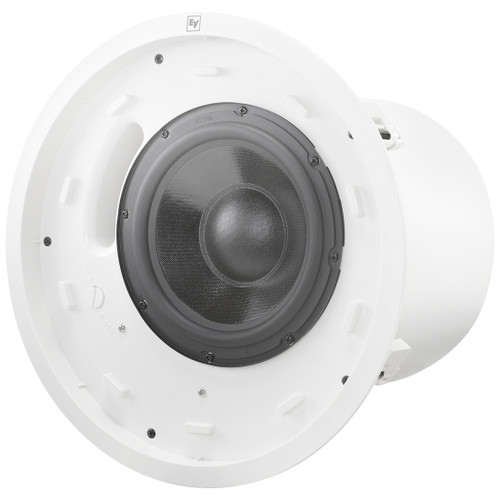

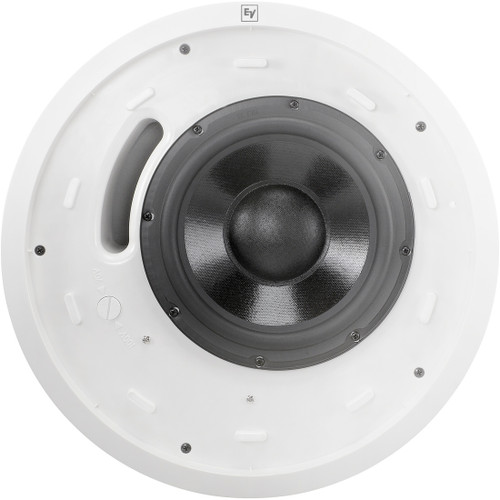

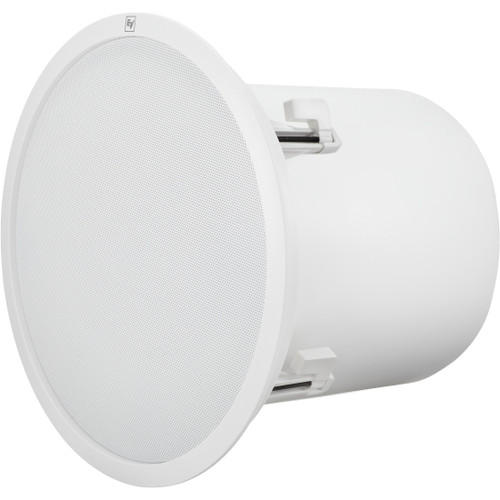

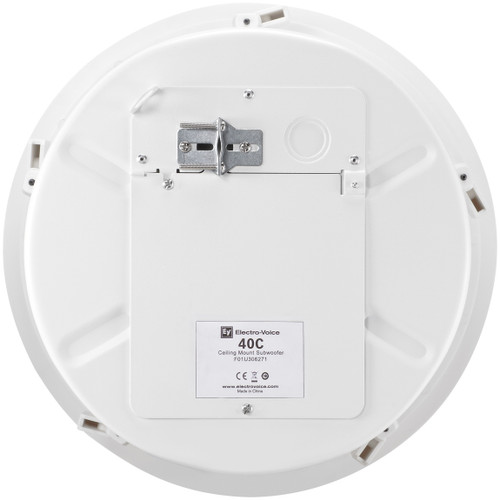

EVID 40C Ceiling Sub
Frequency Response (-10 dB) 45 Hz - 300 kHz
Power Handling 200W
Sensitivity 88 dB
Impedance Mono 4 ohm
Maximum SPL 114 dB
Voice Coverage (H x V) Omnidirectional
Music Program Coverage (H x V) Omnidirectional
Transducer 200 mm (7.87 in)
Connectors Phoenix (2-pin)
Enclosure Steel & ABS (fire rated)
Transformer Taps 100W, 50W, 25W, 12.5W
Included Accessories C-Ring, Tile Rails
Dimensions (H x Dia) 12.44" (316 mm) x 14.69" (373 mm)
Net Weight (ea) 21 lbs (9.52 kg)
Overall Shipping Weight 42 lbs (19.05 kg)
