- Description
Details
The Electro-Voice EVID Compact Sound Loudspeaker System Series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen. In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware provided), and is compatible with a variety of existing EV amplifier products, making it a great choice for contractors and end-users alike.
The series includes five sonically and aesthetically matched models which allow complete systems to be customized more effectively and more economically. Individual models may be mixed with one another for optimal results according to application, and all stand apart from other available products by providing a unique combination of superior EV sound quality, stylish design, smaller size, and simpler installation.
Easy-access signal connections with Phoenix-style connectors for quick wiring, user-friendly mode selector for stereo or mono operation, and easy-tap selector dial (supports 4/8 ohm inputs or up to 100 W / 70/100 V audio connections).- Features
Features

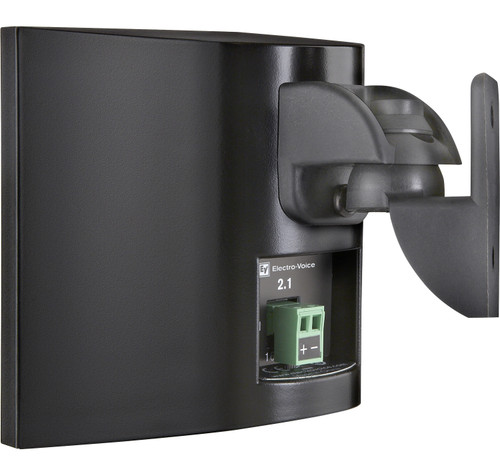

EVID 2.1 Surface-Mount Satellite:
- 2" wide-range mid/high-frequency driver designed for broad, even coverage

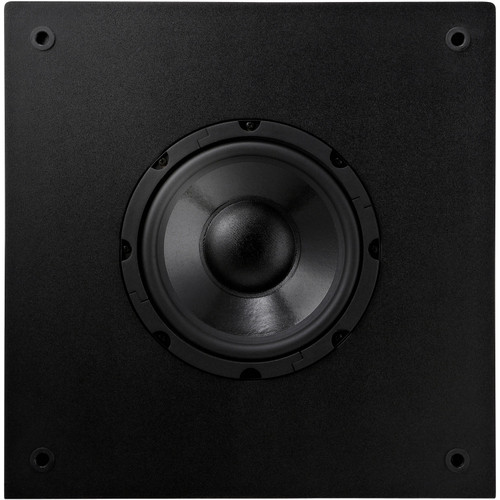

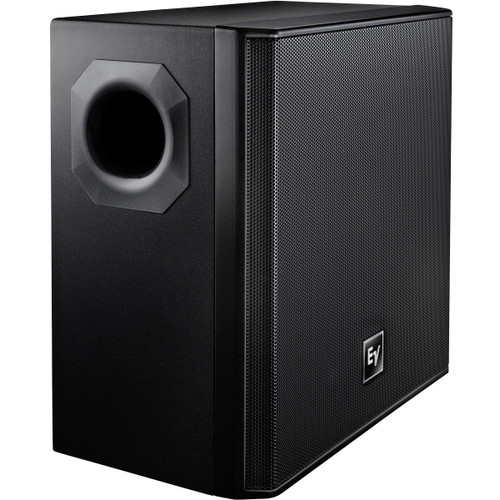

EVID 40S Surface-Mount Sub:
- High-performance EV-engineered 8" transducer with high-efficiency multi-mode audio crossover network
- Compact, high-density wood enclosure with port for extended bass response

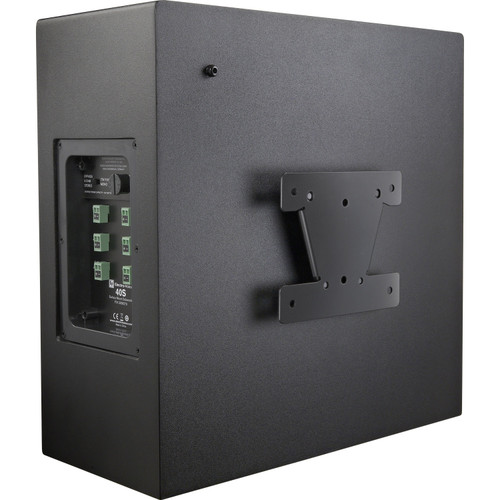

- Secure snapon speaker grille, and quick-mount slide-on bracket system

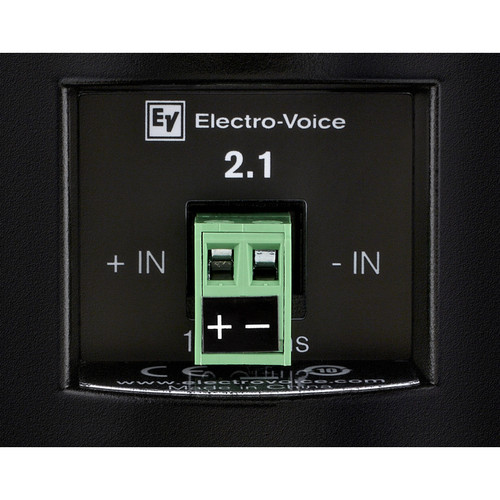

- Easy-access signal connections with Phoenix-style connectors for quick wiring

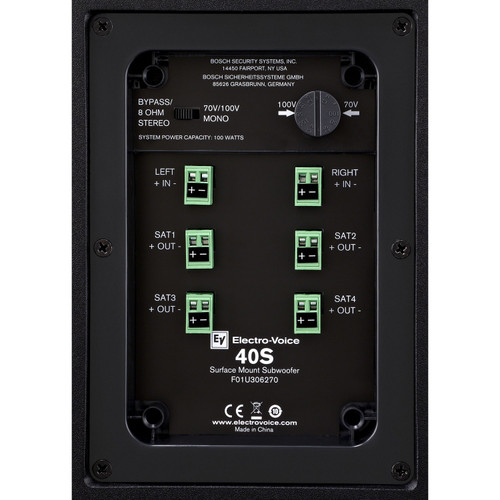

- User-friendly mode selector for stereo or mono operation
- Easy-tap selector dial (supports 4/8 ohm inputs or up to 100W/ 70/100V audio connections)
- 2" wide-range mid/high-frequency driver designed for broad, even coverage
- Specification
EVID 2.1 Surface-Mount Satellite Bracket Adjustment Range 160° x 60° Coverage, Music 100° x 100° Coverage, Voice 150° x 150° Impedance 16 ohms Included Accessories Wall bracket; hex wrench Maximum SPL 100 dB Power Handling (Continuous / Peak) 30 W Transducer 0 mm (1.97 in) Frequency Response (-10 dB) 180 Hz - 20 kHz Sensitivity 1 W/1 m 84 dB Connector Type Phoenix (2-pin) Enclosure Material ABS (fire rated) Dimensions (H x W x D) 4.5" (115 mm) x 3.5" (85 mm) x 3.7" (95 mm) EVID 40S Surface-Mount Sub Bracket Adjustment Range Fixed Coverage, Music Omnidirectional Coverage, Voice Omnidirectional Impedance Dual 8 ohm / mono 4 Ω Included Accessories Wall bracket; hex wrench Maximum SPL 114 dB Power Handling (Continuous / Peak) 200W Transducer 200 mm (7.87") Transformer Taps (Transformer Version Only) 100W, 50W, 25W Frequency Response (-10 dB) 180 Hz - 20 k Hz Sensitivity 1 W/1 m 88 dB Connector Type Phoenix (2-pin) Enclosure Material EVID 2.1: ABS (fire rated)
EVID 40S: Wood (MDF)Dimensions (H x W x D) 15.7" (400 mm) x 15.7" (400 mm) x 9" (230 mm) Net Weight 26.55 lbs (12.05 kg) - System Includes
System Includes
- (4) Electro-Voice EVID 2.1 Surface-Mount Satellite
- (1) Electro-Voice EVID 40S Surface-Mount Subwoofer
