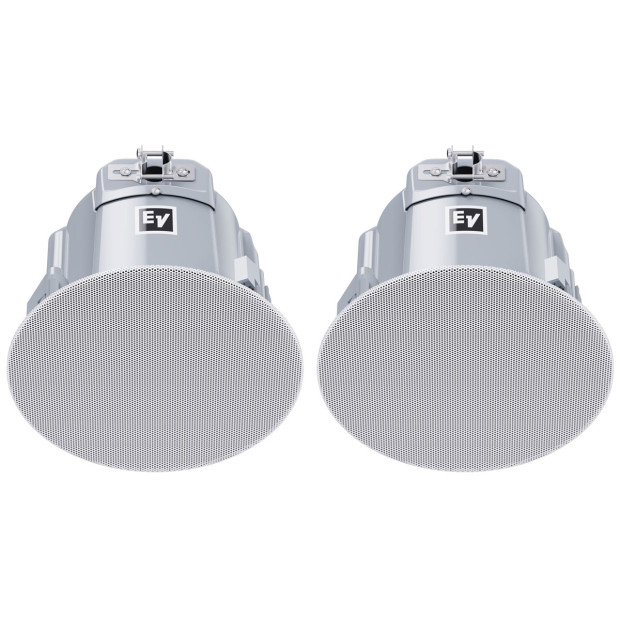

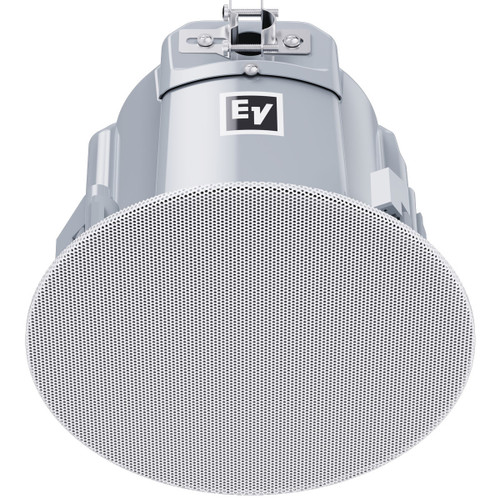

Electro-Voice EVID-EC4.2 4" 2-Way In-Ceiling Speakers - White Pair

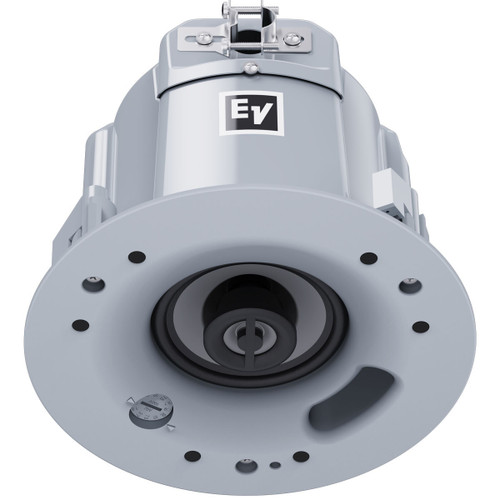

The Electro-Voice EVID-EC4.2 is a complete 4-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics.

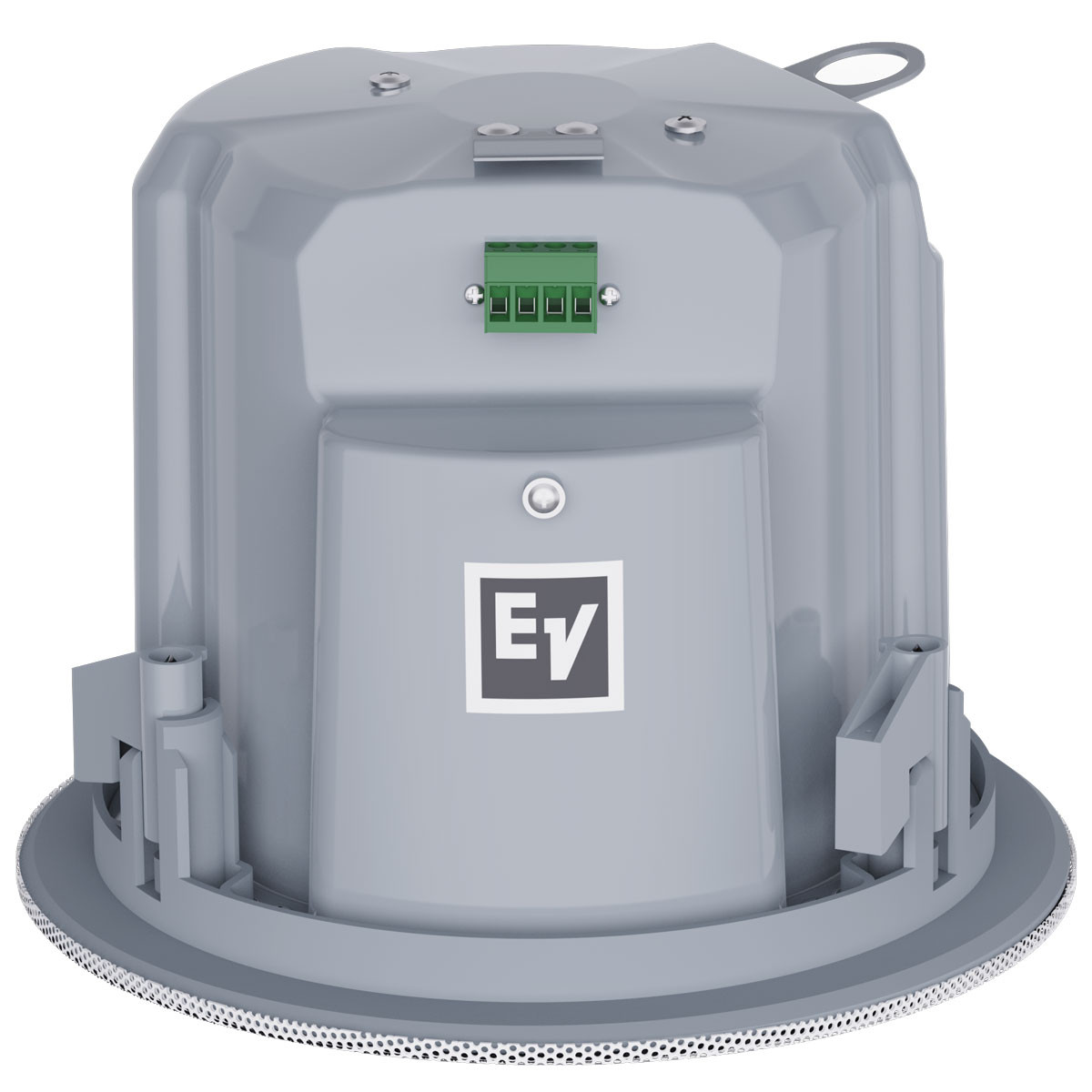

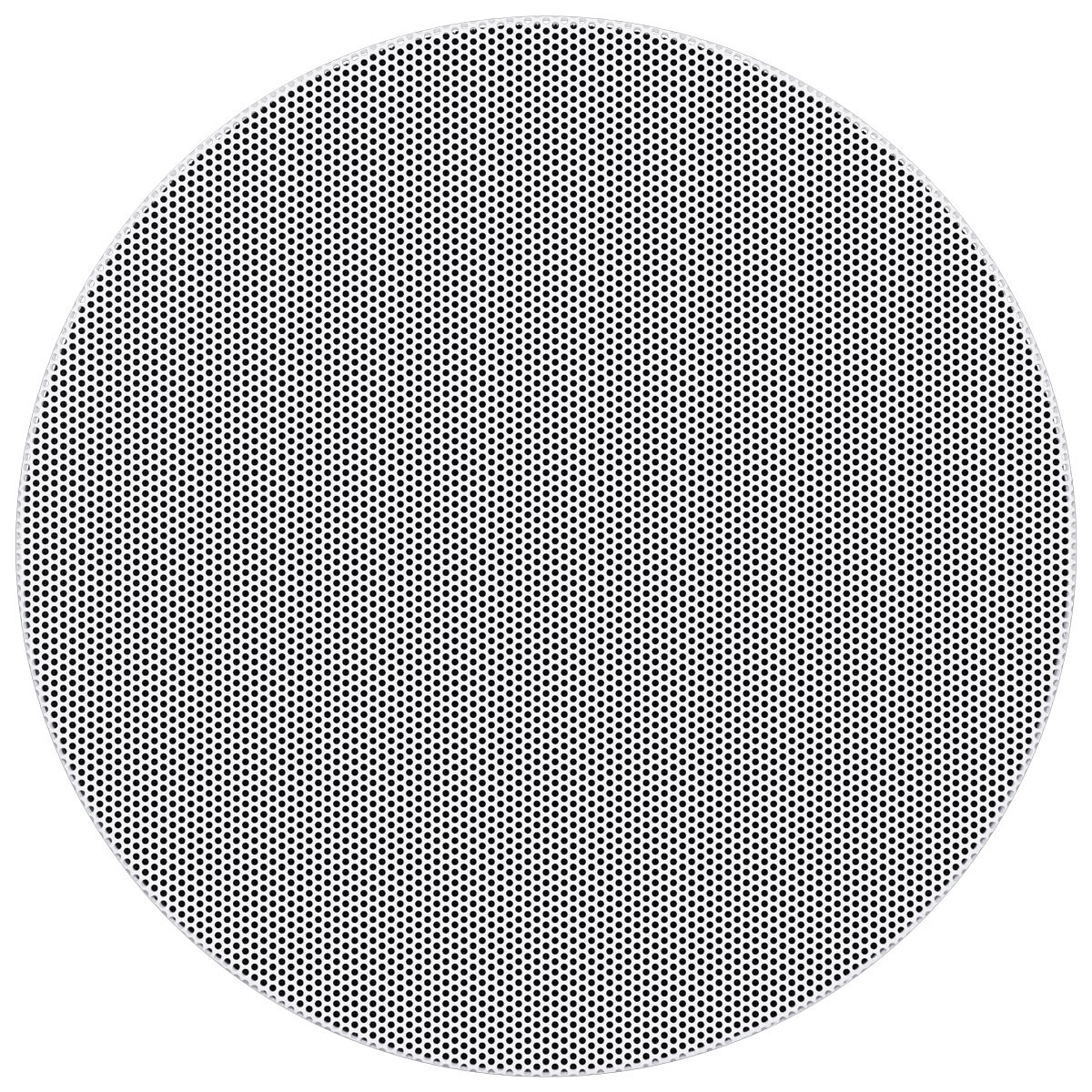

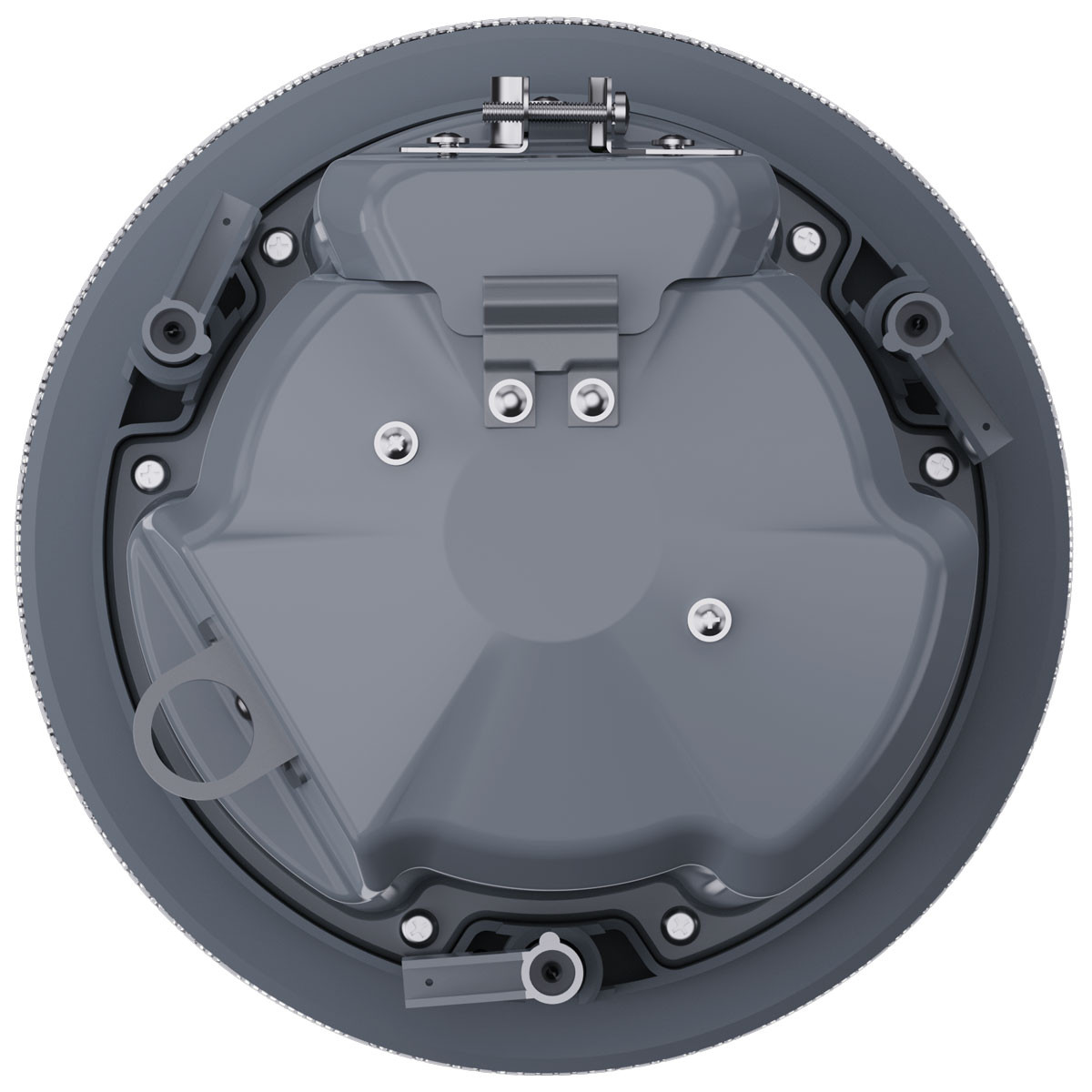

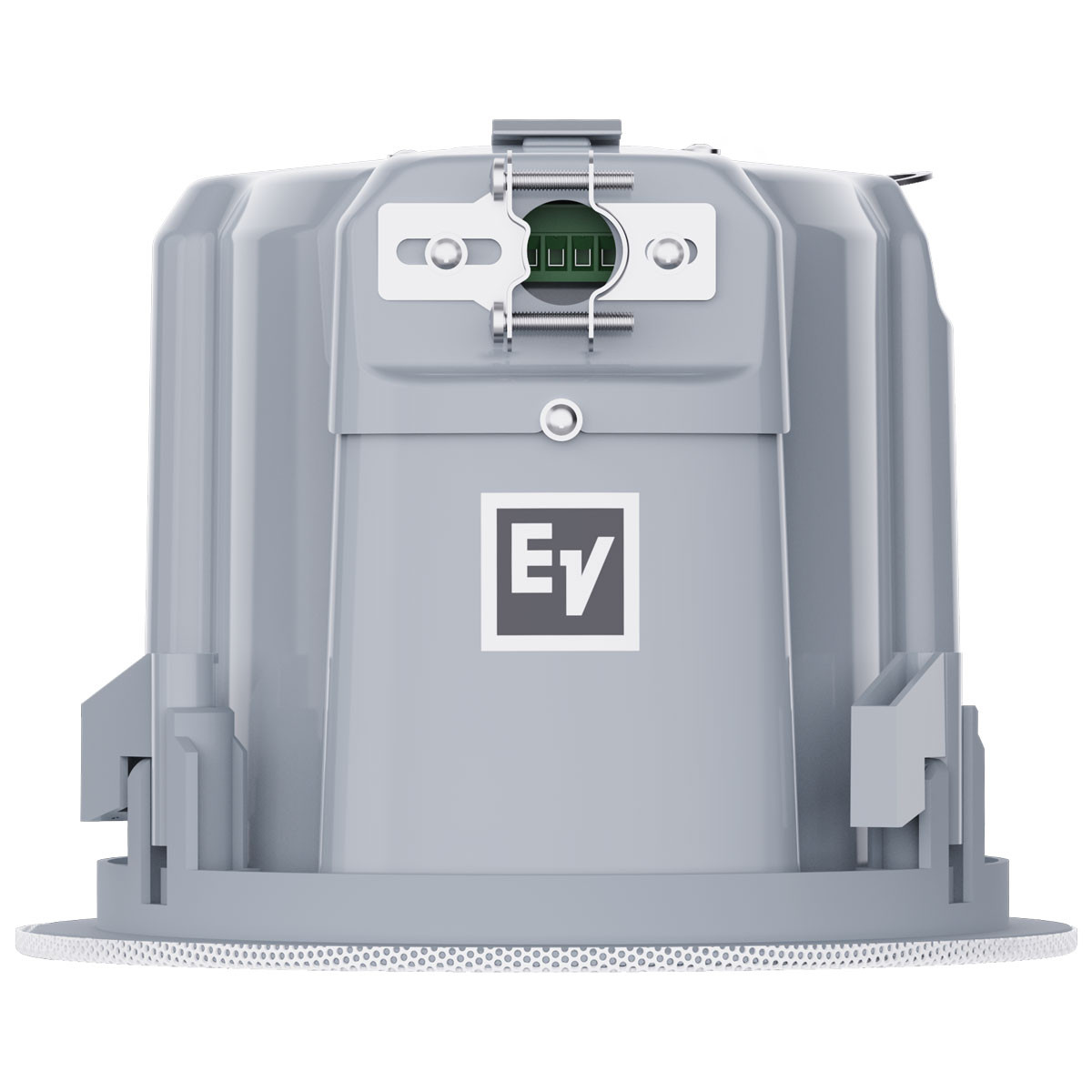

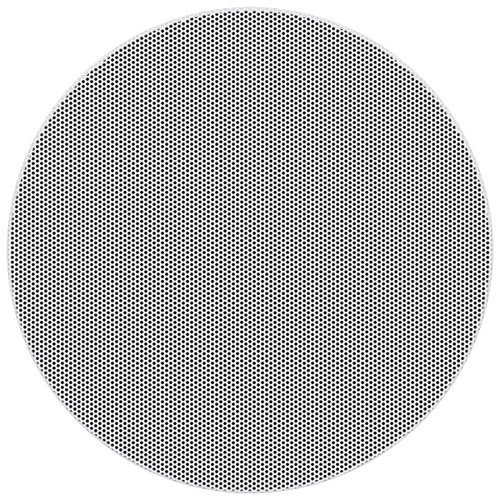

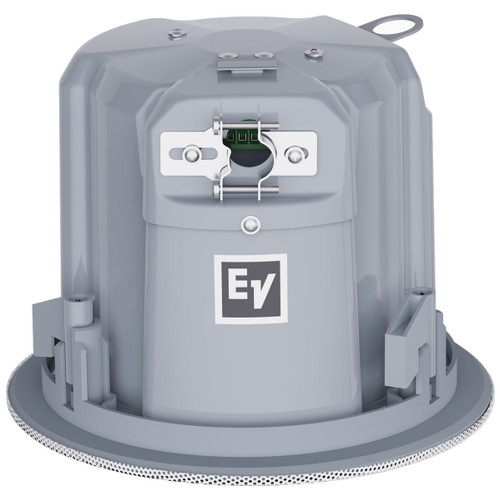

The EVID-EC4.2 utilizes a transformer that offers a selection of 1.25 (70-V only), 2.5, 5, 10 or 20 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy-gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 sq. mm of wire and provides a pass-through to additional speakers.
A mounting ring and a tile bridge are included for safe suspension of the EVID-EC4.2 ceiling systems in a drop ceiling that uses mineral wool or other fiber-based ceiling tiles.
The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.
- Features
Features
- Bezel-less design with easy-attach grille
- Front baffle wattage tap adjustment
- Includes tile bridge and C-ring for easy installation
- UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 certified
- Specification
Frequency Range (-10 dB) 80 Hz - 20,000 Hz Maximum Continuous SPL 106 dB Maximum Peak SPL 112 dB Sensitivity 89 dB SPL 1 W, 1 m Coverage Angle Conical 130° Power Handling Continuous: 50W
Peak: 200WLong-Term Power Handling Continuous: 40W
Peak: 160WNominal Impedance 8 Ω (Low Z) Recommended High Pass 90 Hz Transformer Taps 70V: 20 W; 10 W; 5 W; 2.5 W; 1.25 W
100V: 20 W; 10 W; 5 W; 2.5 WLF Driver 4" HF Driver .75" Material Steel Grille Material Powder Coated Steel Color RAL 9003 Signal white Connector Type 4-pin Euroblock Input + Pass through Wire Size 12 AWG (maximum) Wire Diameter 3.3 sq. mm (maximum) Mounting Cutout 7.20" (183 mm) Mounting Depth 6.2" (158 mm) Ceiling Thickness 0.5 - 1.5" (12.5 - 38 mm) Safety Agency Ratings UL 1480A, safe for use in airhandling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62368-1 IP Rating IP34 Dimensions (Dia x D) 8.4" (212 mm) x 6.5" (163.4 mm) Weight (ea) 5.7 lbs (2.6 kg) - Documents
Documents
- In The Box
In The Box
- (2) Electro-Voice EVID-EC4.2 Ceiling Speakers
- (2) Loudspeaker Connection Covers - Installed
- (2) Magnetic Grilles
- (4) Ceiling Tile Rails
- (2) C-Rings
- (4) Screws
- (1) Cutout Template
- (2) Paint Covers
- Quick Installation Guide
