Electro-Voice EVID-EC3.1 3" Full-Range 70/100V In-Ceiling Speakers - White Pair

Description

Details

Electro-Voice EVID-EC3.1 3" Full-Range In-Ceiling Speakers - White Pair

The Electro-Voice EVID-EC3.1 is a complete 3-inch coaxial loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics.

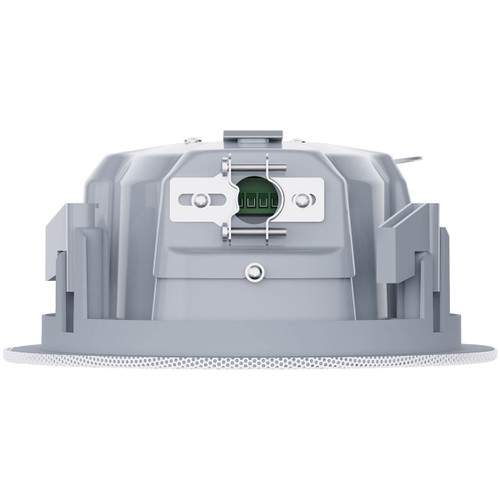

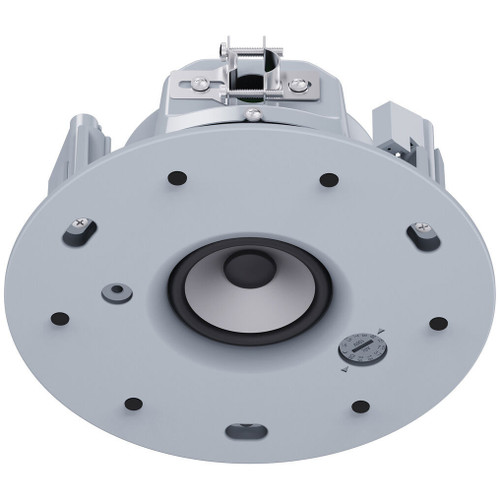

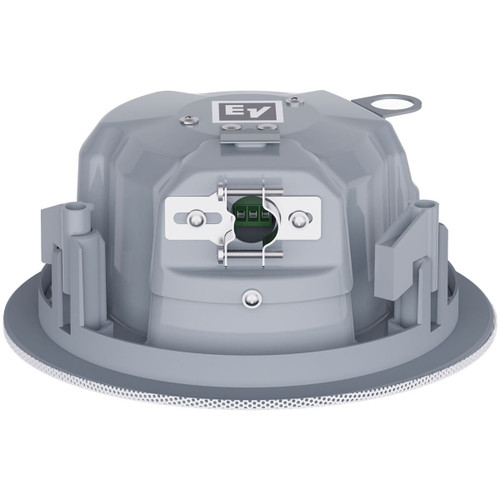

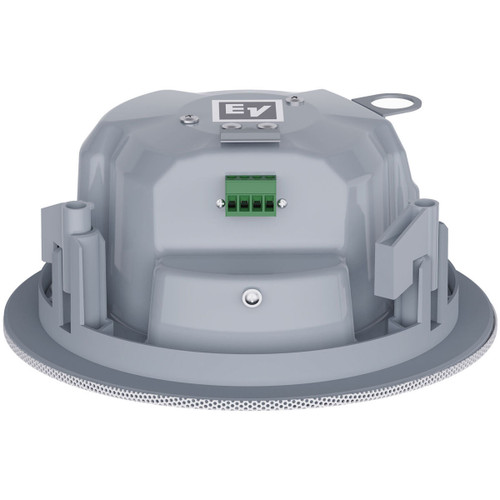

The EVID-EC3.1 utilizes a transformer that offers a selection of 0.9 (70-V only), 1.88, 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0-rated ABS. The rear enclosure is constructed from heavy-gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 sq. mm of wire and provides a through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC3.1 ceiling systems in a drop ceiling that uses mineral wool or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Features

Features

Bezel-less design with easy-attach grille
Front baffle wattage tap adjustment
Includes tile bridge and C-ring for easy installation
UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 certified

Specification

Frequency Range (-10 dB)	90 Hz - 19,000 Hz
Maximum Continuous SPL	100 dB
Maximum Peak SPL	106 dB
Sensitivity	84 dB SPL 1 W, 1 m
Coverage Angle Conical	135°
Power Handling	Continuous: 40W Peak: 160W
Long-Term Power Handling	Continuous: 25W Peak: 25W
Nominal Impedance	8 Ω (Low Z)
Recommended High Pass	110 Hz
Transformer Taps	70V: 15 W; 7.5 W; 3.75 W; 1.88 W; 0.9 W 100V: 15 W; 7.5 W; 3.75 W; 1.88 W
LF Driver	3"
Material	Steel
Grille Material	Powder Coated Steel
Color	RAL 9003 Signal white
Wire Size	12 AWG (maximum)
Wire Diameter	3.3 sq. mm (maximum)
Mounting Depth	3.7" (93 mm)
Ceiling Thickness	0.5 - 1.5" (12.5 - 38 mm)
Safety Agency Ratings	UL 1480A, safe for use in airhandling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62368-1
Dimensions (Dia x D)	8.4" (212 mm) x 3.9" (98.3 mm)
Weight (ea)	4.6 lbs (2.1 kg)
