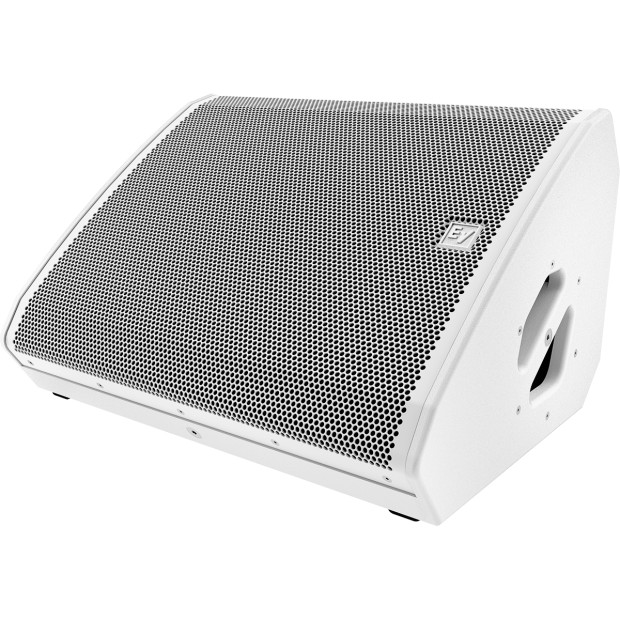

The MFX-15MC-W 15" 2-way multi-function coaxial monitor delivers professional-grade sound in a versatile, compact design. Perfect for live stage monitoring, short-throw reinforcement, front and side fill, or permanent installations, it combines high output, clarity, and precise coverage. Its low-profile, ergonomic white enclosure maximizes audience sightlines while housing a 15" coaxial driver that produces powerful, accurate sound.
Equipped with a rotatable coaxial driver and horn assembly, the MFX-15MC-W provides narrow horizontal coverage when used as a monitor and wide coverage when oriented vertically for short-throw applications. Its constant-directivity waveguide ensures even midrange coverage, excellent gain-before-feedback performance, and structural support for the grille. The rear recessed input panel features NL4 connectors, loop-through capability, and a passive/bi-amp switch, with factory DSP presets optimized for various applications.
Built for reliability and flexibility, the MFX-15MC-W features an integrated pole cup, four M10 suspension points, and compatibility with truss clamps, stand adapters, or custom U-brackets for wall or flown installations. Lightweight yet rugged, it is ideal for touring, rental, or permanent installation environments where durability, professional sound, and adaptability are essential.
| Frequency Response (-3 dB) | 52 Hz - 18 kHz |
|---|---|
| Frequency Range (-10 dB) | 45 Hz - 19 kHz |
| Rotatable Coverage | 60° x 40° FOH, 40° x 60° Monitor |
| Rec. High-Pass Frequency | Use factory preset |
| Axial Sensitivity | 97 dB (1W/1m) |
| Max. SPL | 136 dB |
| Power Handling | 500W (Continuous), 3500W (Peak) |
| Nominal Impedance | 8Ω |
| Transducer | CXCA3158-1CA |
| Connectors | Neutrik NL4 input with NL4 pass through |
| Enclosure | 12-18 mm Baltic birch plywood with EVCoat |
| Monitor Angles | 35° and 55° |
| Grille | 1.5 mm zinc plated steel with corrosion resistant coating |
| Handles | Two with integrated cup for standard 35 mm pole |
| Suspension | Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories |
| Color | White |
| Dimensions (H x W x D) | 13.4" (339 mm) x 23.6" (600 mm) x 19.7" (500 mm) |
| Weight | 51 lbs (23 kg) |
| Shipping Weight | 55.6 lbs (25.2 kg) |
